Big Daishowa Seiki

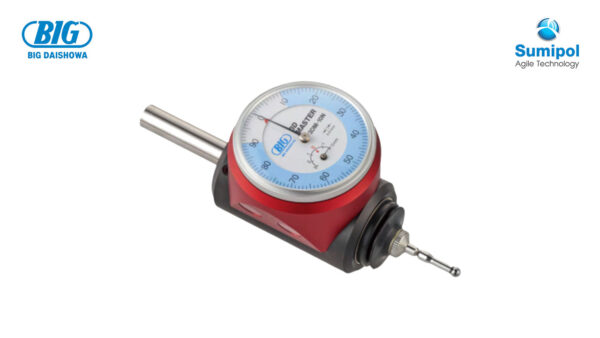

3D Master Red – Touch Probe & Edge Finder

Check the reference point in XYZ directions with a large dial gauge. Easy to read with a large dial gauge.

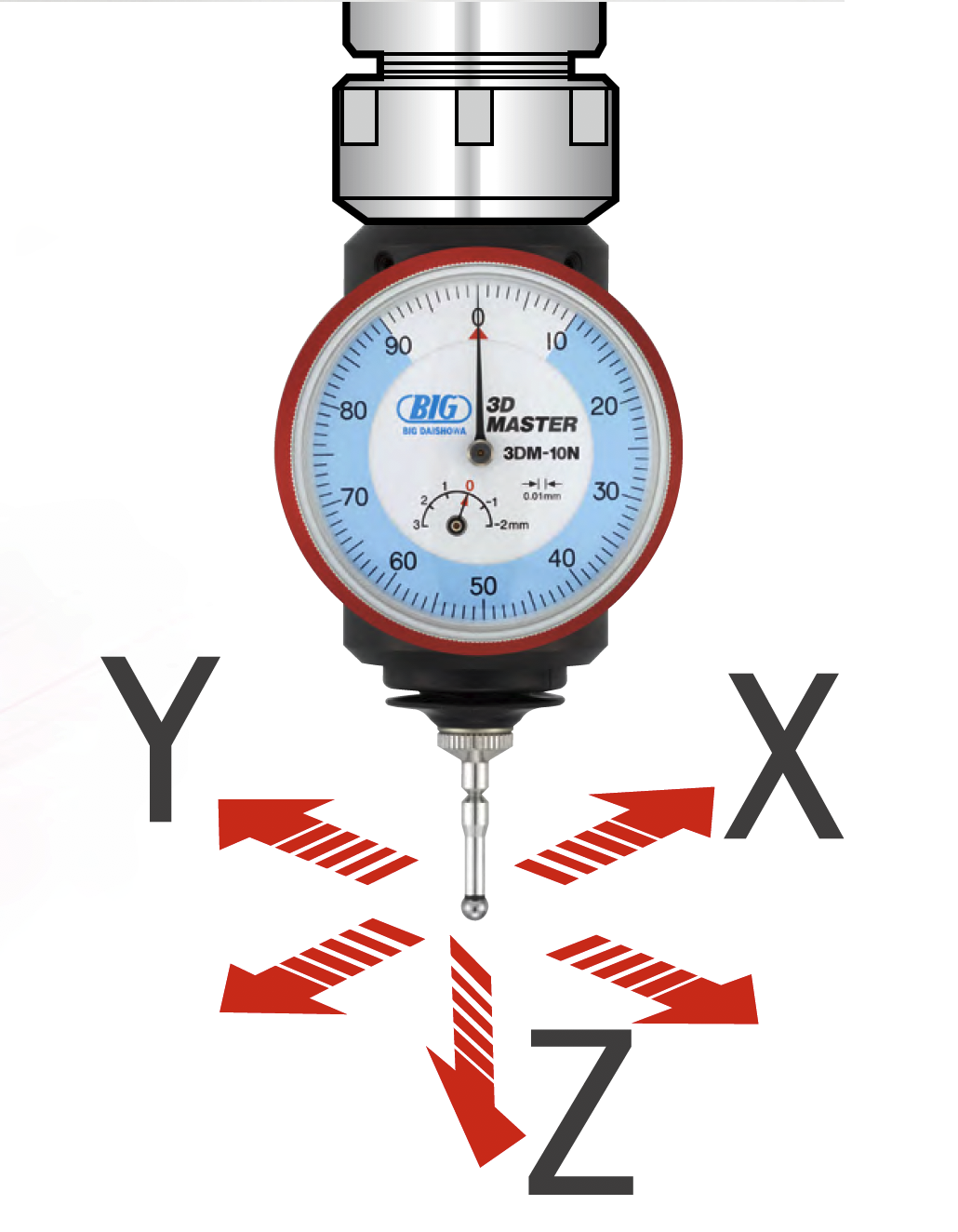

  • XYZ direction measurement possible with a single tool
  • Can also measure non-conductive workpieces
  • Compact design that prevents interference with workpieces
  • Calculation of the stylus ball radius not required.

The position where the ball comes into contact with the workpiece and moves radially is the center of the spindle. (Position “0” for both long hand and short hand)

แบบสอบถาม

Product Name : 3D Master Red – Touch Probe & Edge Finder
