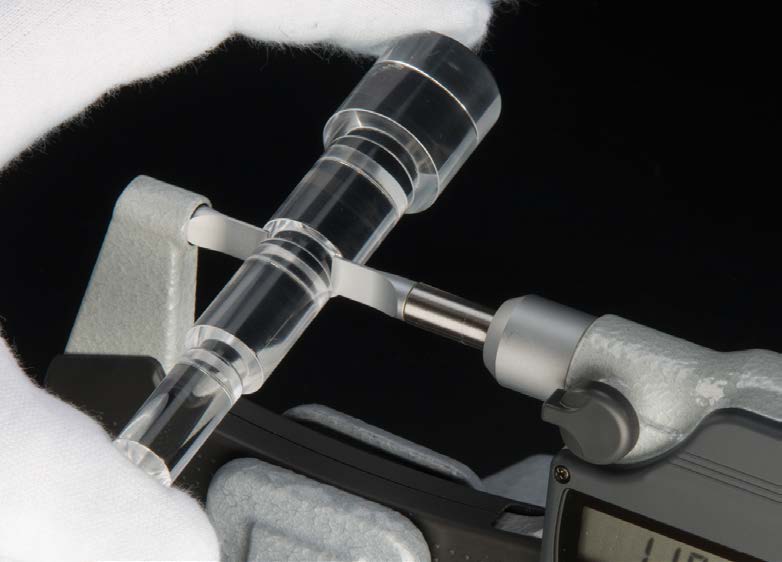

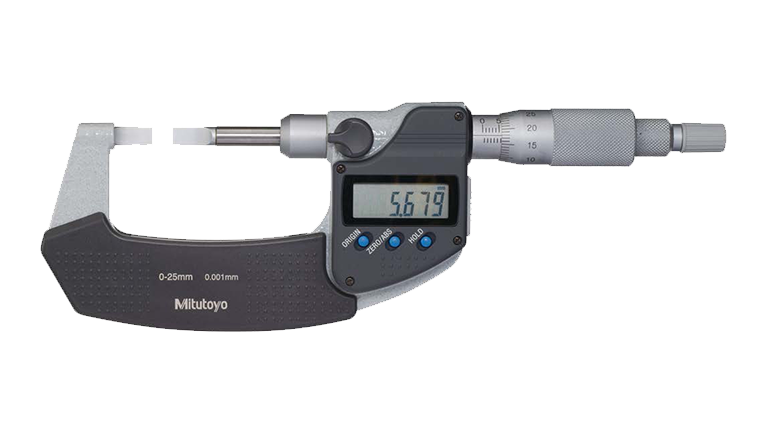

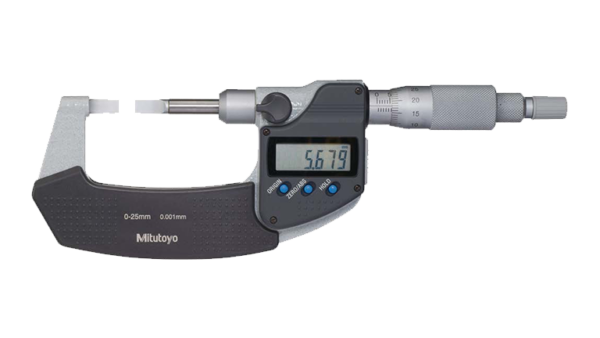

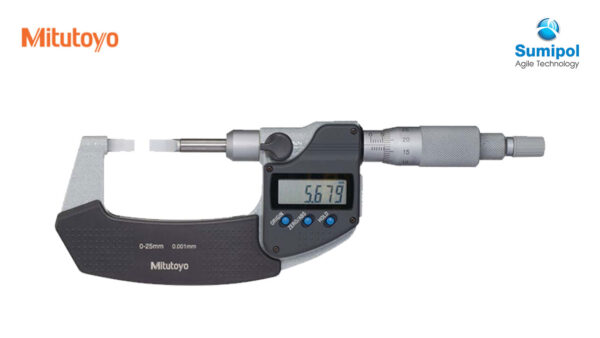

Technical Data
- Battery for series 422
SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
- Battery life:
Approx. 2.4 years under normal use (for series 422-2XX, 3XX)
Approx. 5 year under normal use (for series 422-4XX)
- Length standard:
Electromagnetic rotary sensor (for series 422-2XX, 3XX)
Electrostatic capacity absolute sensor (for series 422-4XX)
- Standard accessories:
Reference bar, 1 pc. (except for measuring range 0 to 25 mm/0 to 30 mm(0 to 1 in/0 to 1.2 in) models)
Spanner (301336), 1 pc. (for series 122-1XX, 422-2XX, 3XX)
Optional Accessories
- Connecting cables for Digimatic models
1 m: 05CZA662
2 m: 05CZA663
- USB Input Tool Direct
USB-ITN-B (2 m): 06AFM380B
- Connecting for 422-230-30 to
422-271-30, 422-330-30 to 422-371-30
- U-WAVE-T dedicated connection cable (for series 422)
160 mm: 02AZD790B
For foot switch: 02AZE140B
Wireless Data Output* U-WAVEfit
- U-WAVE-TM
264-622 (IP67 type)
264-623 (Buzzer type)
- U-WAVE-TMB Transmitter
Mitutoyo Bluetooth® U-WAVE
264-626 (IP type)
264-627 (Buzzer type)
- Connecting unit for U-WAVE-TM/TMB
02AZF310 (IP67/buzzer type common specification)
* Only series 422 (except for Quickmike type) can be attached.
Quickmike
Provides a speedy spindle feed of 10 mm per thimble rotation which enables widely differently sized features to be measured quickly.
SPECIFICATIONS
Metric : Digimatic (LCD)
| Order No. |
Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
Parallelism (µm) |
Remark |
| 422-230-30 |
0-25 |
0.001 |
±3 |
3 |
Type A |
| 422-231-30 |
25-50 |
| 422-232-30 |
50-75 |
| 422-233-30 |
75-100 |
±4 |
4 |
| 422-260-30 |
0-25 |
±3 |
3 |
Type B |
| 422-261-30 |
25-50 |
| 422-270-30 |
0-25 |
Type C |
| 422-271-30 |
Type D |
Inch/Metric : Digimatic (LCD)
| Order No. |
Range (in) |
Resolution |
Maximum permissible error JMPE (in) |
Parallelism (in) |
Remark |
| 422-230-30 |
0-1 |
0.00005 in/0.001 mm |
±0.00015 |
0.00015 |
Type A |
| 422-231-30 |
1-2 |
| 422-232-30 |
2-3 |
| 422-233-30 |
3-4 |
±0.0002 |
0.0002 |
| 422-260-30 |
0-1 |
±0.00015 |
0.00015 |
Type B |
| 422-261-30 |
1-2 |
| 422-270-30 |
0-1 |
Type C |
| 422-271-30 |
Type D |
Metric : Quickmike type Digimatic (LCD)
| Order No. |
Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
Parallelism (µm) |
Remark |
| 422-411-20 |
0 – 30 |
0.001 |
±3 |
3 |
Type A |
| 422-412-20 |
25 – 55 |
Inch/Metric : Quickmike type Digimatic (LCD)
| Order No. |
Range (in) |
Resolution |
Maximum permissible error JMPE (in) |
Parallelism (in) |
Remark |
| 422-421-20 |
0-1.2 |
0.00005 in/0.001 mm |
±0.00015 |
0.00015 |
Type A |
Metric
| Order No. |
Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
Parallelism (µm) |
Remark |
| Analog |
| 122-101-10 |
0-25 |
0.01 |
±3 |
3 |
Type A |
| 122-102-10 |
25-50 |
| 122-103-10 |
50-75 |
| 122-104-10 |
75-100 |
±4 |
4 |
| 122-105-10 |
100-125 |
5 |
| 122-106-10 |
125-150 |
| 122-107-10 |
150-175 |
±5 |
| 122-108-10 |
175-200 |
| 122-109-10 |
200-225 |
6 |
| 122-110-10 |
225-250 |
±6 |
| 122-115-10 |
250-275 |
| 122-116-10 |
275-300 |
| 122-111-10 |
0-25 |
±3 |
3 |
Type B |
| 122-112-10 |
25-50 |
| Analog (With carbide tip) |
| 122-161-10 |
0-25 |
0.01 |
±3 |
3 |
Type C |
| 122-162-10 |
25-50 |
| 122-141-10 |
0-25 |
Type D |
| 122-142-10 |
25-50 |
Note: A heat shield is provided with Digimatic (LCD) and 122-101-10, 122-111-10, 122-125-10,
122-135-10, 122-141-10, 122-151-10 as standard.
Inch : Analog
| Order No. |
Range (in) |
Resolution |
Maximum permissible error JMPE (in) |
Parallelism (in) |
Remark |
| 122-125-10 |
0-1 |
0.0001 |
±0.00015 |
0.00015 |
Type A |
| 122-126-10 |
1-2 |
| 122-127-10 |
2-3 |
| 122-128-10 |
3-4 |
±0.0002 |
0.0002 |
| 122-135-10 |
0-1 |
±0.00015 |
0.00015 |
Type B |
| 122-151-10 |
Type D |
Note: A heat shield is provided with Digimatic (LCD) and 122-125-10, 122-135-10,
122-151-10 as standard.
