Carbide Flat Drill – ADF

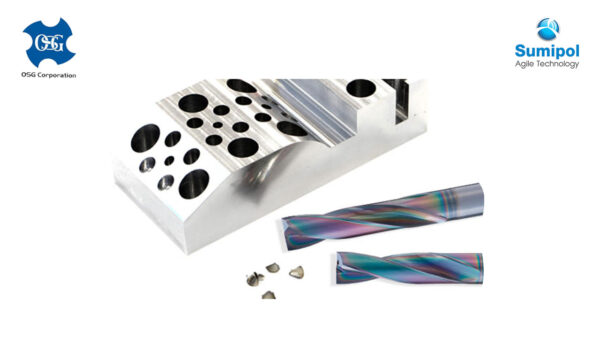

In addition to the newly added oil hole configuration compatible for stainless steel, the ADF-2D lineup has been further expanded to accommodate small diameter drilling in 60 sizes! Machining a flat hole traditionally required the use of an end mill and a drill. The ADF enables one-step drilling to simplify machining time and tool management. Suitable for a wide variety of drilling applications including inclined surfaces, curved surfaces, counterboring, eccentric holes, thin plates, etc.

สั่งซื้อ
ดาวน์โหลดแค็ตตาล็อก
หมวดหมู่: ,

One drill does it all – suitable for a wide variety of applications.

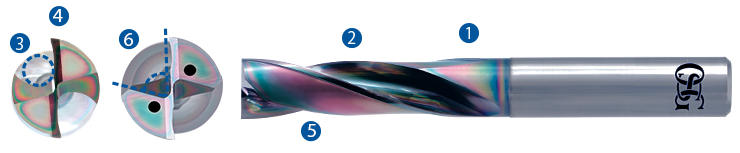

Features



  1. One drill does it all – suitable for a wide variety of applications.
  2. EgiAs coating for exceptional wear resistance and toughness.
  3. Wide chip room for smooth chip evacuation.
  4. Unique end cut geometry reduces cutting force to enable stable machining.
  5. 20°helical grooves with high rigidity.

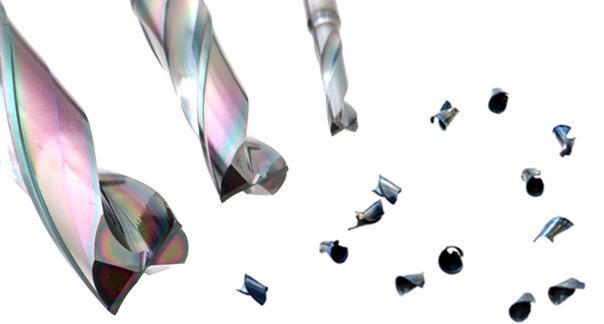

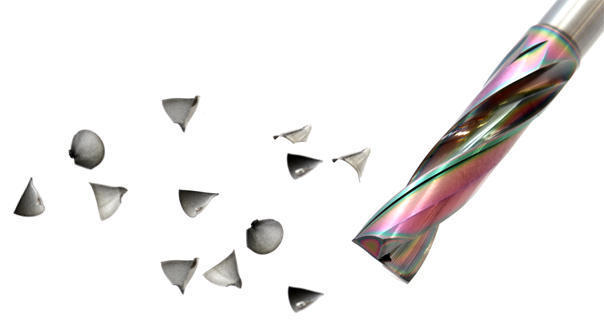

  6. Sharp gash angle produces chips with fine curl.

Applications

ADF-2D : Low Carbon Steel・Mild Steel・Carbon Steel ・Alloy Steel・Plastic Mold Steel ・Stainless Steel（Dc<φ2)・Special Alloy Steel・Hardened Steel・Prehardened Steel・Cast Iron・Ductile Cast Iron・Aluminum・Aluminum Alloy Casting

ADFLS-2D : Low Carbon Steel・Mild Steel・Carbon Steel ・Alloy Steel・Plastic Mold Steel ・Special Alloy Steel・Hardened Steel・Prehardened Steel・Cast Iron・Ductile Cast Iron・Aluminum・Aluminum Alloy Casting

ADFO-3D : Low Carbon Steel・Mild Steel・Carbon Steel ・Alloy Steel・Plastic Mold Steel・Stainless Steel・Special Alloy Steel・Hardened Steel・Prehardened Steel・Cast Iron・Ductile Cast Iron・Aluminum・Aluminum Alloy Casting

Lineup

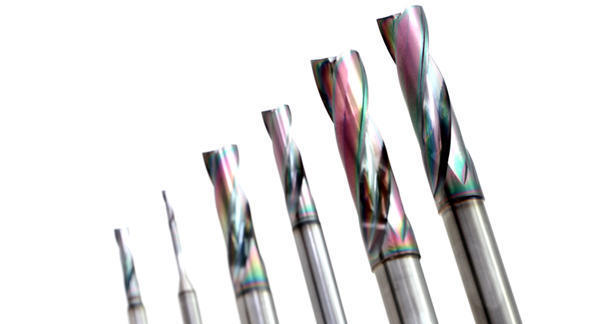

  • Carbide Flat Drill (ADF-2D)　∅0.2～∅20
    ADF-2D expanded with small diameter ∅0.2-1.95mm in 60 sizes
  • Carbide Flat Drill Long Shank type (ADFLS-2D)　∅3～∅20

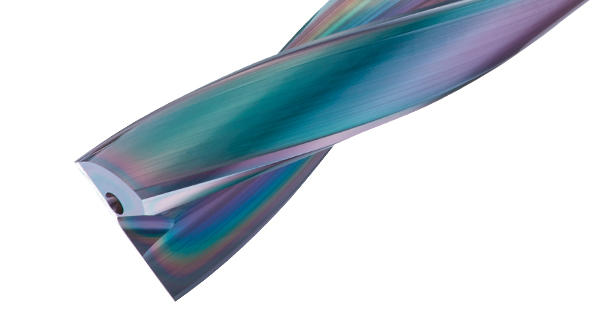

  • Carbide Flat Drill with Oil Hole (ADFO-3D) ∅3～∅20



Data

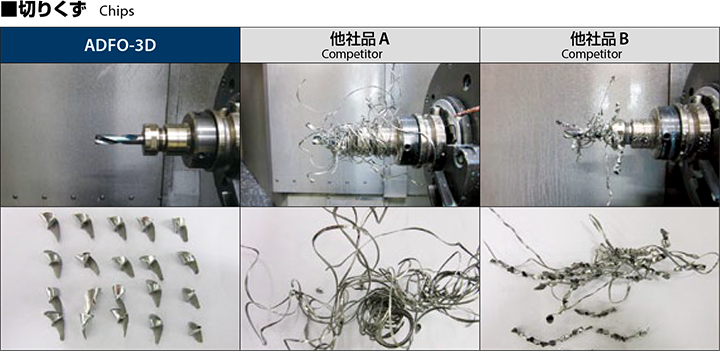

Superior performance even in stainless steel
