Niigata Seiki

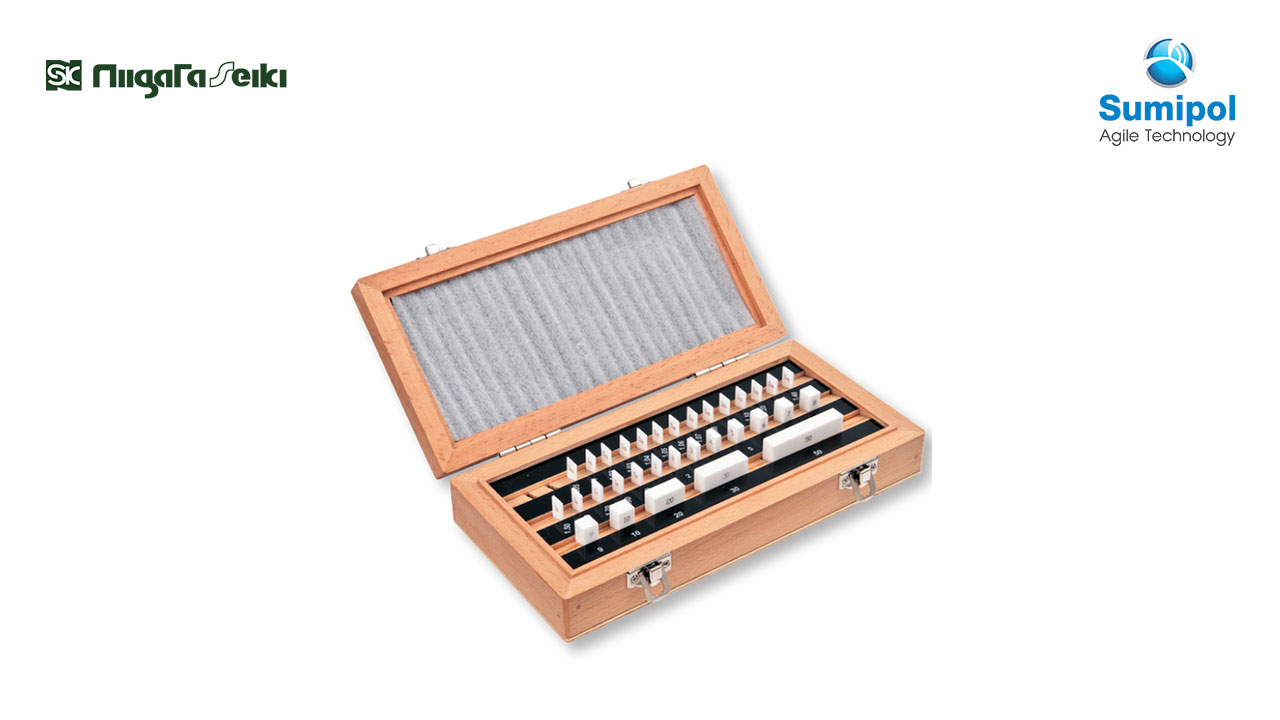

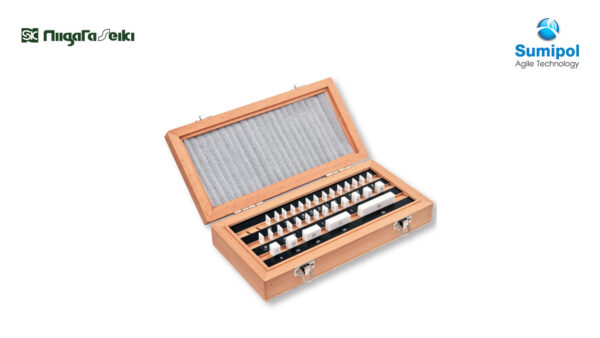

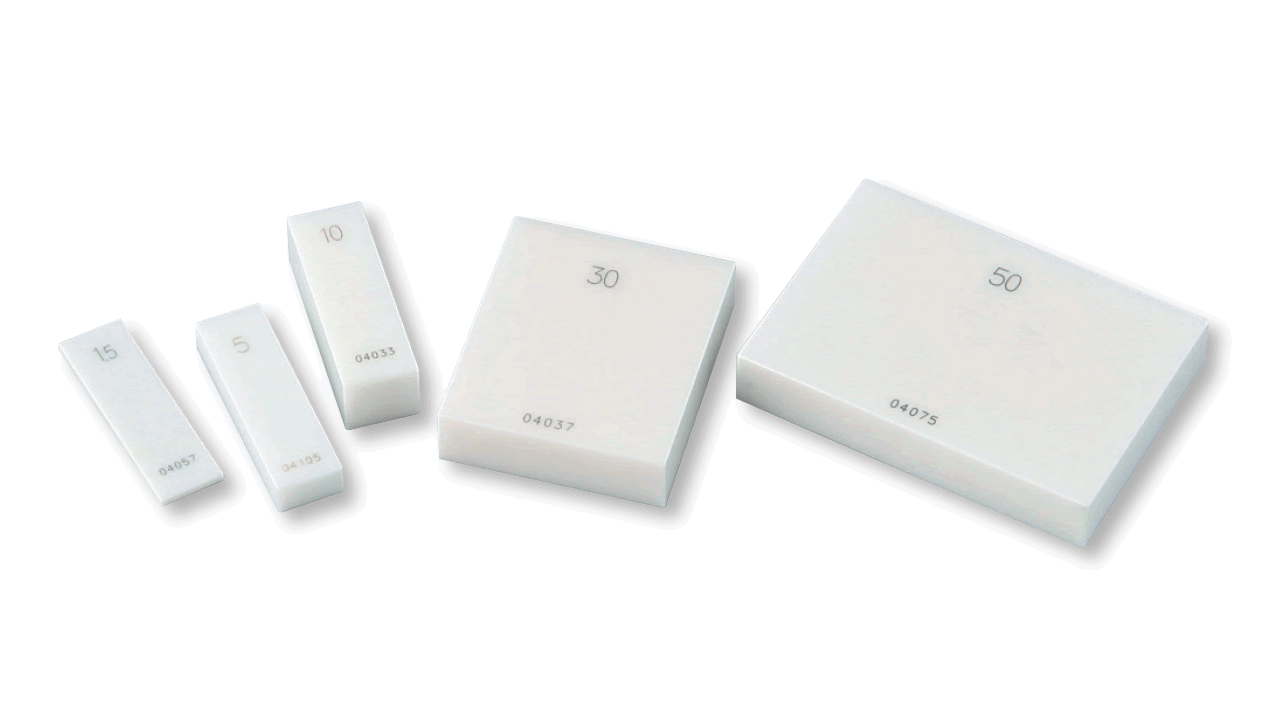

CERAMIC BLOCK GAUGE SET( GRADE 0)

Free from rust and corrosion, and easy maintenance

USE
● As reference standard and for general measurement work
● As spacer and prefinished sub-assembly components

MATERIAL
● Ceramic( Zirconia)

FEATURES
● Abrasion resistant
● Free from rust and corrosion, and easy maintenance
● Ceramic material is less susceptible to abrasion and aged deterioration than steel
● Non-magnetic
● Conforms to JIS( Grade 0)
● Provided with inspection report

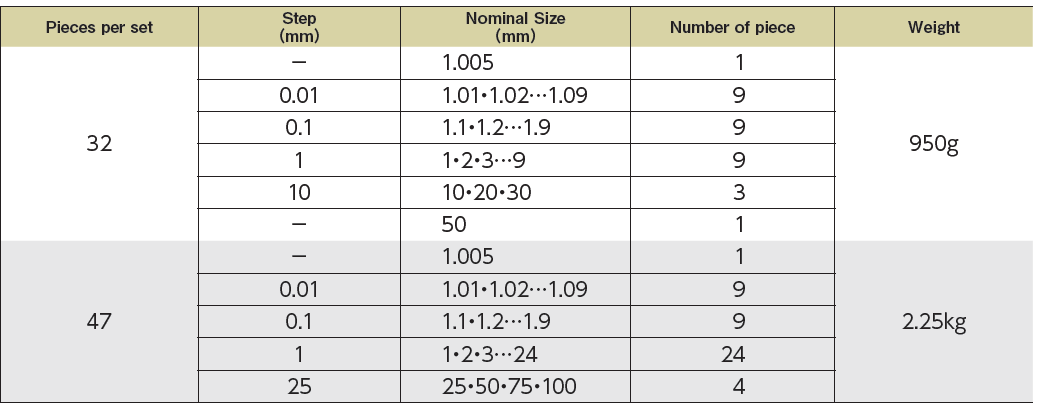

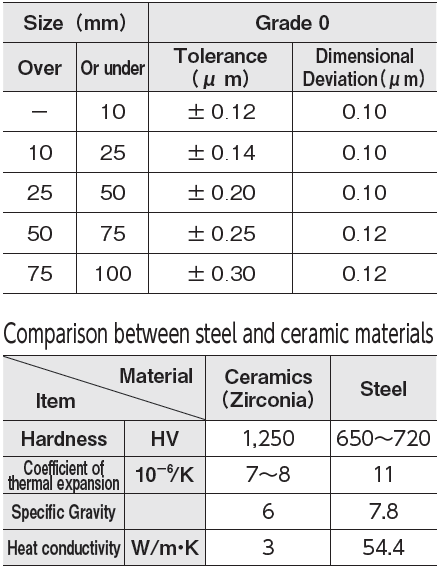

SPECIFICATIONS
● Section size: 10mm or under: 30(0〜−0.3)×9(−0.05〜−0.2)mm
Over 10mm: 35(0〜−0.3)×9(−0.05〜−0.2)mm
● Coefficient of thermal expansion: ( 9.5±1)×10-6/K
※Calibration and custom size production are NOT available

แบบสอบถาม

Product Name : CERAMIC BLOCK GAUGE SET( GRADE 0)
