Mitutoyo

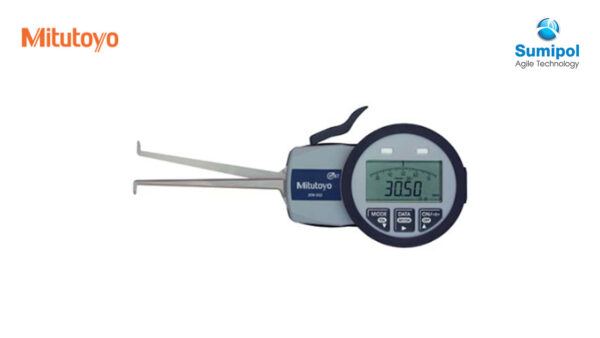

Digimatic Caliper Gage – Internal Tube Thickness

Series 209

  • Versatile ID measuring gages สำหรับเส้นผ่านศูนย์กลางรู, ความหนาของร่อง, ความหนาของท่อและการวัดขนาดชิ้นงานที่ยากต่อการเข้าถึง
  • Digimatic Caliper Gages ให้การอ่าน LCD ที่ปราศจากข้อผิดพลาด (error-free)  ตลอดจน Data output สำหรับ SPC analysis.

Technical Data
Accuracy: Refer to the list of specifications.
Resolution: .001”, .0005”, or .0002” 0.01mm, 0.02mm, or 0.005mm
Display: LCD Analog / Digital
Power Supply: AA Battery (1pc)
Battery life: Approx. 350 hours
Measuring Force: 0.7 – 1.7N
Dust/Water protection level: IP63
Provided with inspection certificate.


Function
Zeroset, Preset, Auto power OFF, Inch/Metric, conversion
Data hold, Max/Min value holding, Data output


Optional Accessories
KPL1961-09: SPC adapter

Order NoRangeResolutionAccuracyMeasuring ContactMass
209-550.10-.49in
2.5-12.5mm
.0002in
0.005mm
.0008in
0.015mm
Chisel .0039”/0.1mm Radius225g
209-551.20-.59in
5-15mm
.0002in
0.005mm
.0008in
0.015mm
Ball .024”/0.6mm dia.230g
209-552.39-1.18in
10-30mm
.0005in
0.01mm
.0015in
0.06mm
Ball .039”/1.0mm dia.300g
209-553.79-1.58in
20-40mm
.0005in
0.01mm
.0015in
0.05mm
Ball .039”/1.0mm dia.300g
209-5541.18-1.97in
30-50mm
.0005in
0.01mm
.0015in
0.04mm
Ball .039”/1.0mm dia.300g
209-5551.58-2.36in
40-60mm
.0005in
0.01mm
.0015in
0.03mm
Ball .039”/1.0mm dia.300g
209-5561.97-2.76in
50-70mm
.0005in
0.01mm
.0015in
0.02mm
Ball .039”/1.0mm dia.300g
209-5572.36-3.15in
60-80mm
.0005in
0.01mm
.0015in
0.01mm
Ball .039”/1.0mm dia.300g
209-5582.76-3.54in
70-90mm
.0005in
0.01mm
.0015in
0.00mm
Ball .039”/1.0mm dia.300g
209-904.51-1.69in
13-43mm
.001in
0.02mm
.0016in
0.04mm
Ball .05”/1.3mm dia.360g
209-905.59-2.56in
15-65mm
.001in
0.02mm
.002in
0.06mm
Ball .06”/1.5mm dia.415g
209-9061.18-2.36in
30-60mm
.001in
0.02mm
.0016in
0.04mm
Ball .06”/1.5mm dia.370g
209-9071.96-3.14in
50-80mm
.001in
0.02mm
.0016in
0.04mm
Ball .08”/2mm dia.370g
209-9082.75-3.94in
70-100mm
.001in
0.02mm
.0016in
0.04mm
Ball .08”/2mm dia.375g
209-9093.74-5.31in
95-135mm
.001in
0.02mm
.0016in
0.04mm
Ball .08’/
2mm dia.
380g
209-9101.57-3.54in
40-90mm
.001in
0.02mm
.002in
0.06mm
Ball .08”/2mm dia.420g
