Applications
Mild Steel・Carbon Steel・Cast Iron・Alloy Steel・Tool Steel・Stainless Steel・Hardened Steel・Titanium Alloy・Superalloy・Inconel®・Pre-hardened Steel, etc.

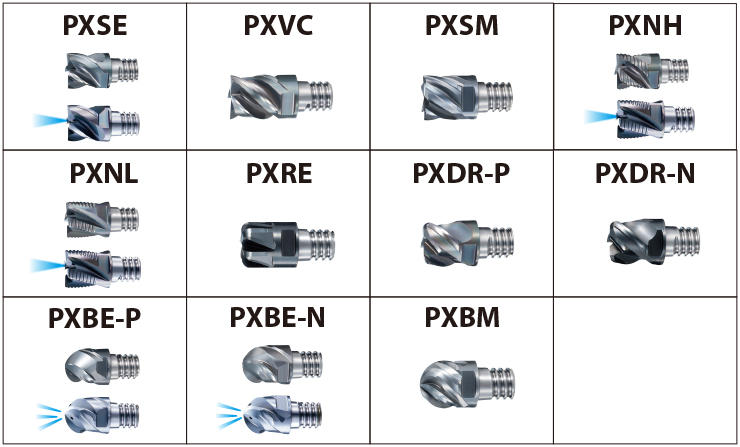

Lineup
Head
PXSE Unequal Spacing, Four Flutes, Square・Corner Radius Type
- without Coolant Hole φ10～φ25
- with Coolant Hole φ12～φ25
PXVC Variable Lead, Four Flutes, High Helix, Square・Corner Radius Type
- without Coolant Hole φ10～φ32
PXSM Unequal Spacing, Multiple Flutes, Square・Corner Radius Type
- without Coolant Hole φ10～φ25
PXNH Variable Lead, Four Flutes, High Helix, Roughing Type
- without Coolant Hole φ10～φ25
- with Coolant Hole φ12～φ25
PXNL Variable Lead, Four Flutes, Low Helix, Roughing Type
- without Coolant Hole φ10～φ25
- with Coolant Hole φ12～φ25
PXRE Straight Flutes, Corner Radius Type
- without Coolant Hole φ10～φ20
PXDR-P Three Flutes, Multi-purpose, Corner Radius Type
- without Coolant Hole φ10～φ20
PXDR-N Three Flutes, Heavy-duty, Corner Radius Type
- without Coolant Hole φ10～φ20
PXBE-P 3枚刃 Three Flutes, Multi-purpose, Ball Type
- without Coolant Hole φ10～φ20
- with Coolant Hole φ12～φ20
PXBE-N 3枚刃 Three Flutes, Heavy-duty, Ball Type
- without Coolant Hole φ10～φ20
- with Coolant Hole φ12～φ20
PXBM Multiple Flutes, Ball Type
- without Coolant Hole φ12～φ20
Body
- Straight Shank Holder for PXM（PXMZ） Carbide・Steel Shank
- Straight Shank Holder for PXM（PXMZ） Carbide・Steel Shank with Coolant Hole
- Joint for PXM（PXMJ）
- Joint for PXM（PXMJ） with Coolant Hole
- Collet for PXM（PXMC）
Data

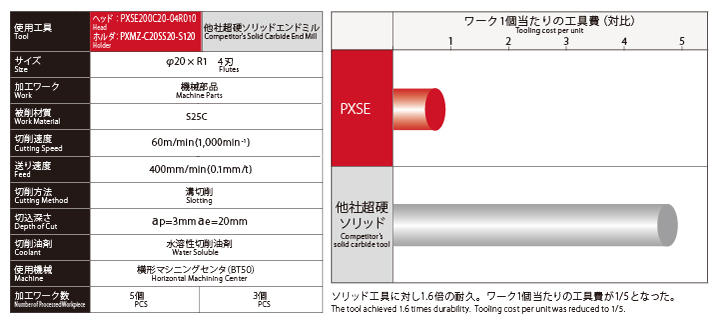

1.6 times durability and 1/5 of tooling cost achieved in parts machining
