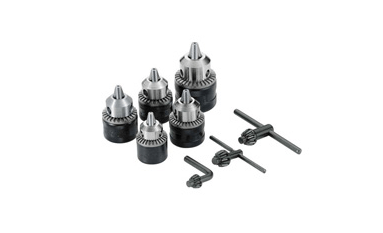

Multi Chucks
Yukiwa Multi Chucks are the lightweight drill chucks tightened by the chuck key which have been developed for the electric power drills and the air drills. They are mounted on the thread type spindles and most useful drill chucks when the total weight of the tool must be lighter. The customer can select the chuck from the maximum capacities of 6.5mm, 10mm and 13mm.
High Performance for Lightweight
The sleeve is made of steel to lighten the chuck. Since the chuck is lightweight, the user of the portable electric power drill or the air drill can operate with the high performance, and, the load of user will lighten.
Stable Accuracy
The selected materials of excellent quality are used for the body, cover, jaws and nut, and the proper heat-treatments are done on them. Therefore, the wear resistance is excellent and the stable accuracy is kept for a long time. Since the qualities of all parts are controlled, the run-out accuracy of the chuck is less than 0.2mm. If the chucks are used for mass-production at the manufacturers of electric power tools or air tools, the run-out accuracy is determined after consulting.
 |
 |
Multi Chucks
| Model | Capacity | Unify Fine Screw Thread |
Available Chuck key |
D1 | D2 | L1 | L2 | d | Weight (ｇ) |
| M6.5LB | 0.8～6.5 | 3/8-24UNF | MH10(6.5)T | 29.5 | 21.5 | 50.5 | 40 | 9.67 | 100 |
| M10LB | 1.5～10 | 3/8-24UNF | MH10(6.5)T | 34 | 26 | 58 | 46.5 | 9.67 | 155 |
| M10LK | 1.5～10 | 3/8-24UNF | MKK | 34 | 26 | 58 | 46.5 | 9.67 | 150 |
| M13LK | 1.5～13 | 3/8-24UNF | CKK | 42.3 | 31 | 72.2 | 58 | 9.67 | 300 |
* For LB and LK, the shape and number of the bevel gear on the chuck key are different.
* One chuck key is attached.
