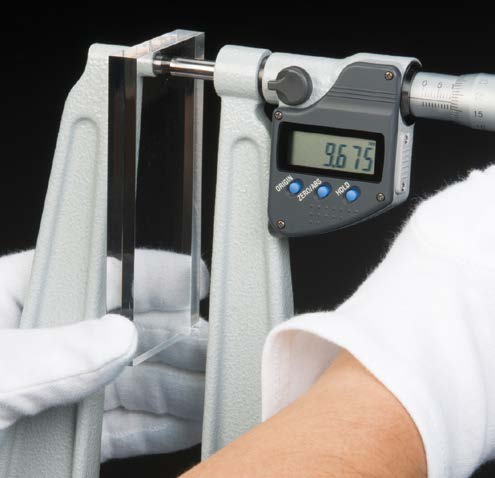

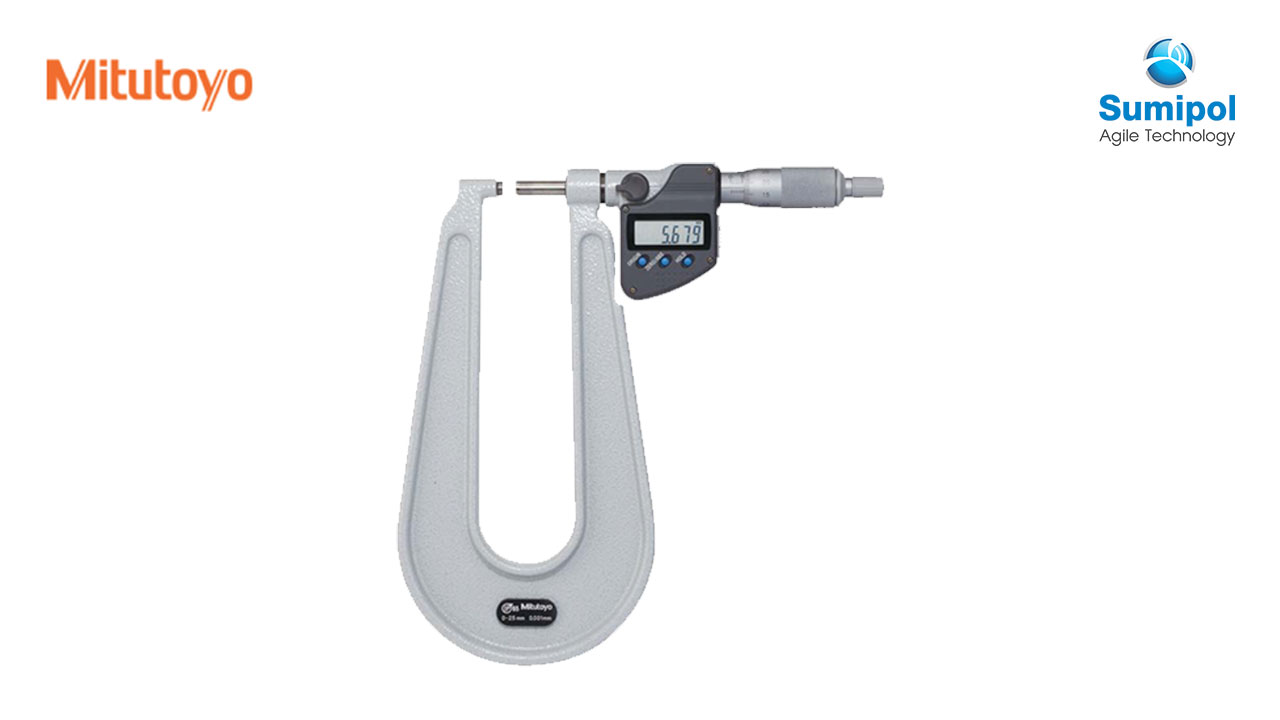

Flatness :
0.6 μm for models with 150 mm / 6 in throat
1 μm for models with 300 mm / 12 in throat
Parallelism : 3 μm
Battery for series 389 : SR44 (1 pc.), 938882, 2 pcs.:389-514, 389-714 for initial operational checks (standard accessory)
Battery life :
Approx. 2.4 years under normal use (for series 389-2XX, 3XX)
Approx. 1.8 years under normal use (for series 389-514, 714)
Length standard : Electromagnetic rotary sensor (for series 389)
Standard accessories :
Reference bar, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models)
Spanner (200877), 1 pc. (for series 118-1XX)
Spanner (301336), 1 pc. (for series 389-2XX, 3XX)
Spanner (200154), 1 pc. (for series 118-103/107, 389-514/714)
Optional Accessories for Series 389
Connecting cables for series 389 (excluding 389-514 and 389-714)
1 m: 05CZA662
2m: 05CZA663
USB Input Tool Direct USB-ITN-B (2 m): 06AFM380B
U-WAVE-T dedicated connection cable for series 389 (excluding 389-514 and 389-714)
160 mm: 02AZD790B
For foot switch: 02AZE140B
SPC cables for series 389 (excluding 389-514 and 389-714)
Connecting cables for 389-514, 389-714
Recommended cables: L-Type (does not interfere with operating the thimble.)
1 m: 04AZB512
2 m: 04AZB513
Straight type (may interfere with operating the thimble.)
1 m: 959149
2m: 959150
Connecting unit for U-WAVE-TM/TMB : 02AZF310 (IP67/buzzer type common specification)
* Only series 389 (except for 389-514 and 389-714) can be attached.
SPECIFICATIONS
Metric : Digimatic (LCD)
Order No.
Range (mm)
Resolution (mm)
Maximum permissible error JMPE (µm)
Throat depth (mm)
Measuring surfaces
389-251-30
0 – 25
0.001
±4
150
F-F
389-261-30
S-F
389-271-30
S-S
389-514
±5
300*
F-F
389-252-30
25 – 50
±4
150
389-262-30
S-F
389-272-30
S-S
Inch/Metric : Digimatic (LCD)
Order No.
Range (in)
Resolution
Maximum permissible error JMPE (in)
Throat depth (in)
Measuring surfaces
389-351-30
0 – 1
0.00005 in/0.001 mm
±0.0002
6
F-F
389-361-30
S-F
389-371-30
S-S
389-714
±0.00025
12*
F-F
389-352-30
1 – 2
±0.0002
6
389-362-30
S-F
389-372-30
S-S
Metric : Analog
Order No.
Range (mm)
Graduation (mm)
Maximum permissible error JMPE (µm)
Throat depth (mm)
Measuring surfaces
118-101
0 – 25
0.001
±4
100
F-F
118-102
150
118-114
S-F
118-118
S-S
118-103
±5
300*
F-F
118-110
25 – 50
±4
150
118-126
S-S
Inch : Analog
Order No.
Range (in)
Graduation (in)
Maximum permissible error JMPE (in)
Throat depth (in)
Measuring surfaces
118-129
0 – 1
0.0001
±0.0002
6
F-F
118-116
S-F
118-120
S-S
118-107
0.001
±0.00025
12*
F-F
118-112
1 – 2
±0.0002
6
* Models with a 300 mm (12 in) throat are equipped with a stand for convenience of measurement in the horizontal orientation as standard.

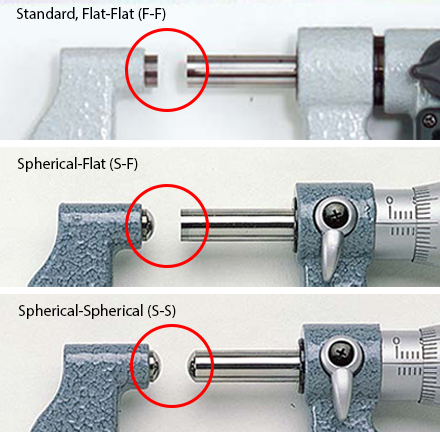

Note: In spherical-flat anvil type micrometers, the measuring face on the anvil side is spherical.
