Niigata Seiki

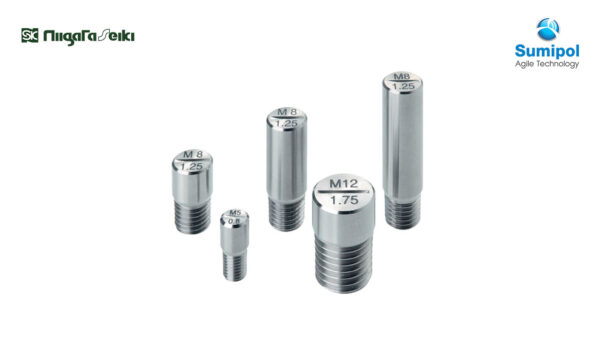

THREAD PIN GAUGE RA

Suitable when screw holes on workpiece is not chamfered

FEATURES

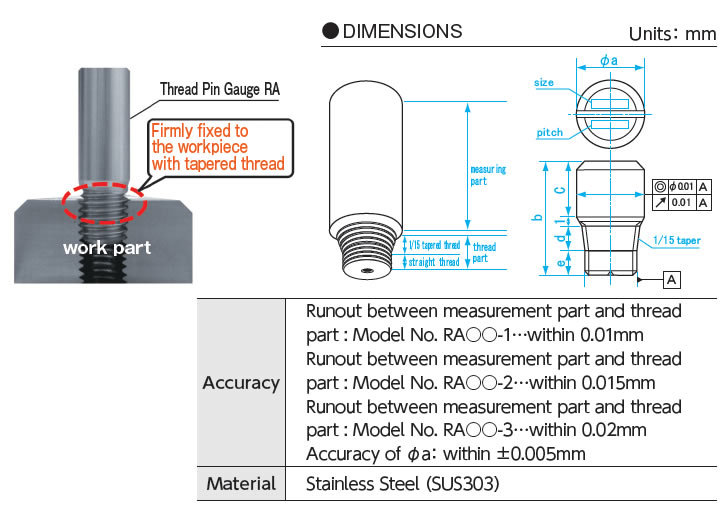

● Threaded portion has 1/15 taper starting at half way point to secure gauge to workpiece

● For measuring threaded hole which is difficult to measure with the existing thread pin gauge( e.g. threaded hole which is difficult to chamfer the opening or processed obliquely to work surface)
● Also suitable for deburring Process

แบบสอบถาม

Product Name : THREAD PIN GAUGE RA
