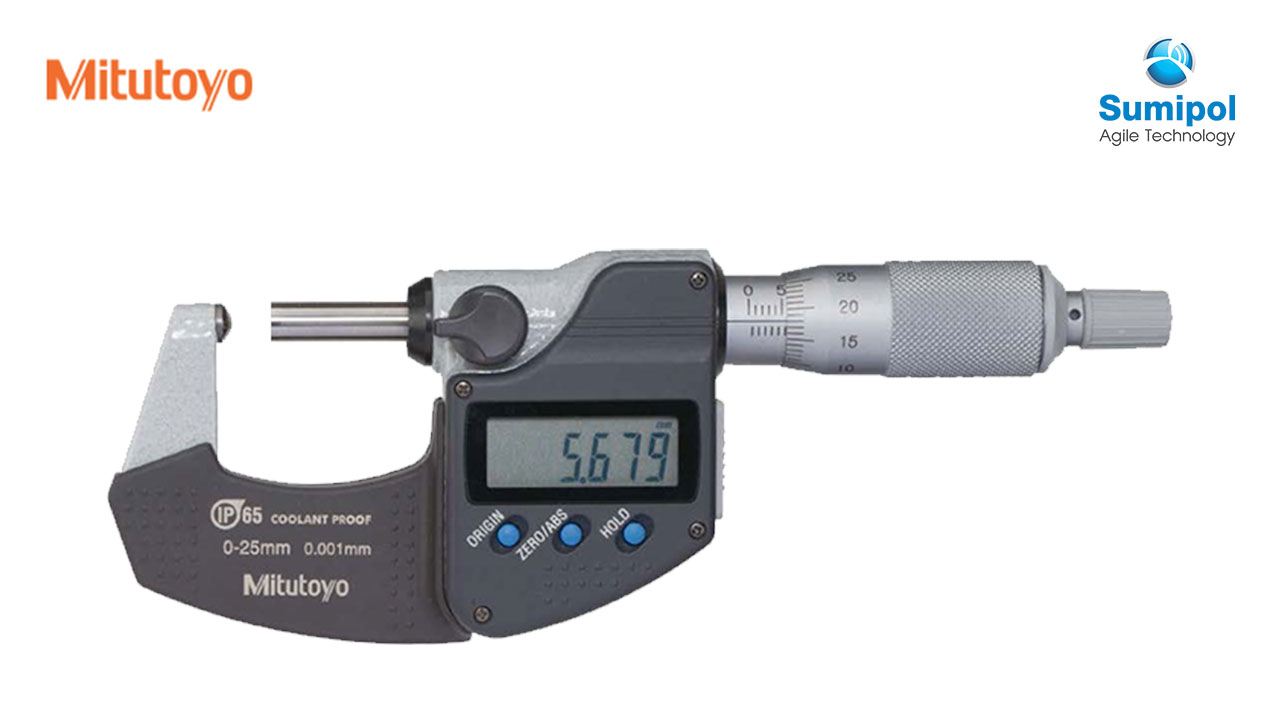

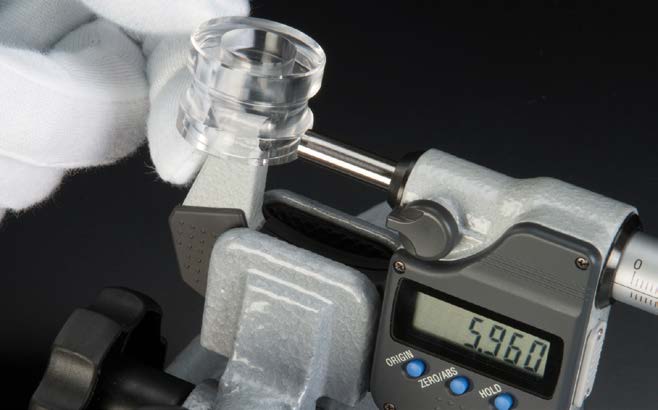

Technical Data
- Flatness :
0.6 μm/0.000024 in (series 115 & 295)
0.3 μm/0.000012 in (series 395)
- Battery for series 395 : SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
- Battery life: Approx. 2.4 years under normal use (for series 395)
- Length standard: Electromagnetic rotary sensor (for series 395)
- Standard accessories :
Reference bar, 1 pc. (except for measuring range 0 to 15 mm/0 to 25 mm (0 to 1 in) models)
Spanner (200168), 1 pc. (for series 115-101)
Spanner (301336), 1 pc. (for models other than series 115-101)
Optional Accessories
- Connecting cables for series 395
1 m: 05CZA662
2 m: 05CZA663
- USB Input Tool Direct
USB-ITN-B (2 m): 06AFM380B
- U-WAVE-T dedicated connection cable
160 mm: 02AZD790B
For foot switch: 02AZE140B
Wireless Data Output (U-WAVEfit)
- U-WAVE-TM 264-622 (IP67 type) , 264-623 (Buzzer type)
- U-WAVE-TMB Transmitter
Mitutoyo Bluetooth® U-WAVE 264-626 (IP type) , 264-627 (Buzzer type)
- Connecting unit for U-WAVE-TM/TMB : 02AZF310 (IP67/buzzer type common specification)
SPECIFICATIONS
Metric : Digimatic (LCD)
Order No. |
Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
øD |
395-251-30 |
0 – 25 |
0.001 |
±2 |
ø15 |
395-252-30 |
25 – 50 |
395-253-30 |
50 – 75 |
ø19 |
395-254-30 |
75 – 100 |
±3 |
ø20 |
Inch/Metric : Digimatic (LCD)
Order No. |
Range (in) |
Resolution |
Maximum permissible error JMPE (in) |
øD (in) |
395-351-30 |
0 – 1 |
0.00005 in/0.001 mm |
±0.0001 |
ø0.59 |
395-352-30 |
1 – 2 |
395-353-30 |
2 – 3 |
ø0.75 |
395-354-30 |
3 – 4 |
±0.00015 |
ø0.79 |
Metric
Order No. |
Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
øD |
Analog |
115-101 |
0 – 15 |
0.01 |
±3 |
ø5.5 |
115-115 |
0 – 25 |
ø10 |
115-116 |
25 – 50 |
ø11 |
115-117 |
50 – 75 |
ø17 |
115-118 |
75 – 100 |
±4 |
ø18 |
Mechanical counter model |
295-115 |
0 – 25 |
0.01 |
±3 |
ø10 |
Note: Optional connecting cable is available only for water-proof type (Digimatic model).
Inch
Order No. |
Range (in) |
Resolution |
Maximum permissible error JMPE (in) |
øD (in) |
Analog |
115-153 |
0 – 1 |
0.0001 |
±0.00015 |
ø0.40 |
Mechanical counter model |
295-153 |
0 – 1 |
0.0001 |
±0.00015 |
ø0.40 |
