Technical Data
Graduation: 0.01mm or .001″

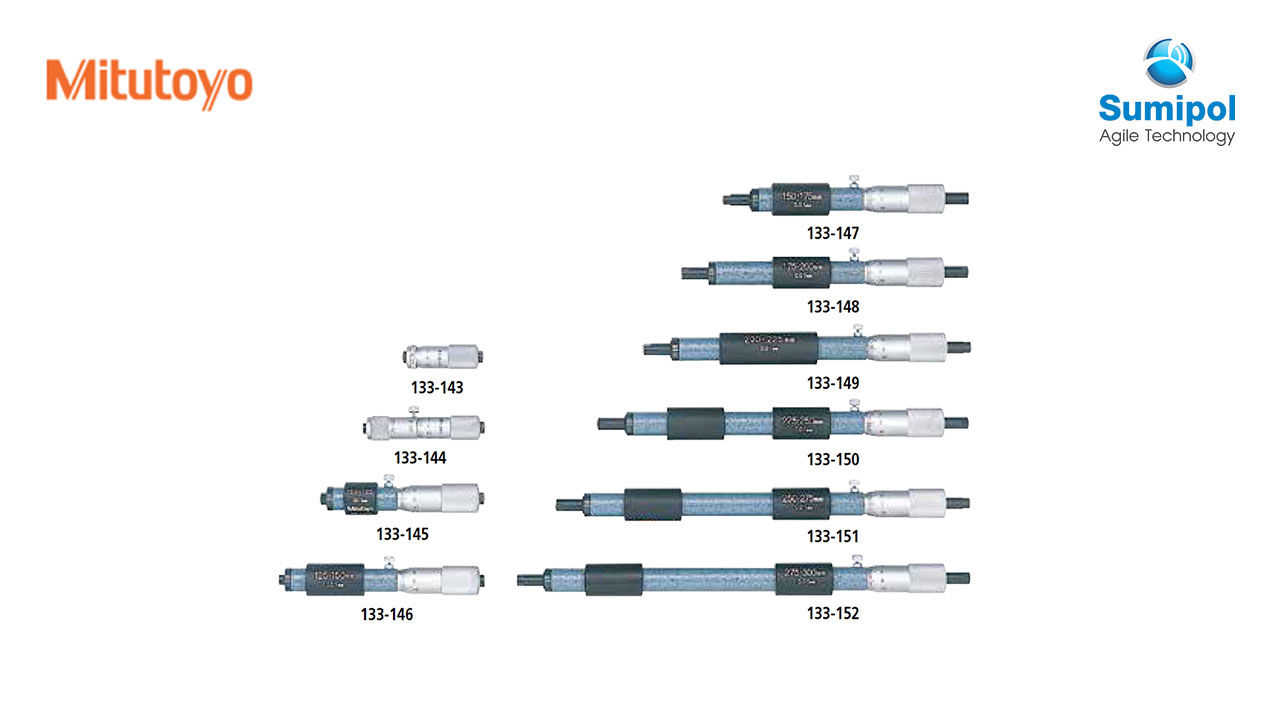

Order No | Range | Accuracy |
133-143 | 50-75mm | 3µm |
133-144 | 75-100mm | 4µm |
133-145 | 100-125mm | 5µm |
133-146 | 125-150mm | 5µm |
133-147 | 150-175mm | 5µm |
133-148 | 175-200mm | 5µm |
133-149 | 200-225mm | 5µm |
133-150 | 225-250mm | 6µm |
133-151 | 250-275mm | 6µm |
133-152 | 275-300mm | 6µm |
133-153 | 300-325mm | 7µm |
133-154 | 325-350mm | 7µm |
133-155 | 350-375mm | 7µm |
133-156 | 375-400mm | 8µm |
133-157 | 400-425mm | 8µm |
133-158 | 425-450mm | 8µm |
133-159 | 450-475mm | 9µm |
133-160 | 475-500mm | 9µm |
133-161 | 500-525mm | 9µm |
133-162 | 525-550mm | 10µm |
133-163 | 550-575mm | 10µm |
133-164 | 575-600mm | 10µm |
133-165 | 600-625mm | 11µm |
133-166 | 625-650mm | 11µm |
133-167 | 650-675mm | 11µm |
133-168 | 675-700mm | 12µm |
133-169 | 700-725mm | 12µm |
133-170 | 725-750mm | 12µm |
133-172 | 775-800mm | 13µm |
133-173 | 800-825mm | 13µm |
133-174 | 825-850mm | 14µm |
133-175 | 850-875mm | 14µm |
133-176 | 875-900mm | 14µm |
133-177 | 900-925mm | 15µm |
133-178 | 925-950mm | 15µm |
133-179 | 950-975mm | 15µm |
133-180 | 975-1000mm | 16µm |
