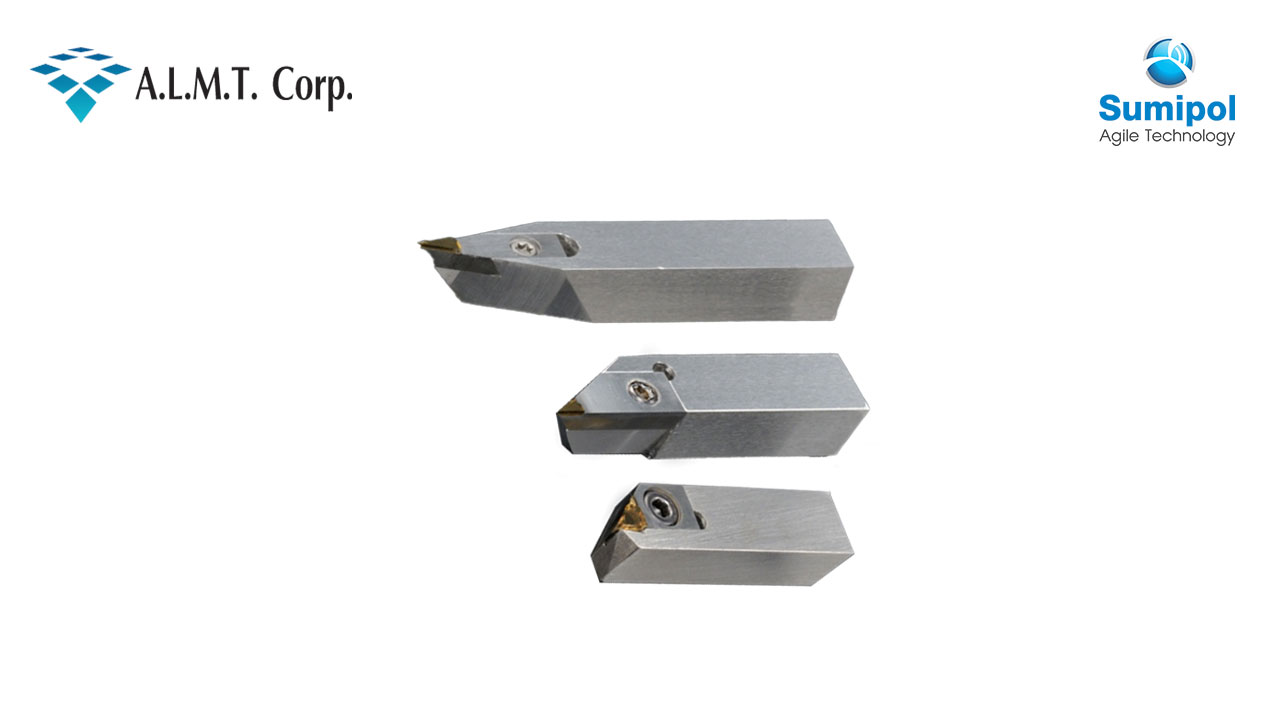

Turning Tools – Formed ultra precision cutting tool

UPC-Nano Profile

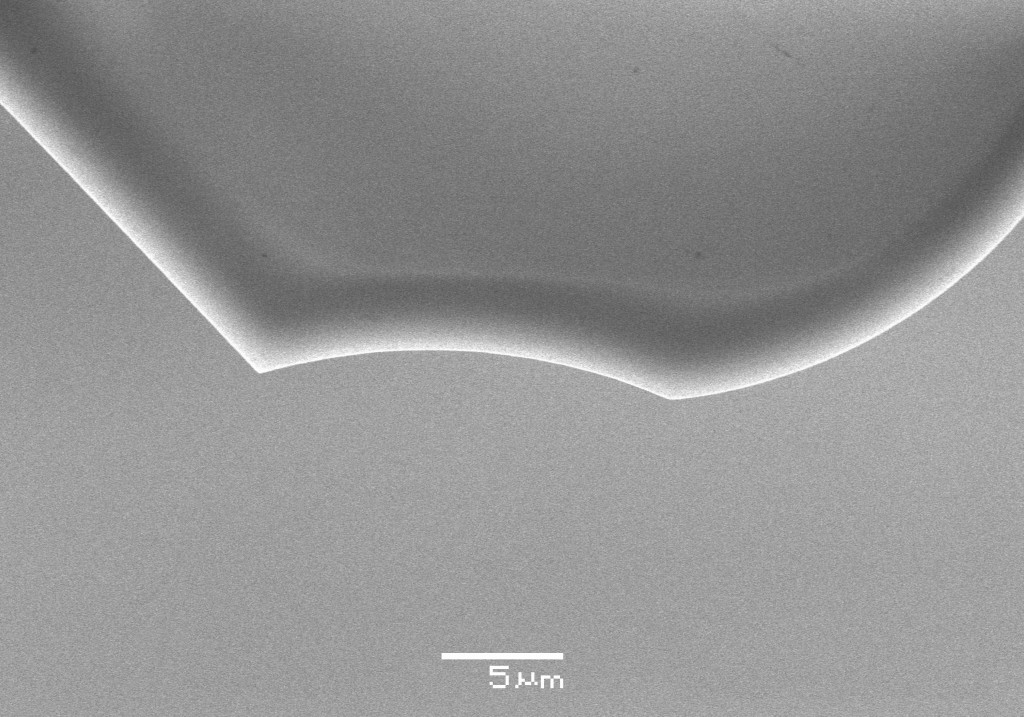

A formed single crystal diamond cutting tool having a free curve cutting edge. Paraboloid and ellipse of profile accuracy less than 1μm can be machined in one shot

รหัสสินค้า: Turning Tools-UPC-Nano Profile หมวดหมู่: ,

A formed single crystal diamond cutting tool having a free curve cutting edge.

Making formed grooves in many places or over a long distance can be done easily by the cutting edge having the intended form shape. “UPC; Nano Profile” is an ultra fine formed cutting tool having a free curved shape formed on its single crystal diamond cutting edge.



Characteristics


  • Free curved surfaces such as paraboloids ellipses etc. of profile accuracy less than 1 μm can be machined in one shot The profile accuracy of paraboloid and free curved surfaces is guaranteed.

Applications


LCD panel optical sheet molds, microlens array molds, various optical element molds

Industries


  • Optical/precision equipment
  • semiconductor/electronics
  • others

Work Material


  • Nonferrous metal material
  • Resin/rubber
  • Others

Processing Method


  • Turning
  • Grooving/cutting process
  • Others
