Resolution*: 0.001mm, 0.01mm, .00005″/0.001mm or .0005”/0.01mm
Flatness of base face: 5µm
Measuring force: 1.4N, 1.5N
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use

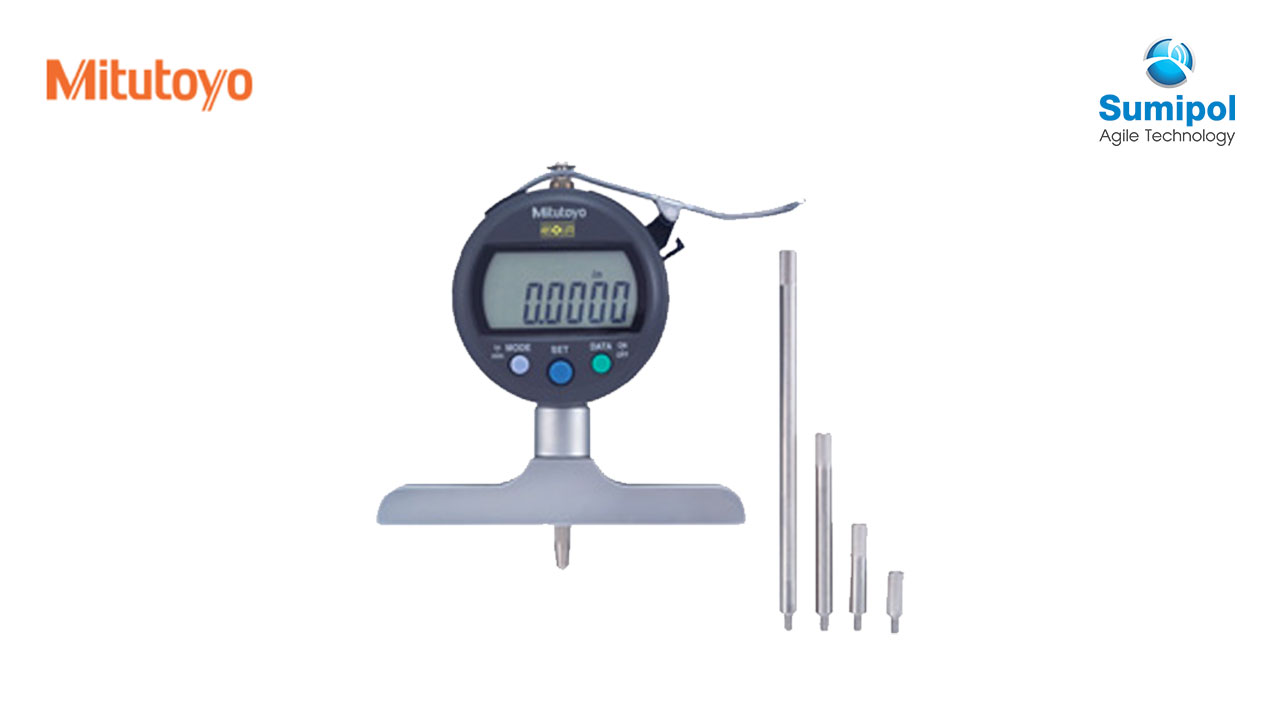

ABSOLUTE Digimatic Depth Gage Series 547
- ABSOLUTE Digimatic Depth Gage can keep track of the origin point once set for the entire life of the battery.
- Wide probing range is available with the supplied extension rod.
- Bottom surface of the base is hardened, ground and lapped for highest degree of flatness.
- With SPC data output.
