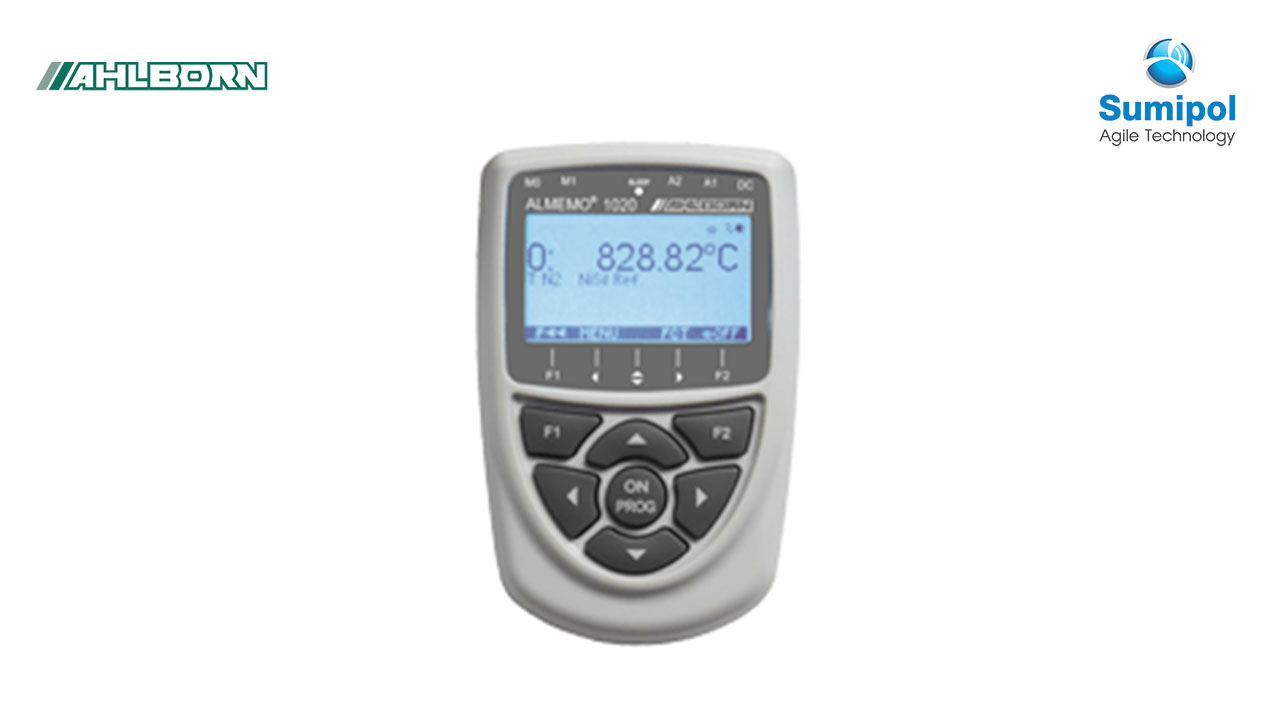

Reference measuring instrument for temperature ALMEMO® 1020-2

  • Reference measuring instrument for temperature
  • High-precision measuring by means of thermocouples Types N, S, R, B
  • Resolution 0.01 K, up to 1800 °C
รหัสสินค้า: ALMEMO® 1020-2 หมวดหมู่: ,
  • Temperature measurement with very high levels of resolution, precision, and linearity, using thermocouples Types N, S, R, B
  • Suitable as reference device in calibration laboratories and quality assurance procedures
  • Very high accuracy thanks to multi-point adjustment of the thermocouple temperature sensor
  • Each temperature sensor has its own cold junction stored in the ALMEMO® plug or externally. The cold junction temperature in the ALMEMO® plug is measured to a very high resolution of 0.001 K by means of an NTC sensor.
  • Two electrically isolated measuring inputs for thermocouples, types N, S, R, B
  • Resolution 0.01 K
  • Units °C, °F, K
  • High-resolution A/D converter, delta-sigma, 24-bit, 1.25 mops (measuring operations per second)
  • Two output sockets for digital interface, ALMEMO® memory connector
  • Compact, modern, ergonomic design
  • Graphics display, illuminated with white light
  • Easy and convenient to operate by means of 4 soft-keys and cursor block
  • Measured value display : 2 measured values, differential, measuring point list, cold junction temperature
  • Measuring functions : Zero-setting, smoothing, maximum / minimum values, individual value memory for 100 values
  • Data logger with ALMEMO® memory connector (accessory)
  • Sensor programming : Smoothing, designation, units
  • Device configuration : Illumination, contrast, device address, baud rate
  • Choice of language : German, English, French
