Anti-Vibration Carbide End Mill – AE-VMS

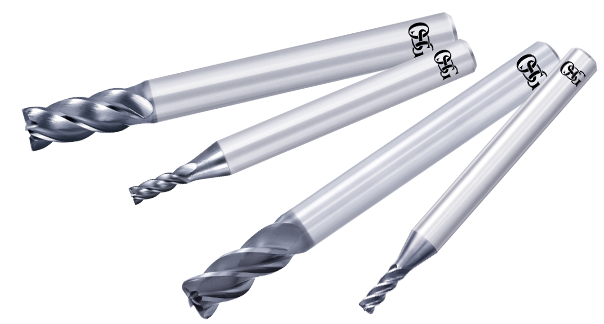

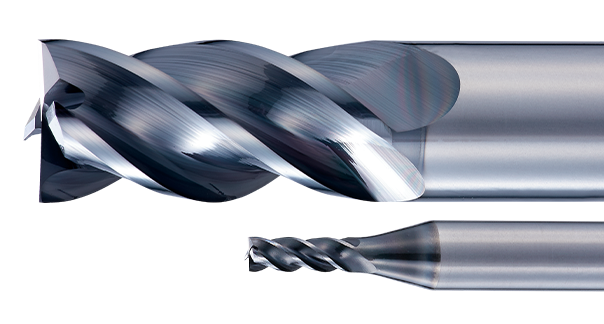

Anti-vibration carbide end mill series ideal for stainless steel, carbon steel and alloy steel. This series’ unique flute form with high tool rigidity and excellent chip evacuation properties enables stable milling and the suppression of burrs. High-speed side milling is made possible by the large thick core design of the long flute AE-VML.

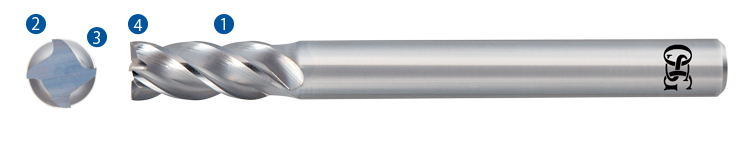

  1. “DUARISE coating” provides excellent lubricity, superior friction-resistance and high oxidation temperature
  2. Sharp positive rake angle reduces cutting force
  3. New flute form enables excellent chip evacuation
  4. Variable-lead geometry suppresses vibration

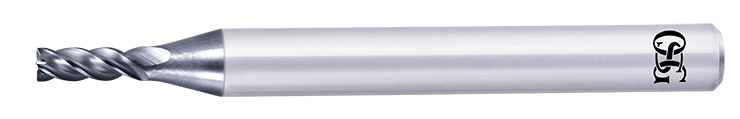

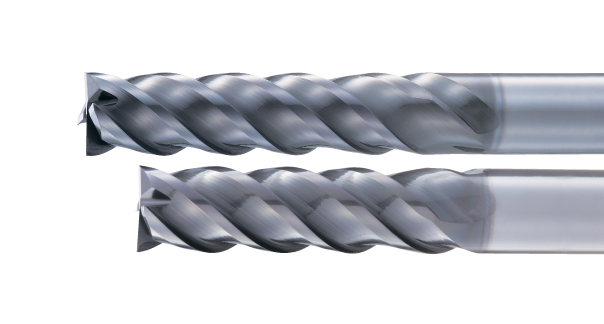

The web taper geometry, where the thickness of core changes from the cutting edge to the shank, greatly improves tool rigidity, thereby prevents the machining surface from tilting

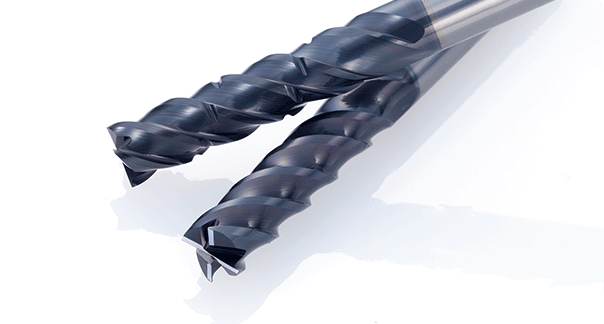

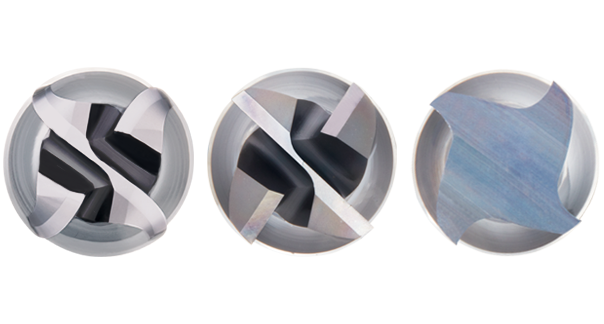

AE-VML chipbreaker (-N) configuration: creates small and compact chips to enable undisruptive machining operation.

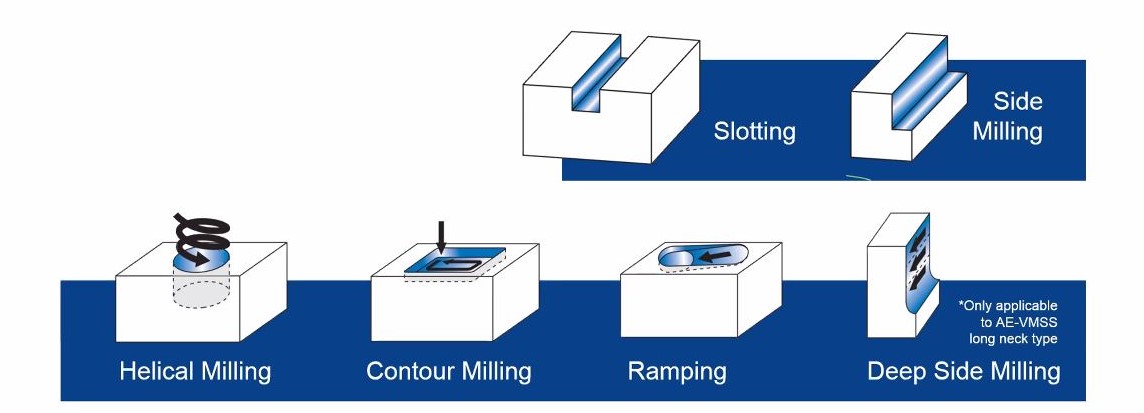

Applications


Mild Steel・Carbon Steel・Alloy Steel・Tool Steel・Prehardened Steel・Hardened Steel・Stainless Steel・Cast Iron・Copper Alloy・Aluminum Alloy・Titanium Alloy・Heat Resistant Alloy

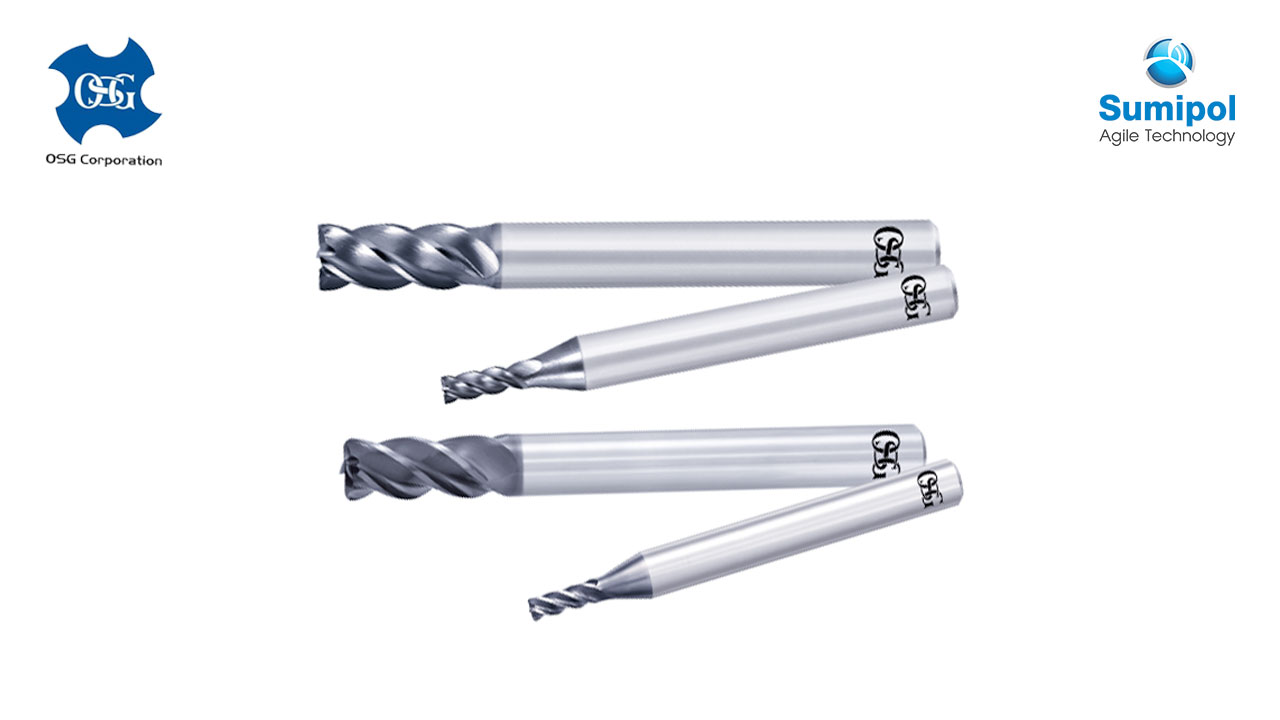

Lineup


Stub (AE-VMSS)

  • Square Type ∅1~∅12
  • Long Neck Type ∅6×18~∅12×60

Short (AE-VMS)

  • Square Type ∅3~∅25
  • Radius Type ∅3×R0.2~∅12×R3

Long(AE-VML)

  • Square Type ∅6×19~∅12×48
    Square with chipbreaker φ6×19-N~φ12×48-N

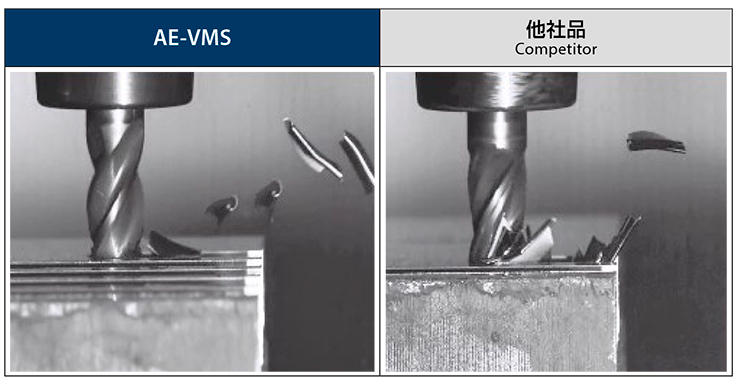

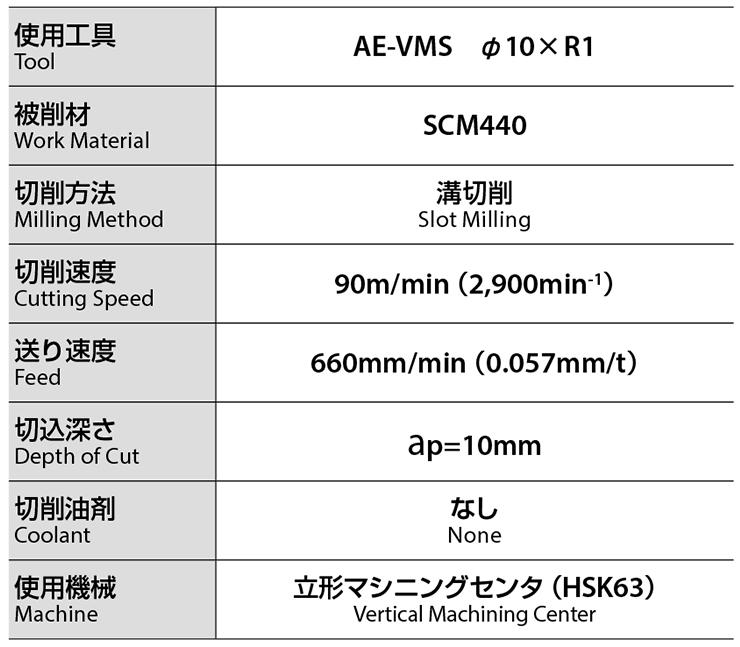

Data

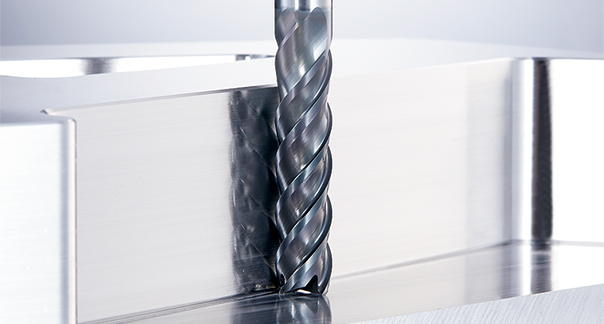

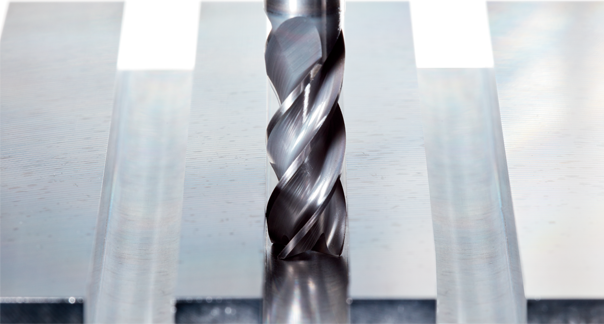

Excellent surface finish
