Niigata Seiki

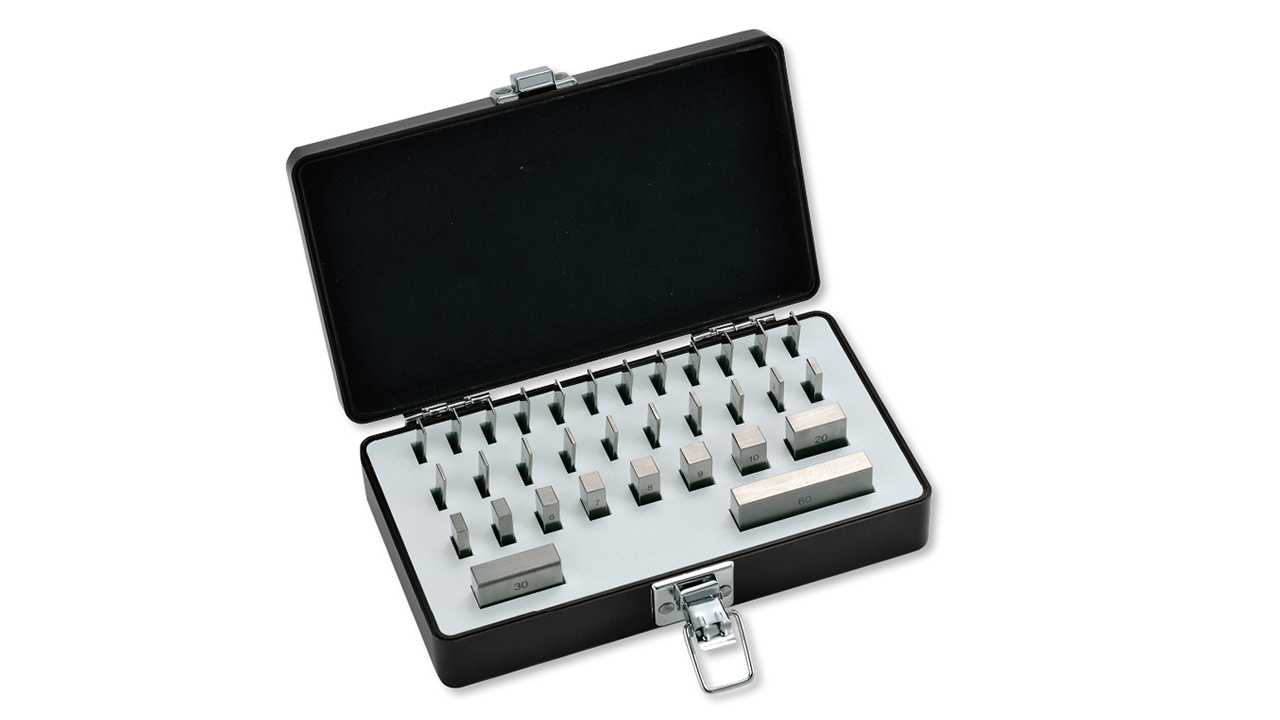

BLOCK GAUGE SET( GRADE 0)

High accuracy, class 0 model

USE
● As reference standard and for general measurement work
● As spacer and prefinished sub-assembly components

MATERIAL
● High carbon high chromium steel

FEATURES
● Conforms to JIS( Grade 0)
● Provided with inspection report

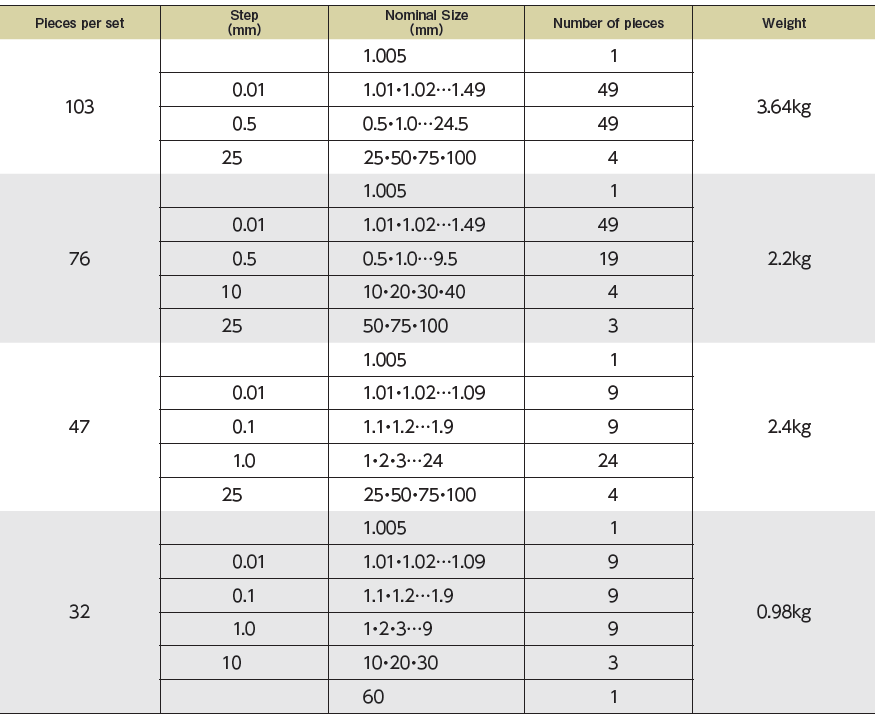

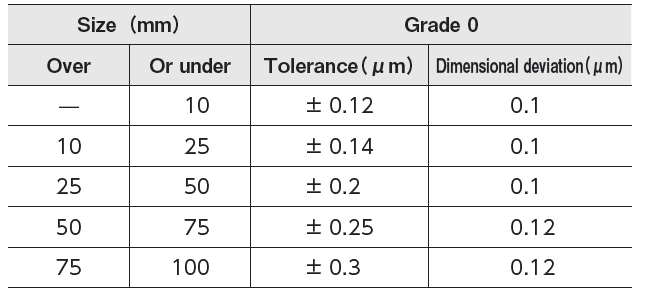

SPECIFICATIONS
● Section size: 10mm or under: 30(0~-0.3)× 9(-0.05~-0.2)mm
Over 10mm: 35(0~-0.3)× 9(-0.05~-0.2)mm
● Coefficient of thermal expansion: 11.5×10-6/K
※Calibration and custom size production are NOT available

แบบสอบถาม

Product Name : BLOCK GAUGE SET( GRADE 0)
