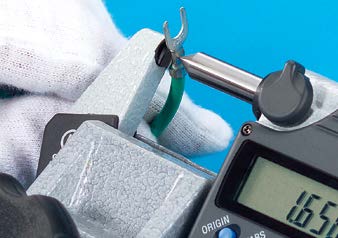

ไมโครมิเตอร์ วัดรอยย่น

SPECIFICATIONS

Metric

Order No.	Range (mm)	Resolution (mm)	Maximum permissible error JMPE (µm)
Digimatic (LCD)342-271-30	0-20	0.001	±3
Quickmike (LCD)342-451-20	0-15

Metric : Mechanical counter model

Order No.	Range (mm)	Graduation (mm)	Maximum permissible error JMPE (µm)
142-402	0-25	0.01	±3
142-403		0.001

Metric

Order No.	Range (mm)	Resolution (mm)	Maximum permissible error JMPE (µm)

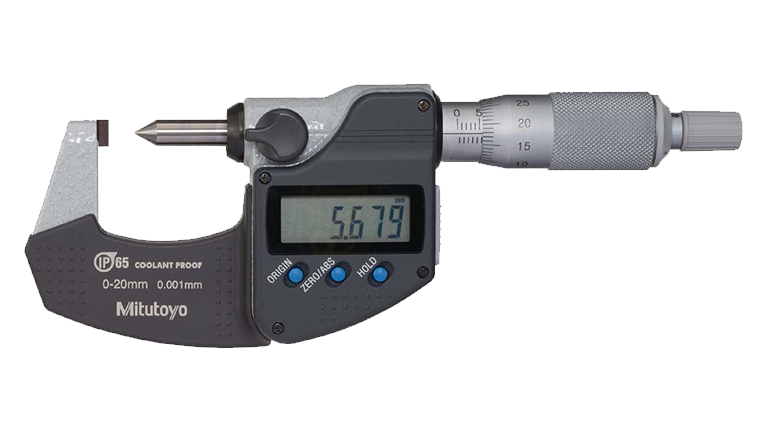

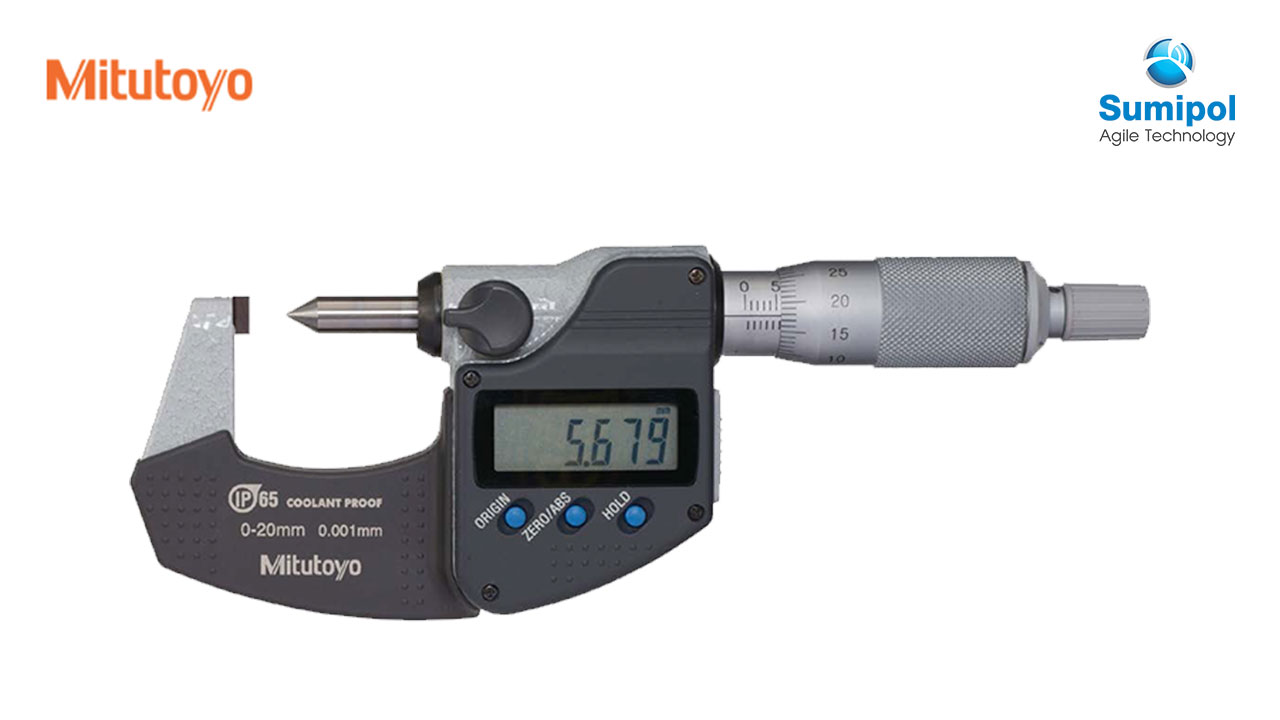

Digimatic (LCD)342-271-30	0-20	0.001	±3
Quickmike (LCD)342-451-20	0-15

Metric : Analog

Order No.	Range (mm)	Graduation (mm)	Maximum permissible error JMPE (µm)
112-401	0-25	0.01	±3

Inch/Metric : Digimatic (LCD)

Order No.	Range (in)	Resolution	Maximum permissible error JMPE (in)
342-371-30	0-0.8	0.00005 in/ 0.001 mm	±0.00015

Note: Optional connecting cable is available only for water-proof type (Digimatic model).

---

Technical Data

• Battery for series 342
  SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
• Battery life:
  Approx. 2.4 years under normal use (for series 342-271-30/342-371-30)
  Approx. 5 years under normal use
• Length standard:
  Electromagnetic rotary sensor (for series 342-271-30/342-371-30)
  Electrostatic capacity absolute sensor (for series 342-451-20)
• Standard accessories: Spanner (301336), 1 pc. (except for series 342-451-20)

---

Optional Accessories

• Connecting cables (Digimatic model, Quickmike)
  1 m: 05CZA662
  2 m: 05CZA663
• USB Input Tool Direct
  USB-ITN-B (2 m): 06AFM380B
• U-WAVE-T dedicated connection cable (for series 342-271-30/342-371-30 and 342-451-20)
  160 mm: 02AZD790B
  For foot switch: 02AZE140B

---

Wireless Data Output* U-WAVE fit

• U-WAVE-TM
  264-622 (IP67 type)
  264-623 (Buzzer type)
• U-WAVE-TMB Transmitter
  Mitutoyo Bluetooth® U-WAVE
  264-626 (IP type)
  264-627 (Buzzer type)
• Connecting unit for U-WAVE-TM/TMB
  02AZF310 (IP67/buzzer type common specification)
  * 342-271-30 and 342-371-30 can be attached. Not available for 342-451-20.
