Technical Data
- Battery for series 324 : SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
- Battery life: Approx. 2.4 years under normal use (for series 324)
- Length standard : Electromagnetic rotary sensor (for series 324)
- Standard accessories:
Reference bar, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models)
Spanner (301336), 1 pc.
Optional Accessories for Series 324
- Connecting cables for series 324
1 m: 05CZA662
2 m: 05CZA663
- USB Input Tool Direct : USB-ITN-B (2 m) 06AFM380B
- U-WAVE-T dedicated connection cable
160 mm: 02AZD790B
For foot switch: 02AZE140B
Wireless Data Output U-WAVEfit
- U-WAVE-TM 264-622 (IP67 type) , 264-623 (Buzzer type)
- U-WAVE-TMB Transmitter
Mitutoyo Bluetooth® U-WAVE 264-626 (IP type) , 264-627 (Buzzer type)
- Connecting unit for U-WAVE-TM/TMB : 02AZF310 (IP67/buzzer type common specification)

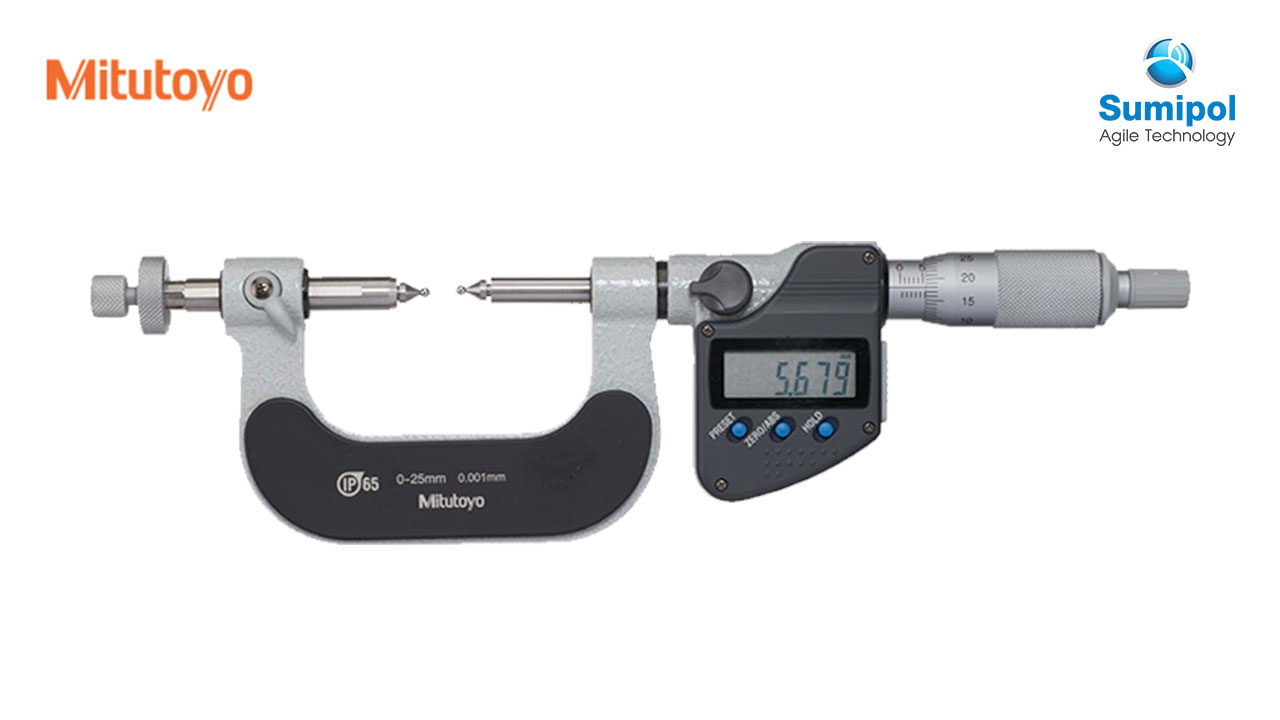

SPECIFICATIONS
Metric : Digimatic (LCD)
| Order No. |
Range (mm) |
Resolution (mm) |
Spindle feed error (μm) |
| 324-251-30 |
0 – 25 |
0.001 |
3 |
| 324-252-30 |
25 – 50 |
| 324-253-30 |
50 – 75 |
| 324-254-30 |
75 – 100 |
Note: Please note that origin setting of these models is by presetting.
Optional connecting cable is available only for water-proof type (Digimatic model).
Inch/Metric : Digimatic (LCD)
| Order No. |
Range (in) |
Resolution |
Spindle feed error (in) |
| 324-351-30 |
0 – 1 |
0.00005 in/0.001 mm |
0.00015 |
| 324-352-30 |
1 – 2 |
| 324-353-30 |
2 – 3 |
| 324-354-30 |
3 – 4 |
Metric : Analog
| Order No. |
Range (mm) |
Graduation (mm) |
Spindle feed error (μm) |
| 124-173 |
0 – 25 |
0.01 |
3 |
| 124-174 |
25 – 50 |
| 124-175 |
50 – 75 |
| 124-176 |
75 – 100 |
| 124-177 |
100 – 125 |
| 124-178 |
125 – 150 |
| 124-179 |
150 – 175 |
| 124-180 |
175 – 200 |
| 124-181 |
200 – 225 |
| 124-182 |
225 – 250 |
| 124-183 |
250 – 275 |
| 124-195 |
275 – 300 |
