A-TAP – High Efficiency Multi-Purpose – OSG

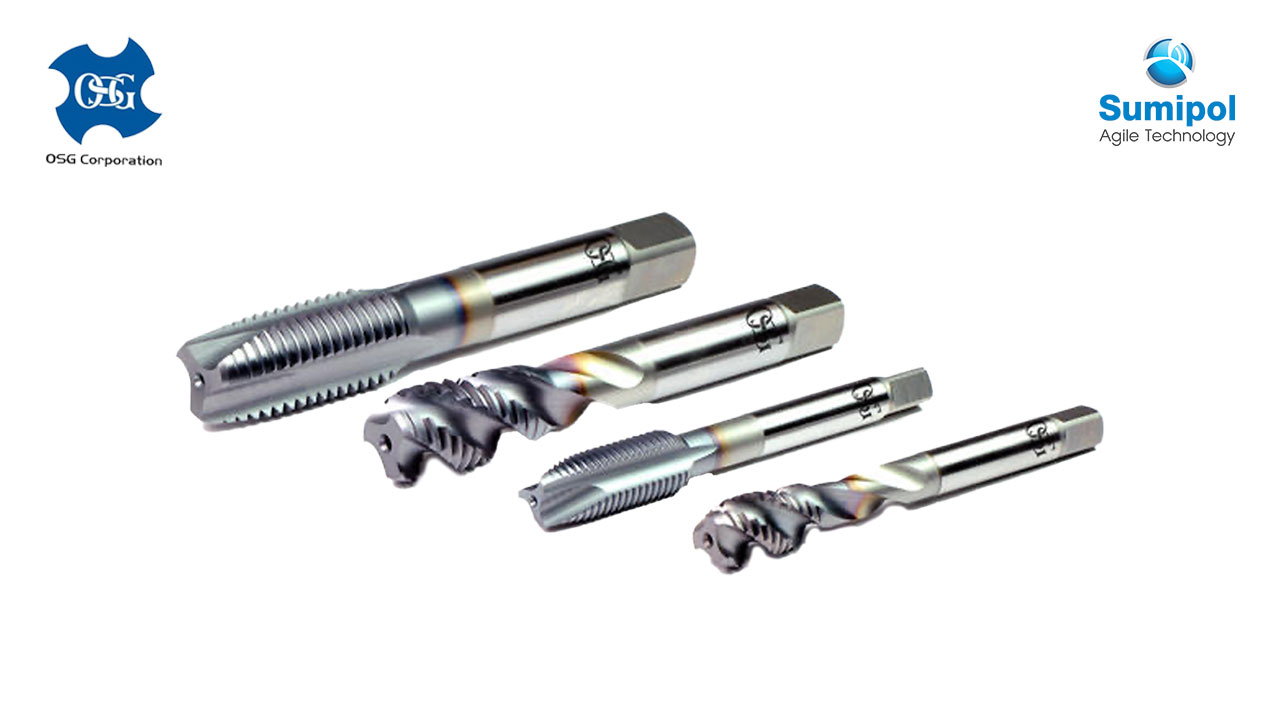

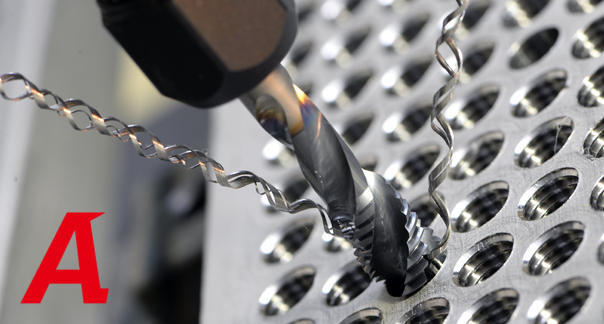

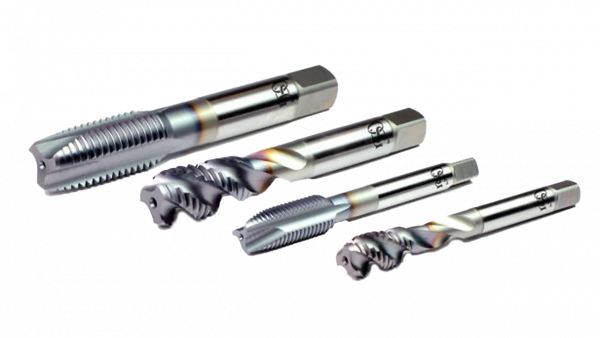

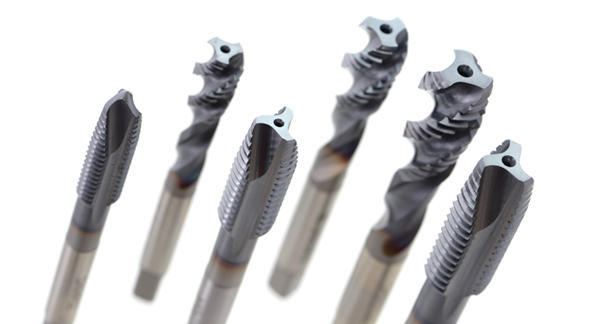

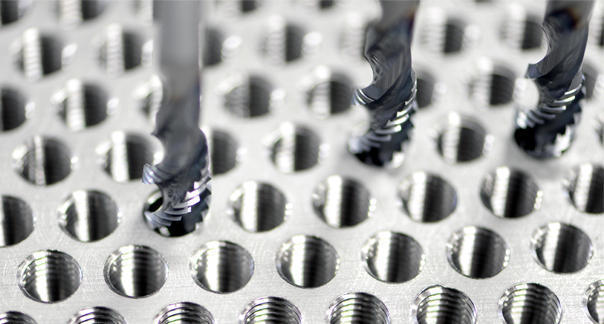

The A-Tap is known for its superior chip evacuation capability. It is an all-purpose tap series developed to accommodate a wide variety of materials and machining environments, helping manufacturers simplify tool management. Looking for a reliable tool that can do it all for general threading? The answer that you have been waiting for is here.

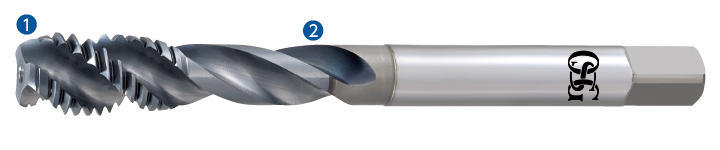

  1. Sharp cutting edge stabilizes chip shape.
  2. Variable lead flute enables trouble-free chip evacuation.
  • Excels in a wide range of applications and materials.
  • Compatible with various types of machining equipment – from manual drilling machines to the latest advanced machining centers.

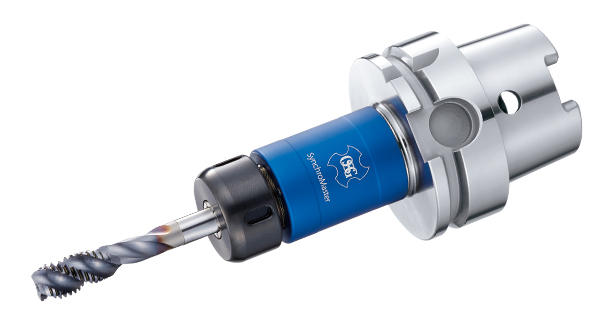

  • New generation synchronized tap holder designed to maximize the performance of your A-Tap tools.

For Detail>

Applications


Low Carbon Steel・Medium Carbon Steel・High Carbon Steel・Alloy Steel・Stainless Steel・Tool Steel・Cast Steel・Ductile Cast Iron・Copper・Brass・Brass Casting・Bronze・Aluminum Rolled・Aluminum Alloy Casting・Magnesium Alloy Casting・Zinc Alloy Casting・Titanium Alloy

Lineup


Blind


A-SFT

  • Basic form M1.4~M24、No.4~7/8U
  • For Threading large diameter holes M27~M56、1U~2U
  • End Mill shank M3~M14

A-LT-SFT

  • Long shank M2~M24
  • Long Shank (End Mill Shank) M3~M24

A-SFT HL

  • Helicoil / EG / STI M2~M12、No.10~3/8U

A-LT-SFT HL

  • Long Shank for Helicoil / EG / STI M3~M10

A-TPT

  • Taper Pipe Thread (Long Thread)  PT(Rc)・NPT 1/16~1”

A-S-TPT

  • Taper Pipe Thread (Short Thread) PT(Rc)・NPT 1/16~1”

A-SPT

  • Parallel Pipe Thread Rp・G・NPS 1/16~1”

Through


A-POT

  • Basic form M1.4~M24、No.4~7/8U
  • End Mill shank M3~M14

A-LT-POT

  • Long shank M2~M24
  • Long Shank (End Mill Shank) M3~M24

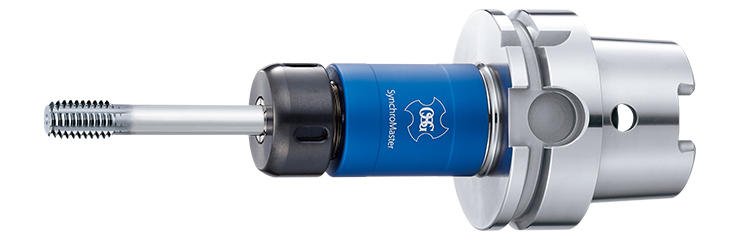

Tap Holder


  • SynchroMasterBT Shank Holder M3~M12
  • HSK Shank Holder M3~M12

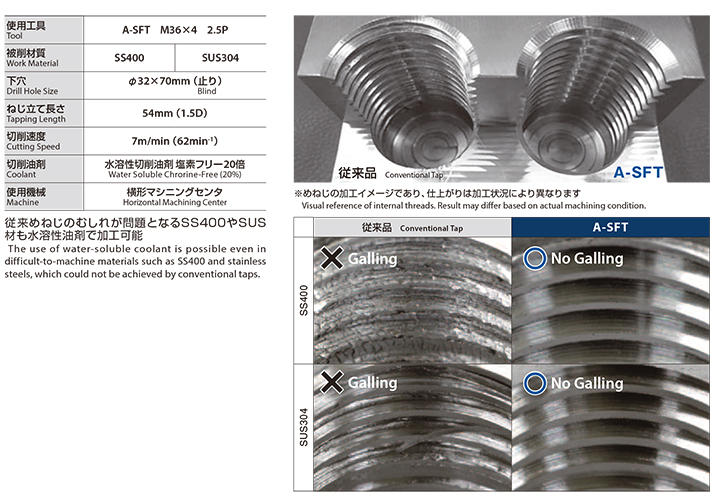

Data
