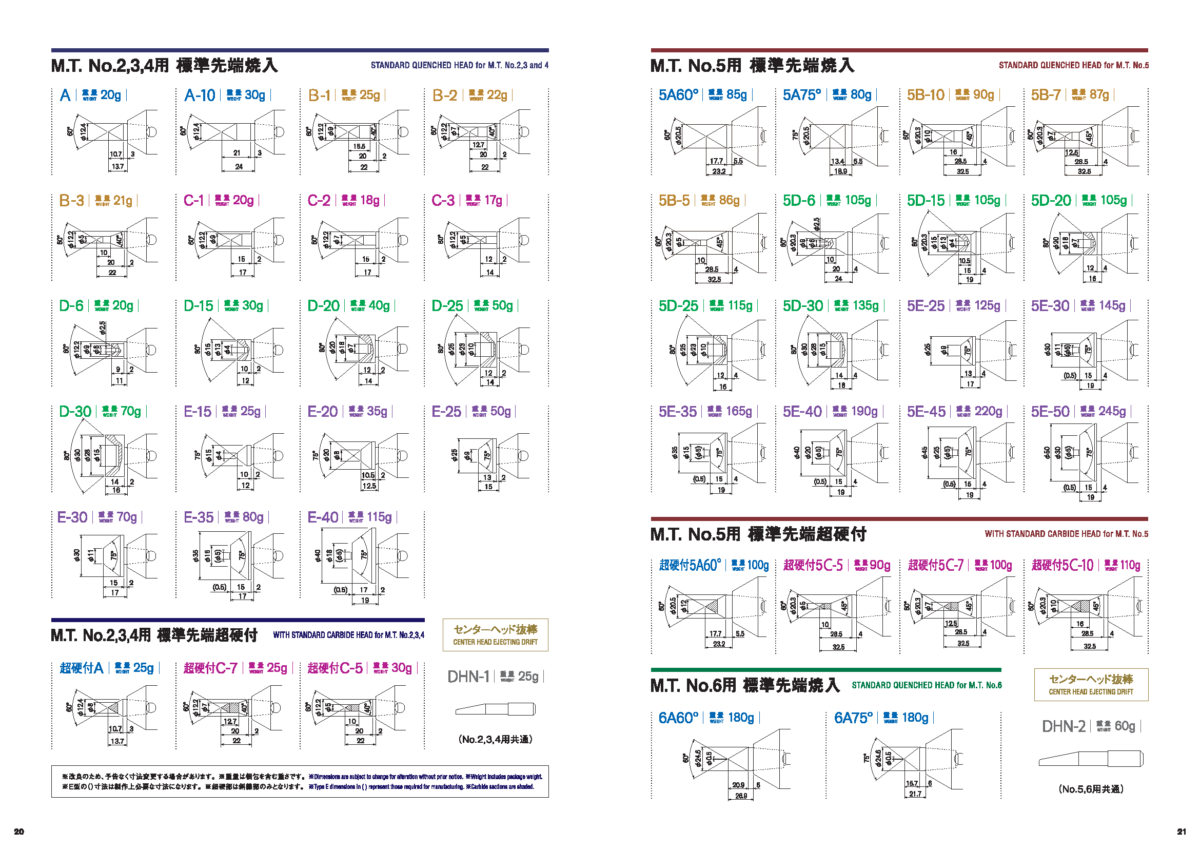

HEAD LIST
LOAD CAPACITY & MORSE TAPAR TABLE
- ASSUME BEARING LIFE OF 2000 HOURS (UNIT kgf)
KFL & KFN
KFL
KFN
|
MORSE TAPER |
LOAD / rpm |
500 |
1,000 |
2,000 |
3,000 |
4,000 |
5,000 |
6,000 |
7,000 |
M.T.-3 |
RADIAL |
330 |
238 |
192 |
161 |
146 |
137 |
129 |
96 |
THRUST |
196 |
140 |
113 |
95 |
86 |
81 |
75 |
60 |
M.T.-4 |
RADIAL |
527 |
419 |
332 |
290 |
264 |
244 |
230 |
172 |
THRUST |
300 |
238 |
189 |
165 |
150 |
139 |
130 |
104 |
M.T.-5 |
RADIAL |
705 |
577 |
454 |
409 |
360 |
325 |
306 |
230 |
THRUST |
470 |
385 |
303 |
273 |
240 |
217 |
204 |
153 |
KS
KSN
|
MORSE TAPER |
LOAD / rpm |
500 |
1,000 |
2,000 |
3,000 |
4,000 |
5,000 |
M.T.-2 |
RADIAL |
168 |
135 |
107 |
93 |
84 |
78 |
THRUST |
221 |
177 |
140 |
122 |
111 |
104 |
M.T.-3 |
RADIAL |
237 |
190 |
151 |
132 |
120 |
110 |
THRUST |
312 |
250 |
198 |
173 |
157 |
145 |
M.T.-4 |
RADIAL |
425 |
340 |
268 |
235 |
213 |
198 |
THRUST |
556 |
445 |
353 |
308 |
280 |
260 |
M.T.-5 |
RADIAL |
630 |
504 |
400 |
349 |
317 |
294 |
THRUST |
780 |
662 |
525 |
460 |
417 |
387 |
KC & KCW
KC
KCW
|
MORSE TAPER |
LOAD / rpm |
50 |
150 |
500 |
1,000 |
2,000 |
3,000 |
M.T.-1 |
RADIAL |
53 |
29 |
24 |
20 |
16 |
12 |
THRUST |
55 |
37 |
29 |
23 |
20 |
15 |
M.T.-2 |
RADIAL |
212 |
115 |
95 |
77 |
61 |
48 |
THRUST |
282 |
189 |
148 |
112 |
97 |
77 |
M.T.-3 |
RADIAL |
340 |
200 |
160 |
125 |
108 |
86 |
THRUST |
430 |
298 |
237 |
191 |
155 |
124 |
M.T.-4 |
RADIAL |
643 |
380 |
302 |
231 |
206 |
164 |
THRUST |
665 |
445 |
352 |
280 |
245 |
194 |
M.T.-5 |
RADIAL |
910 |
605 |
485 |
385 |
308 |
– |
THRUST |
1065 |
713 |
564 |
450 |
360 |
– |
M.T.-6 |
RADIAL |
2800 |
2100 |
1380 |
1170 |
– |
– |
THRUST |
3750 |
2770 |
1850 |
1470 |
– |
– |
【NOTES】 Load capacity is a value that shows the lifetime limitation of the bearing, and is therefore not a value for the center itself.
MORSE TAPER TABLE
|
MORSE TAPER |
GAUGE LINE |
ONE-SIDED TAPER ANGLE |
TAPER RATIO |
No.1 |
Ø 12.065 |
1° 25′ 43″ |
0.049882 |
No.2 |
Ø 17.780 |
1° 25′ 50″ |
0.049951 |
No.3 |
Ø 23.825 |
1° 26′ 16″ |
0.050196 |
No.4 |
Ø 31.267 |
1° 29′ 15″ |
0.051938 |
No.5 |
Ø 44.399 |
1° 30′ 26″ |
0.052626 |
No.6 |
Ø 63.348 |
1° 29′ 36″ |
0.052138 |
