Technical Data
- Battery for series 342 : SR44 (1 pc.) 938882 for initial operational checks (standard accessory)
- Battery life: Approx. 2.4 years under normal use (for series 342)
- Length standard: Electromagnetic rotary sensor (for series 342)
- Standard accessories:
Reference bar, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models)
Spanner (301336), 1 pc.
Optional Accessories
- Connecting cables for series 342
1 m: 05CZA662
2 m: 05CZA663
- U SB Input Tool Direct
USB-ITN-B (2 m): 06AFM380B
- U -WAVE-T dedicated connection cable
160 mm: 02AZD790B
For foot switch: 02AZE140B
Wireless Data Output
- U-WAVE-TM 264-622 (IP67 type) , 264-623 (Buzzer type)
- U-WAVE-TMB Transmitter
Mitutoyo Bluetooth® U-WAVE
264-626 (IP type)
264-627 (Buzzer type)
- Connecting unit for U-WAVE-TM/TMB : 02AZF310 (IP67/buzzer type common specification)

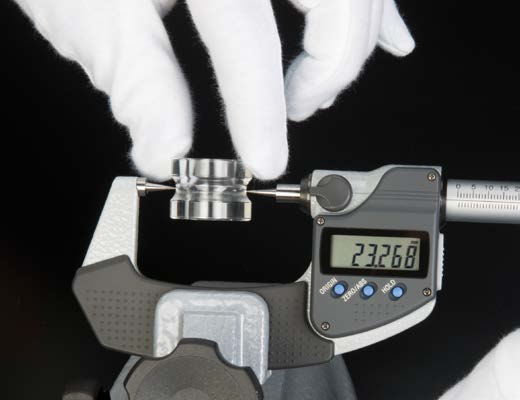

SPECIFICATIONS

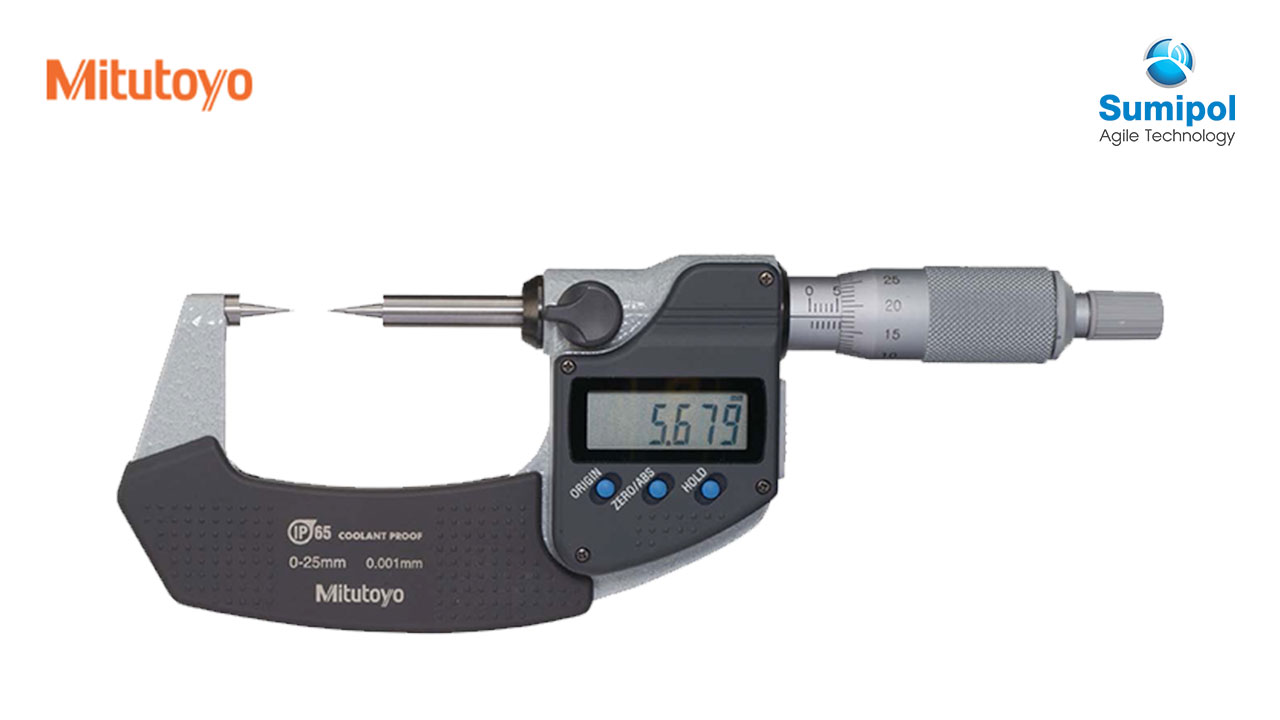

Metric : Digimatic (LCD) (With carbide tip)
| Order No. |
Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
Point |
| 342-251-30 |
0-25 |
0.001 |
±2 |

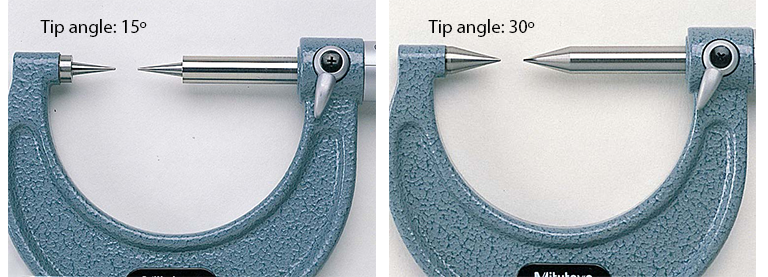

15º |
| 342-252-30 |
25-50 |
| 342-253-30 |
50-75 |
| 342-254-30* |
75-100 |
±3 |
| 342-261-30 |
0-25 |
±2 |
30º |
| 342-262-30 |
25-50 |
| 342-263-30 |
50-75 |
| 342-264-30* |
75-100 |
±3 |
* Made to order.
Inch/Metric : Digimatic (LCD) (With carbide tip)
| Order No. |
Range (in) |
Resolution |
Maximum permissible error JMPE (in) |
Point |
| 342-351-30 |
0-1 |
0.00005 in/0.001 mm |
±0.0001 |
15º |
| 342-352-30 |
1-2 |
| 342-353-30 |
2-3 |
| 342-354-30 |
3-4 |
±0.00015 |
| 342-361-30 |
0-1 |
±0.0001 |
30º |
| 342-362-30 |
1-2 |
| 342-363-30 |
2-3 |
| 342-364-30 |
3-4 |
±0.00015 |
Metric
| Order No. |
Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Point |
| Analog |
| 112-153 |
0-25 |
0.01 |
±3 |
15º |
| 112-154 |
25-50 |
| 112-155 |
50-75 |
| 112-156 |
75-100 |
±4 |
| 112-201 |
0-25 |
±3 |
30º |
| 112-202 |
25-50 |
| 112-203 |
50-75 |
| 112-204 |
75-100 |
±4 |
| Analog (With carbide tip) |
| 112-165 |
0-25 |
0.01 |
±3 |
15º |
| 112-166 |
25-50 |
| 112-167 |
50-75 |
| 112-168 |
75-100 |
±4 |
| 112-213 |
0-25 |
±3 |
30º |
| 112-214 |
25-50 |
| 112-215 |
50-75 |
| 112-216 |
75-100 |
±4 |
| Mechanical counter model |
| 142-153 |
0-25 |
0.01 |
±3 |
15º |
| 142-201 |
30º |
* Optional connecting cable is available only for water-proof type (Digimatic model).
Inch
| Order No. |
Range (in) |
Graduation (in) |
Maximum permissible error JMPE (in) |
Point |
| Analog |
| 112-177 |
0-1 |
0.01 |
±0.00015 |
15º |
| 112-178 |
1-2 |
| 112-225 |
0-1 |
30º |
| 112-226 |
1-2 |
| Analog |
| 112-189 |
0-1 |
0.01 |
±0.00015 |
15º |
| 112-190 |
1-2 |
| 112-191 |
2-3 |
| 112-237 |
0-1 |
30º |
| 112-238 |
1-2 |
| Mechanical counter model |
| 142-177 |
0-1 |
0.01 |
±0.00015 |
15º |
| 142-225 |
30º |
