Mitutoyo

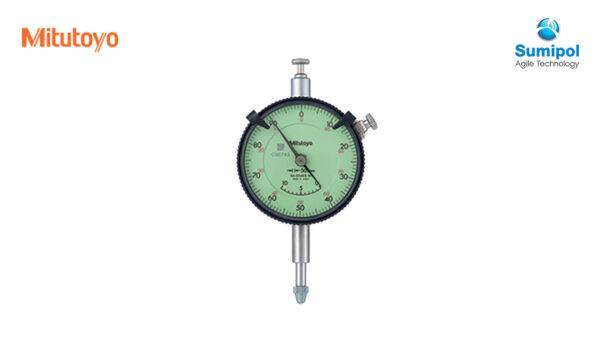

Special Dial Indicators Series 2
Series 2
- เกจหมุนมือแบบปรับได้
- ตำแหน่งมือสามารถปรับได้อิสระจาก
- แกน Spindle เคลื่อนที่ขึ้นลง โดยการหมุนปุ่มด้านบน
Inch
| Order No | Type | Graduation | Range/ Range Rev | Dial Reading | Accuracy | Force | Stem |
|---|---|---|---|---|---|---|---|
| 2915S-10 | w/lug | .001in | .5in/.1″ | 0-100 | First 2.5 Rev/Overall.001 /.001 | 1.8N or less | Stem dia. 3/8in 4-48 UNF Thread |
| 2915SB-10 | Flat-back | .001in | .5in/.1″ | 0-100 | First 2.5 Rev/Overall.001 /.001 | 1.8N or less | Stem dia. 3/8in 4-48 UNF Thread |
| 2918S-10 | w/lug | .001in | .5in/.1″ | 0-50-0 | First 2.5 Rev/Overall.001 /.001 | 1.8N or less | Stem dia. 3/8in 4-48 UNF Thread |
| 2918SB-10 | Flat-back | .001in | .5in/.1″ | 0-50-0 | First 2.5 Rev/Overall.001 /.001 | 1.8N or less | Stem dia. 3/8in 4-48 UNF Thread |
Metric
| Order No | Type | Graduation | Range/ Range Rev | Dial Reading | Accuracy | Force | Stem |
|---|---|---|---|---|---|---|---|
| 2046S-80 | w/lug | 0.01mm | 10mm/1mm | 0-100 | First 2.5 Rev/Overall0.015mm | 5.0N or less | Stem ø 8mm, M2.5 x 0.45 Thread |
| 2046SB-80 | Flat-back | 0.01mm | 10mm/1mm | 0-100 | First 2.5 Rev/Overall0.015mm | 5.0N or less | Stem ø 8mm, M2.5 x 0.45 Thread |
| 2048S-10 | w/lug | 0.01mm | 10mm/1mm | 0-100 | First 2.5 Rev/Overall0.015mm | 1.4N or less | Stem ø 8mm, M2.5 x 0.45 Thread |
| 2048S-11 | w/lug | 0.01mm | 10mm/1mm | 0-100 | First 2.5 Rev/Overall13µm / ±0.013mm | 1.4N or less | Stem dia. 3/8in 4-48 UNF Thread, Yellow Dial Face |
| 2048SB-10 | Flat-back | 0.01mm | 10mm/1mm | 0-100 | First 2.5 Rev/Overall0.015mm | 1.4N or less | Stem ø 8mm, M2.5 x 0.45 Thread |
| 2048SB-11 | Flat-back | 0.01mm | 10mm/1mm | 0-100 | First 2.5 Rev/Overall13µm / ±0.013mm | 1.4N or less | Stem dia. 3/8in 4-48 UNF Thread, Yellow Dial Face |
| 2940S | w/lug | 0.01mm | 10mm/1mm | 0-100 | First 2.5 Rev/Overall0.015mm | 2.0N or less | Stem ø 8mm, M2.5 x 0.45 Thread |
