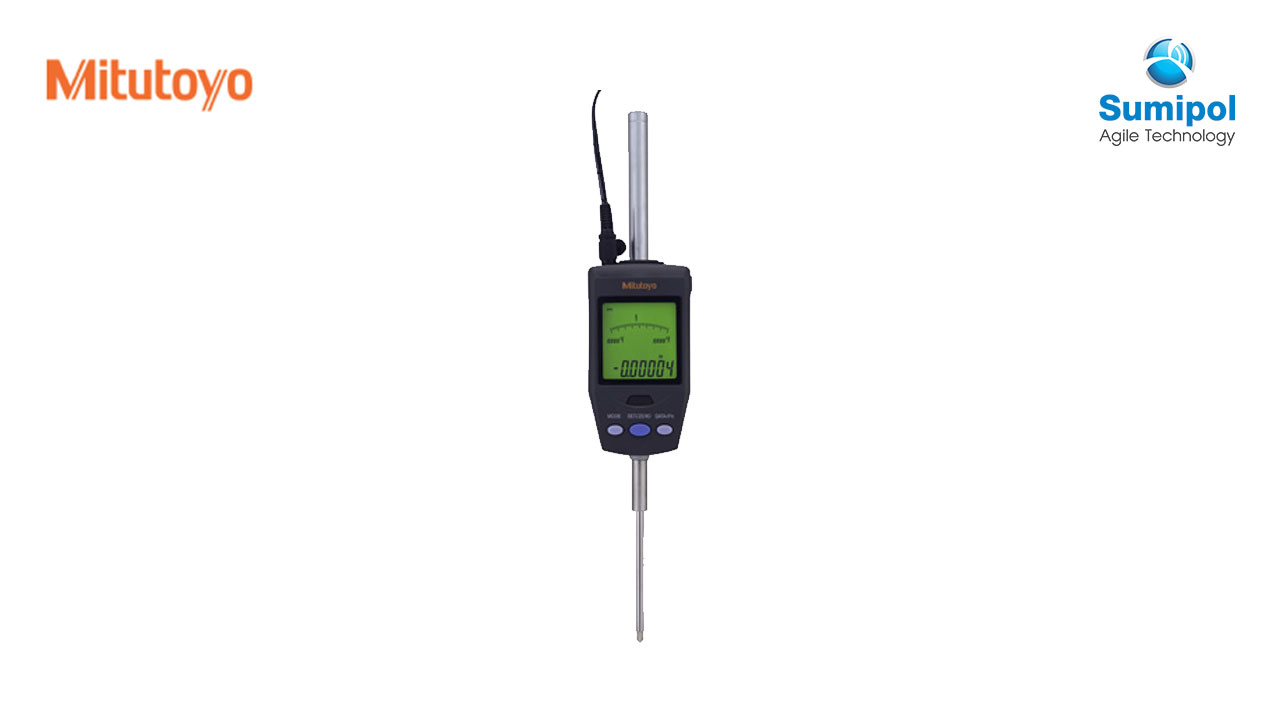

Digimatic Indicator ID-H

SERIES 543 — High Accuracy and High Functionality Type

  • This new-generation digital indicator offers the excellent accuracy and functionality expected from this class of indicator. Take advantage of its high accuracy backed up by 0.5ìm / .00002″ resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analog bar display.
  • The maximum, minimum, or runout value can be displayed during measurement.
  • GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
  • With SPC data output.
  • With RS-232C input/output

Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.0005mm/0.001mm or .00002”/.00005”/.0001”/0.0005mm/0.001mm
Display: LCD
Length standard: Linear encoder
Max. Response speed: 1000mm/s
Measuring force: 2.0N/2.5N* or less (*60mm range models)
Power supply: 6V DC (via AC adaptor)
