Accuracy: Refer to the list of specifications.
Resolution: 0.01mm or .0005″/0.01mm
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: Refer to the list of specifications
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours under normal use
Dust/Water protection level: IP42

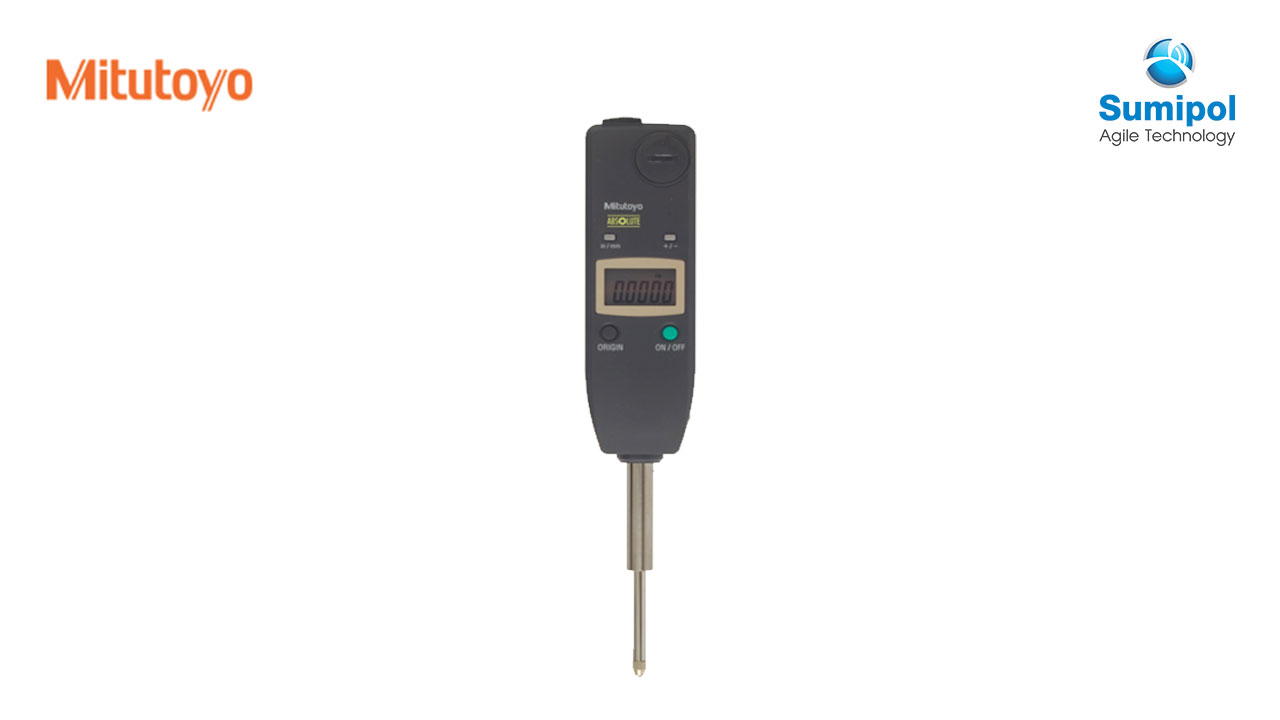

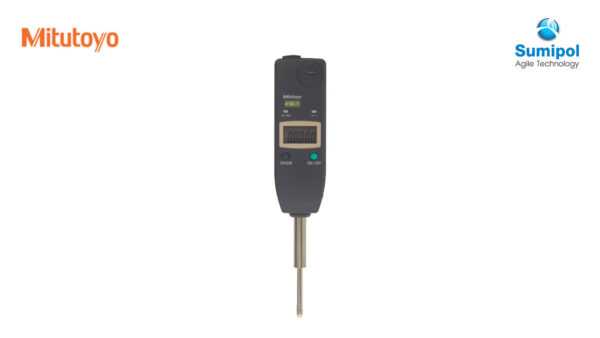

ABS Digimatic Indicator ID-U
SERIES 575 — Slim andEconomical Design
- Slim type digital indicator with low price.
- Large LCD and simple key operation.
- After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life; the origin is remembered even after power-off.
- Ideal for installation into measuring devices because of it’s compact design and long battery life.
- Employing the ABSOLUTE linear encoder, the ID-U always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
- Flat back type only no option for backs.
