Digital Gauges SA Series – Contact Type Displacement Sensors

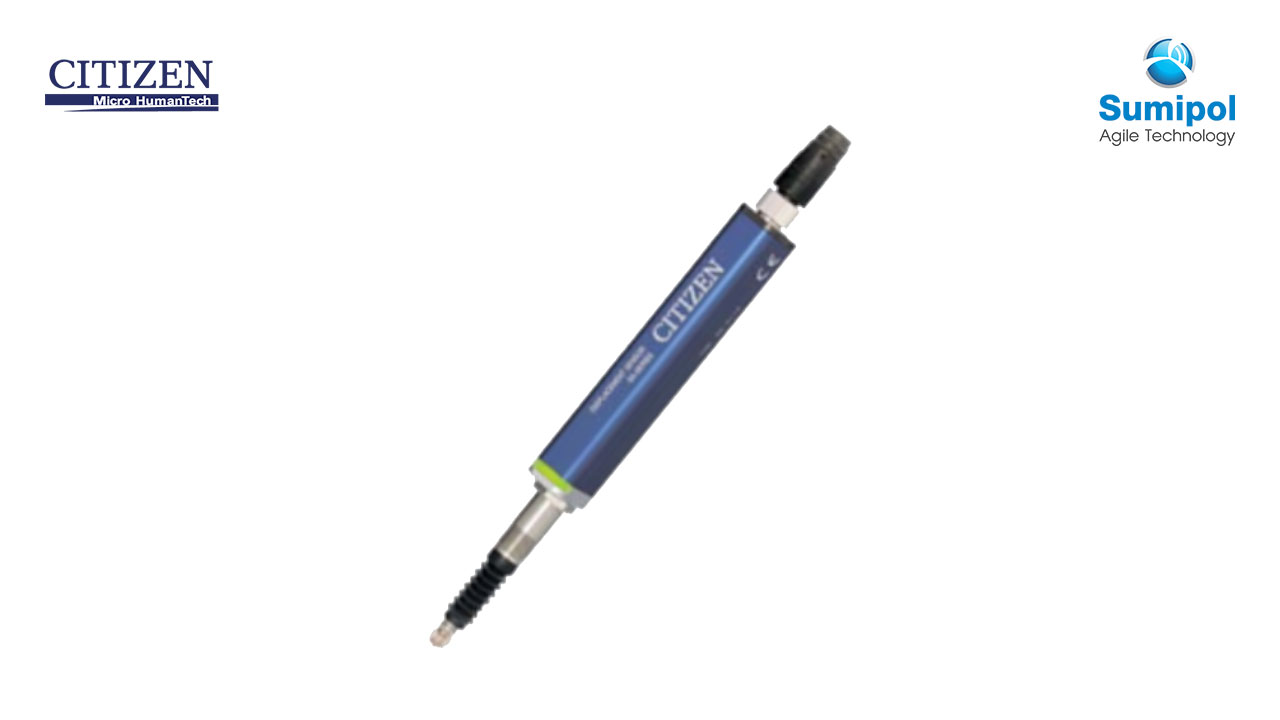

These are high-accuracy contact-type displacement sensors that detect the absolute position of the spindle optically and output it with high resolution. In combination with the separately-sold SA Series controllers, these products serve as a length-measuring system. We have also provided new air purge specifications in which air is supplied to the body of the detector to increase its internal pressure, preventing intrusion of foreign matter from outside, which significantly improves its environmental resistance, and enabling use in harsh environments with exposure to highly-penetrating oils, coolants and cutting fluids.

รหัสสินค้า: Digital Dial Gauges หมวดหมู่: ,

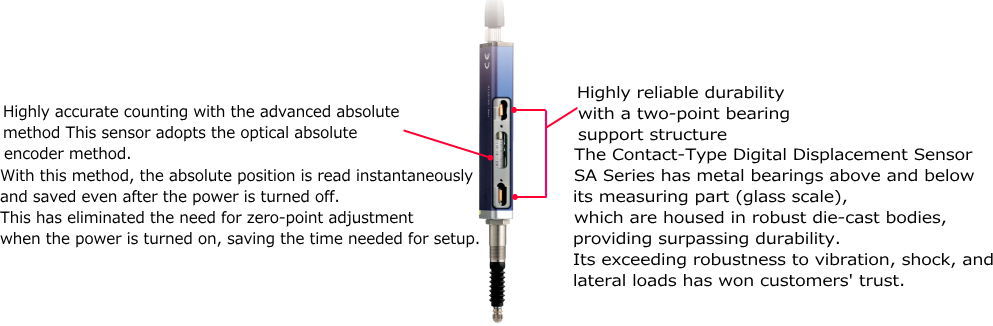

Advanced air-purge technology provides the ultimate, excellent anti-environmental performance.

This air-purge system dramatically increases the resistance to the environment by supplying air to the sensor body to raise the inner pressure and preventing foreign objects from invading from outside. It exhibits strong performance in severe environments where liquids such as permeable oil, coolant liquids and cutting fluids spill over the detector.

Applications

Automatic inspection line in manufacturing processes including Grinding parts

  • Polishing
  • Cutting
  • Assembling

We recommend this product to the following industries

  • Automotive parts
  • Bearings
  • Electronic components
Model SA-S110AP SA-S510AP
Position detection method Optical absolute linear encoder method
Measuring range 10mm
Used fluid Air
Operating pressure range 0.05～0.10MPa
Air tube specification φ4mm ／内径φ2.5mm
Air tube specification Outer diameter: 4 mm
Inner diameter: 2.5 mm
Withstanding pressure 1.5～3N※2
Resolution 0.1μm 0.5μm
Indication accuracy (P-P) ※1 1.0μm 以下 2.0μm 以下
Mass Approx. 80 g
ngress protection rating※3 Equivalent to IP67
Operating temperature/humidity range －10～55℃／ 35～80％RH（with no condensation or icing）
Storage temperature/humidity range －20～60℃／ 35～80％RH/td>
Grounding method Capacitor grounding
Cable※4 Sold separately as an option
Measuring probe Ceramic sphere with a diameter of 3.175 mm
