Mitutoyo

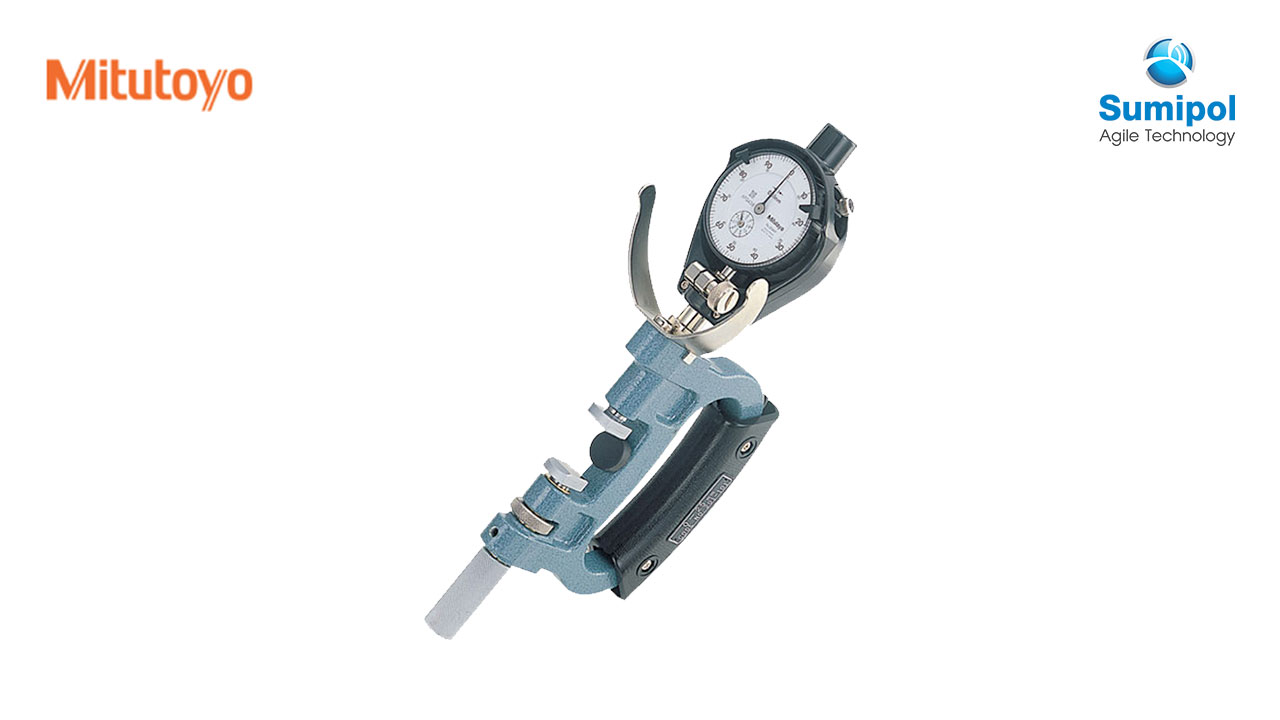

Dial Snap Gages

  • Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes.
  • Dial indicator is optional.
  • Anvil retracting stroke: .078”/2mm
  • Anvil positioning range: 1”/25mm
  • Wide (.53 x .47”/13.5 x 12mm), flat carbide anvils.
  • Both front edges of the anvil are chamfered for easy insertion.

Technical Data
Anvil retracting stroke:.078”/2mm
Anvil positioning range: 1”/25mm
Anvil flatness: .00004”/1µm
