Mitutoyo

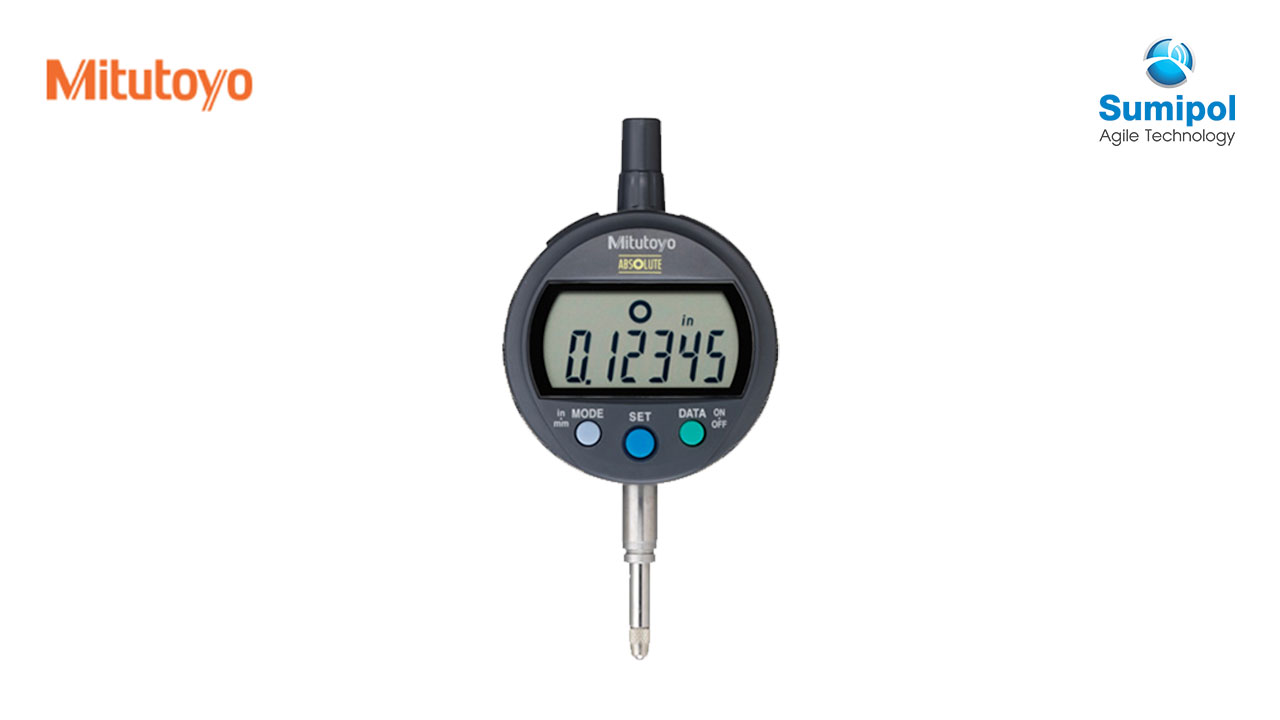

ABS Digimatic Indicator ID-C-Standard Type

  • มีขนาดใกล้เคียงกับ Series 2 dial indicators
  • เล็กกะทัดรัด เหมือน Dial Indicators รุ่นมาตรฐาน Series 2
  • จอ LCD ขนาดใหญ่ อ่านง่าย
  • การวัดขนาดโดยเกจ GO/±NG  ทำได้โดยกำหนดค่าสูงและต่ำของ Tolerance limits ผลตัดสินว่าผ่านหรือไม่ผ่าน (GO/±NG) สามารถแสดงผลแบบตัวอักษรใหญ่
  • จำนวนบวก (positive) / ลบ (negative) ซึ่งเป็นผลมาจากการเคลื่อนที่ขึ้น / ลงของสปินเดิลสามารถสลับได้
  • Internal calculations โดยใช้สูตรง่ายๆ [F(x)=Ax)]
  • ABSOLUTE linear encoder อินดิเคเตอร์ ID-C จะแสดงแกนหมุน “Absolute Position” จากจุดเริ่มต้นเมื่อเปิดเครื่องเสมอ ความเร็วในการตอบสนองที่ไม่จำกัด ยังช่วยขจัด over-speed errors.
  • หน้าปัด ID-C indicator สามารถหมุนได้ 330° เป็นมุมที่ออกแบบเพื่อให้อ่านค่าได้ง่าย
  • มาพร้อมกับ SPC data output.

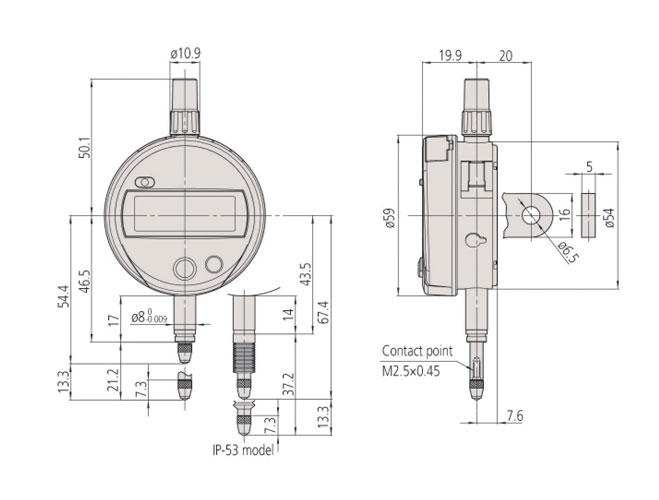

ABSOLUTE Digimatic Indicator ID-C Series 543-Standard Type

Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm, 0.001mm, .0005″/0.01mm, .0001”/0.001mm or .00005”/0.001mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. Response speed: Unlimited
Measuring force: Refer to the list of specifications
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 5,000 hours under normal use
Dust/Water protection level: IP42 or IP53 (dust-proof type)


Function
Origin-set/Preset, Zeroset, GO/±NG judgment, Counting direction switching, Power ON/OFF, Data output,inch/mm
conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error
Internal calculations using the simple formula of [F(x)=Ax)] are available


Optional Accessories
905338: SPC cable (40” / 1m)
905409: SPC cable (80” / 2m)
21EZA198: Spindle lifting lever (ISO/JIS type)*
21EZA199: Spindle lifting lever (ANSI/AGD type)*
21EZA105: Spindle lifting knob(12.7mm/5″ISO/JIS type)**
21EZA150:Spindle lifting knob(12.7mm/5″ ANSI/AGD type)**
21EZA197:Spindle lifting knob(25.4mm/1″,50.8/2″ models)
21EZA200:Spindle lifting knob(50.8mm/2″)
540774: Spindle lifting cable (stroke: 1”/25.4mm)
02ACA571: Auxiliary spindle spring for 25mm/1” models***
02ACA773: Auxiliary spindle spring for 50mm/2” models***
*Can be used on 12mm/.5” models only.
**Not available for low measuring force models.

ABS Digimatic Indicator ID-C-Standard Type


Inch/Metric

Order NoModelRangeAccuracyContact PointMeasuring ForceResolution *SwitchableTypeRemarks
543-391ID-C112MX.5in/ 12.7mm.0001inStem Ø 8mm
M2.5×0.45 Thread
Less than
1.5N
*.00005in 0.001mmISO/JIS
543-391BID-C112MX.5in/ 12.7mm.0001inStem Ø 8mm
M2.5×0.45 Thread
Less than
1.5N
*.00005in 0.001mmISO/JIS
543-392ID-C112EXB.5in/ 12.7mm.0001inStem dia3/8″,#4-48 UNF ThreadLess than
1.5N
*.00005in 0.001mm
ISO/JIS
543-392BID-C112EXB.5in/ 12.7mm.0001inStem dia3/8″,#4-48 UNF ThreadLess than
1.5N
.00005in 0.001mm
ISO/JIS
543-395ID-C112CMX.5in/ 12.7mm.0001inStem ø8mm M2.5×0.45 ThreadLess than
0.4-0.7N
*.00005in 0.001mm
ISO/JIS
Low measuring force
543-395BID-C112CMX.5in/ 12.7mm.0001inStem ø8mm M2.5×0.45 ThreadLess than
0.4-0.7N
.00005in 0.001mm
ISO/JIS
Low measuring force
543-396ID-C112CEX.5in/ 12.7mm.0001inStem dia 3 8 in
4-48 UNF Thread
Less than
0.4, 0.6, 0.7N
*.00005in 0.001mmANSI/AGDLow measuring force
543-396BID-C112CEX.5in/ 12.7mm.0001inStem dia 3 8 in
4-48 UNF Thread
Less than
0.4, 0.6, 0.7N
*.00005in 0.001mmANSI/AGDLow measuring force
543-401ID-C1012MX.5in/ 12.7mm.001inStem Ø 8mm
M2.5×0.45 Thread
Less than
0.9N
.0005in 0.01mmISO/JIS
543-401BID-C1012MX.5in/ 12.7mm.001inStem Ø 8mm
M2.5×0.45 Thread
Less than
0.9N
.0005in 0.01mmISO/JIS
543-402ID-C1012EX.5in/ 12.7mm.001inStem dia 3 8 in
4-48 UNF Thread
Less than
0.9N
.0005in 0.01mmANSI/AGD
543-402BID-C1012EX.5in/ 12.7mm.001inStem dia 3 8 in
4-48 UNF Thread
Less than
0.9N
.0005in 0.01mmANSI/AGD
543-405ID-C1012CMX.5in/ 12.7mm.001inStem ø8mm M2.5×0.45 ThreadLess than
0.2-0.5N
.0005in 0.01mm
ISO/JIS
Low measuring force
543-405BID-C1012CMX.5in/ 12.7mm.001inStem ø8mm M2.5×0.45 ThreadLess than
0.2-0.5N
.0005in 0.01mm
ISO/JIS
Low measuring force
543-406ID-C1012CEX.5in/ 12.7mm.001inStem dia 3 8 in
4-48 UNF Thread
Less than
0.2, 0.3, 0.4, 0.5N
.0005in 0.01mmANSI/AGDLow measuring force
543-406BID-C1012CEX.5in/ 12.7mm.001inStem dia 3 8 in
4-48 UNF Thread
Less than
0.2, 0.3, 0.4, 0.5N
.0005in 0.01mmANSI/AGDLow measuring force
543-471BID-C125MXB1in/ 25.4mm0.00012inStem ø8mm M2.5×0.45 ThreadLess than
1.8N
*.00005in 0.001mm
ISO/JIS
543-472BID-C125EXB1in/ 25mm.0001inStem dia 3 8 in
4-48 UNF Thread
Less than
1.8N
*.00005in 0.001mmANSI/AGD
543-475BID-C1025MXB1in/ 25.4mm.001inStem ø8mm M2.5×0.45 ThreadLess than
1.8N
.0005in 0.01mm
ISO/JIS
543-476BID-C1025EXB1in/ 25mm.001inStem dia 3 8 in
4-48 UNF Thread
Less than
1.8N
.0005in 0.01mmANSI/AGD
543-491BID-C150MXB2in/ 50.8mm0.00025inStem ø8mm M2.5×0.45 ThreadLess than
2.3N
*.00005in 0.001mm
ISO/JIS
543-492BID-C150EXB2in/ 50mm.0002inStem dia 3 8 in
4-48 UNF Thread
Less than
2.3N
*.00005in 0.001mmANSI/AGD
543-495BID-C1050MXB2in/ 50.8mm.0016inStem ø8mm M2.5×0.45 ThreadLess than
2.3N
.0005in 0.01mm
ISO/JIS
543-496BID-C112CEXB2in/ 50mm.0016inStem dia 3 8 in
4-48 UNF Thread
Less than
2.3N
.0005in 0.01mmANSI/AGD
