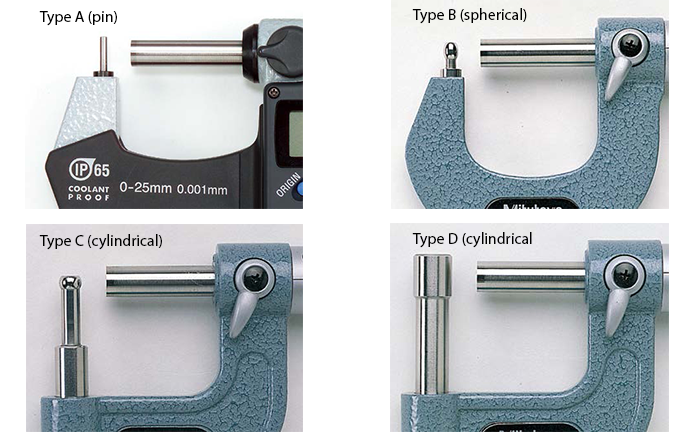

Anvil Type
Technical Data
- Battery for series 395 : SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
- Battery life: Approx. 2.4 years under normal use (for series 395)
- Length standard: Electromagnetic rotary sensor (for series 395)
- Standard accessories:
Reference bar, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models)
Spanner (301336), 1 pc.
Optional Accessories
- Connecting cables for series 395
1 m: 05CZA662
2 m: 05CZA663
- USB Input Tool Direct USB-ITN-B (2 m): 06AFM380B
- U-WAVE-T dedicated connection cable
160 mm: 02AZD790B
For foot switch: 02AZE140B
Wireless Data Output (U-WAVEfit)
- U-WAVE-TM 264-622 (IP67 type) , 264-623 (Buzzer type)
- U-WAVE-TMB Transmitter
Mitutoyo Bluetooth® U-WAVE 264-626 (IP type) , 264-627 (Buzzer type)
- Connecting unit for U-WAVE-TM/TMB : 02AZF310 (IP67/buzzer type common specification)
SPECIFICATIONS
Metric : Digimatic (LCD)
| Order No. |
Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
Remarks |
| 395-261-30 |
0 – 25 |
0.001 |
±3 |
Type A |
| 395-262-30 |
Type B |
| 395-263-30 |
Type C |
| 395-264-30 |
Type D |
Inch/Metric : Digimatic (LCD)
| Order No. |
Range (in) |
Resolution |
Maximum permissible error JMPE (in) |
Remarks |
| 395-362-30 |
0 – 1 |
0.00005 in/0.001 mm |
±0.00015 |
Type B |
| 395-363-30 |
Type C |
| 395-364-30 |
Type D |
Metric : Analog
| Order No. |
Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Remarks |
| 115-302 |
0 – 25 |
0.001 |
±3 |
Type A |
| 115-308 |
Type B |
| 115-303 |
25 – 50 |
Type A |
| 115-309 |
Type B |
| 115-315 |
0 – 25 |
Type C |
| 115-316 |
Type D |
Note: Optional connecting cable is available only for water-proof type (Digimatic model).
Inch : Analog
| Order No. |
Range (in) |
Graduation (in) |
Maximum permissible error JMPE (in) |
Remarks |
| 115-305 |
0 – 1 |
0.001 |
±0.00015 |
Type A |
| 115-313 |
0.0001 |
Type C |
| 115-314 |
Type D |
