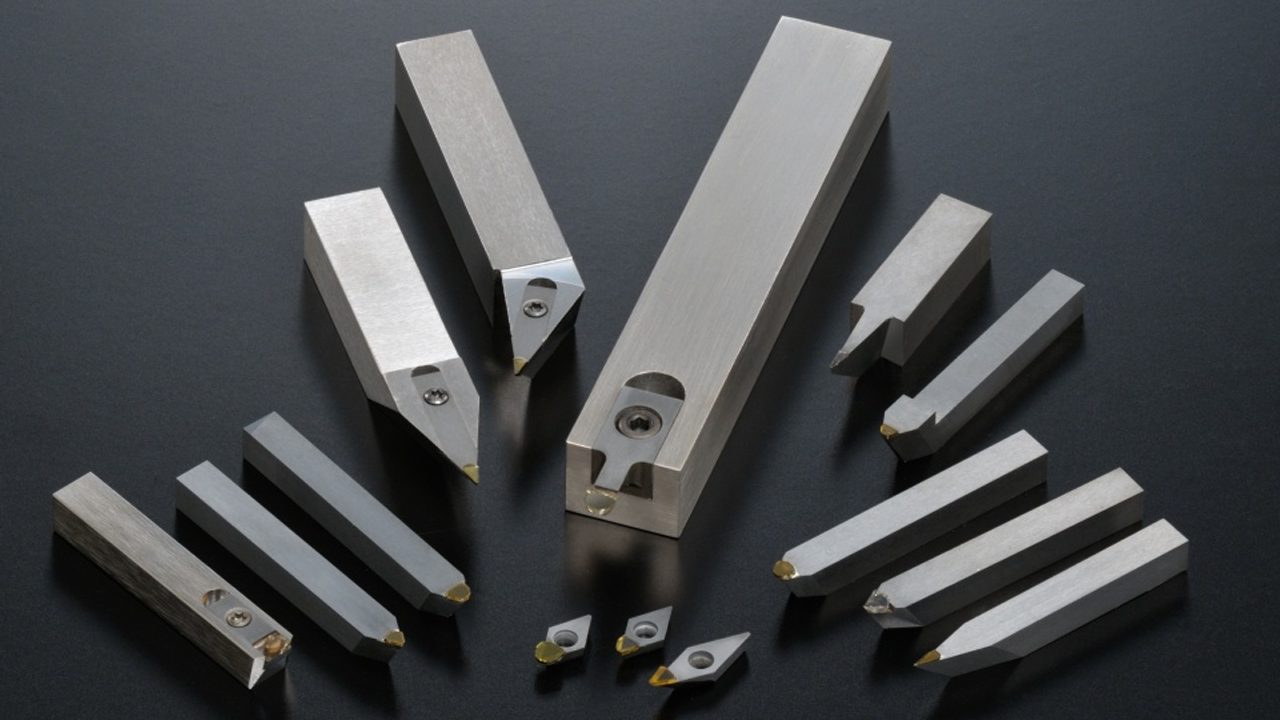

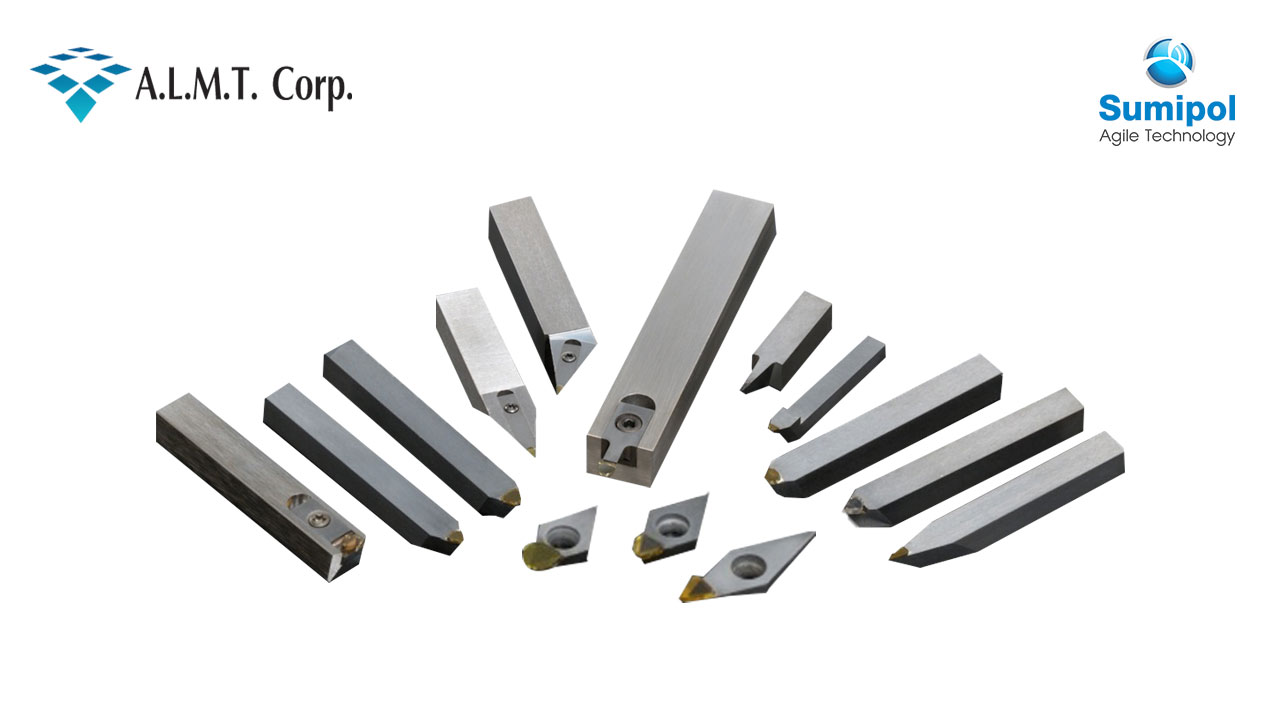

Turning Tools – Ultra-Precision UPC-R

UPC-R  series



This tool has a cutting edge with high precision profile within a wide working angle range to realize excellent shape machining.

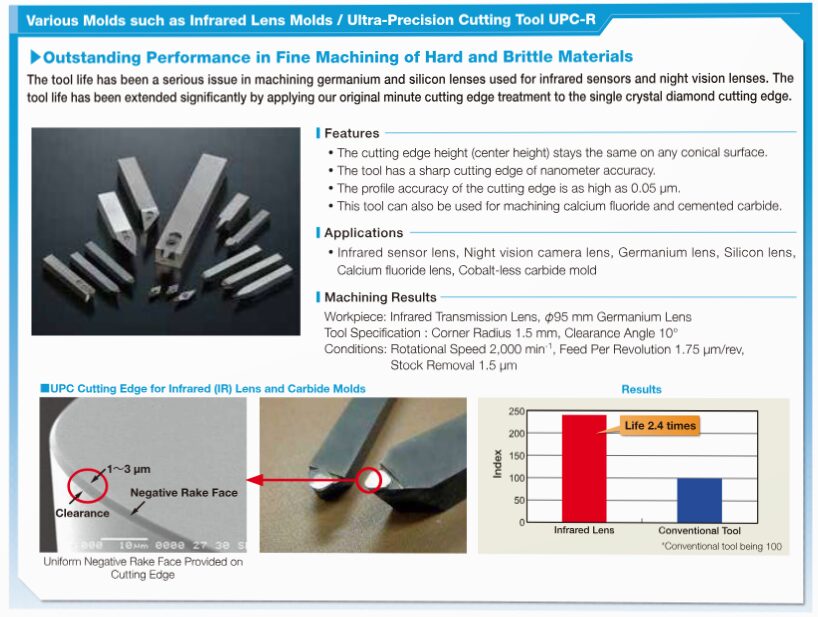

This tool exhibits excellent performance in ultra-precision machining of spherical and aspherical surfaces.

รหัสสินค้า: Turning Tools-UPC-R หมวดหมู่: ,

Exhibits excellent performance in ultra-precision machining of spherical and aspherical surfaces.

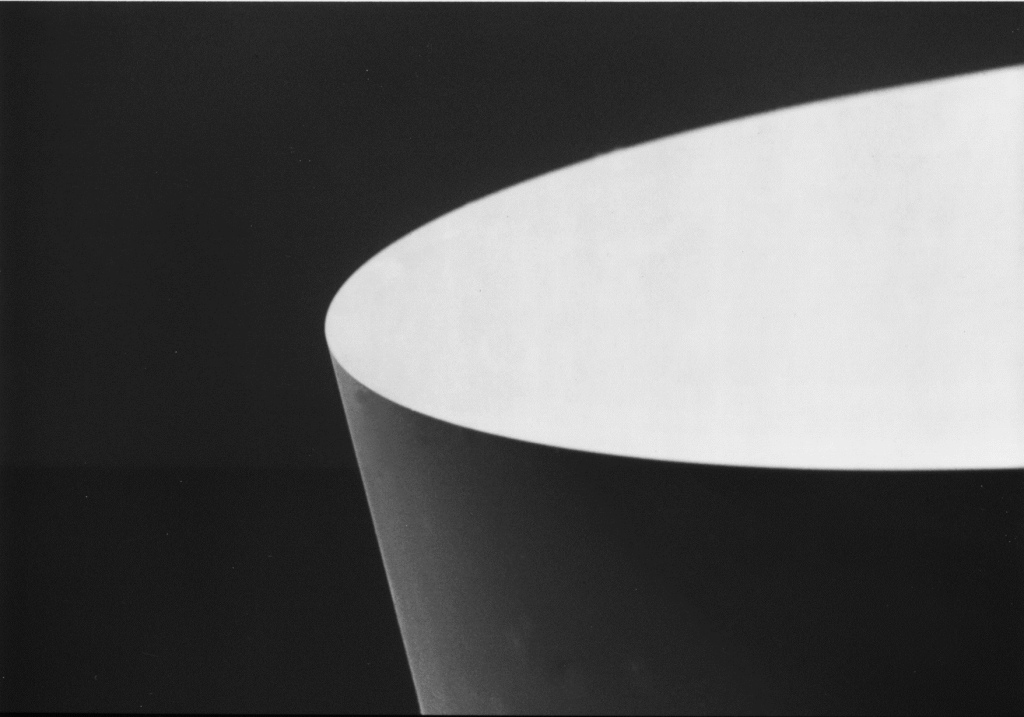

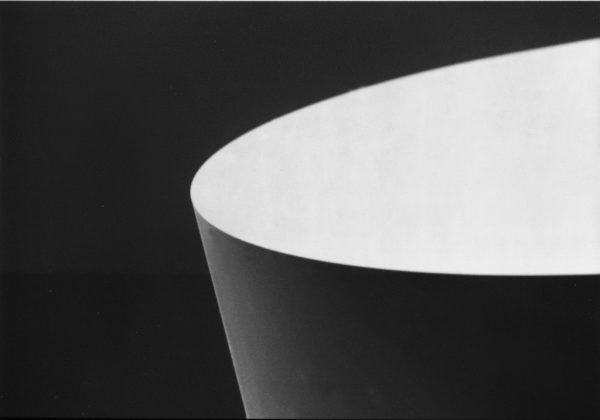

The cutting edge arc profile 50 nm (0.05 μm) has been realized within a wide range of working angle 90°.
Also, the cutting edge ridge has been finished accurately without fluctuation to produce surface roughness in the order or nanometer.



Characteristics


The records of the profile of cutting edge arc measured by our original measuring equipment of 5-nm resolution are attached to ensure thorough quality control.
※The records may not be attached depending on the size of R.

Applications


Molds of pickup lenses for CD, DVD and Blu-ray, molds of lenses for digital cameras,, molds of camera lenses for cell phones, PC and tablets, infrared lenses, spherical/aspherical mirrors for laser/X-rays, various spherical and aspherical lenses, profile machining with ultra-precision machine

Industries


  • Optical/precision equipment
  • semiconductor/electronics
  • others

Work Material


  • Nonferrous metal material
  • Cemented carbide/cermet
  • Glass/ceramics
  • Semiconductor material
  • Resin/rubber
  • Others

Processing Method


  • Turning
  • Others
