Mold Finish Master NPD – Direct milling on cemented carbide materials

SKU: Mold Finish Master NPD Categories: , ,

Nano-Polycrystalline Diamond Tool “SUMIDIA Binderless”



Features



  • SUMIDIA Binderless is a polycrystalline diamond that directly binds nanometer-sized diamond particles with high strength without using binders.
  • SUMIDIA Binderless is harder than single-crystal diamond and has no cleavability. Therefore, it enables machining of hard brittle materials such as carbides and enables new machining methods.
  • SUMIDIA Binderless is a pure diamond, but, unlike single-crystal diamonds, has no anisotropy. Therefore, it displays excellent wear resistance with less uneven wear.

Thanks to its polycrystalline structure, SUMIDIA Binderless has no cleavability peculiar to single-crystal diamonds and displays excellent fracture resistance.



Comparison of Structures and Hardness



Features

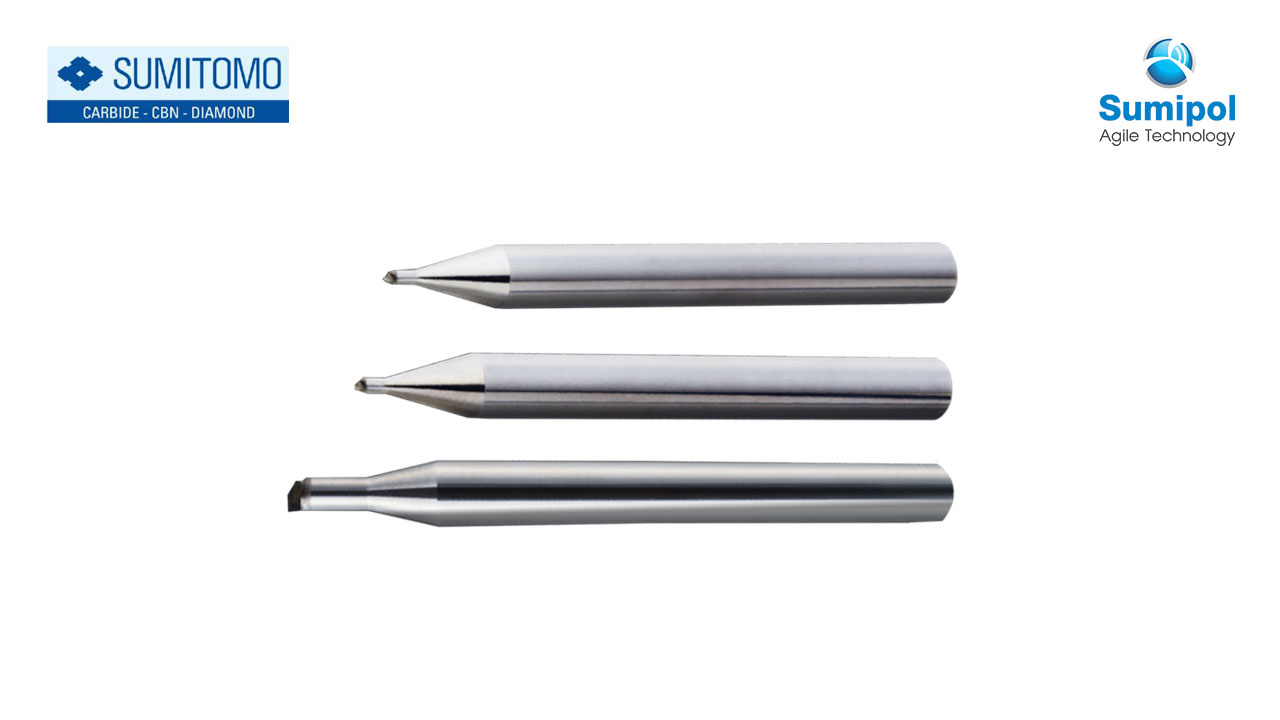

Mold Finish Master SUMIDIA BINDERLESS Ball-nose Endmills “NPD series”






The NPD series achieves direct mirror finishing of carbides, which is impossible for existing single-crystal or polycrystalline diamonds, by utilizing a harder nano-polycrystalline diamond cutting edge.



Ideal for Finishing of Hard, Brittle Materials Including Carbide
Provides excellent machined surface quality thanks to the sharp cutting edge and optimized edge treatment.



Enables High-Precision Machining and Achieves Long Tool Life
Maintains excellent dimensional accuracy for a long time thanks to the high contour accuracy of the cutting edge and the excellent wear resistance of diamonds.



Features
