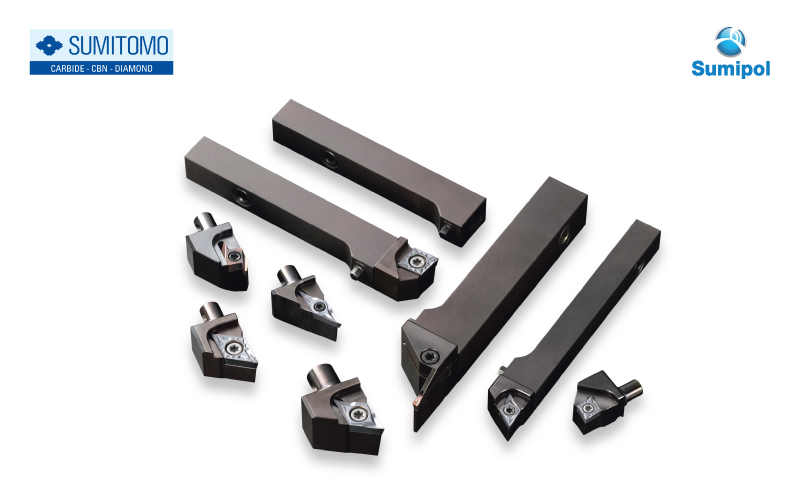

Features of AMP Series
- Indexable Head Type Quick Change Tool Holder APM series
- Tool changeover time reduced Mounting / removing the head alone improves workability and safety when changing the insert, reducing machine downtime at changeovers thus increasing productivity

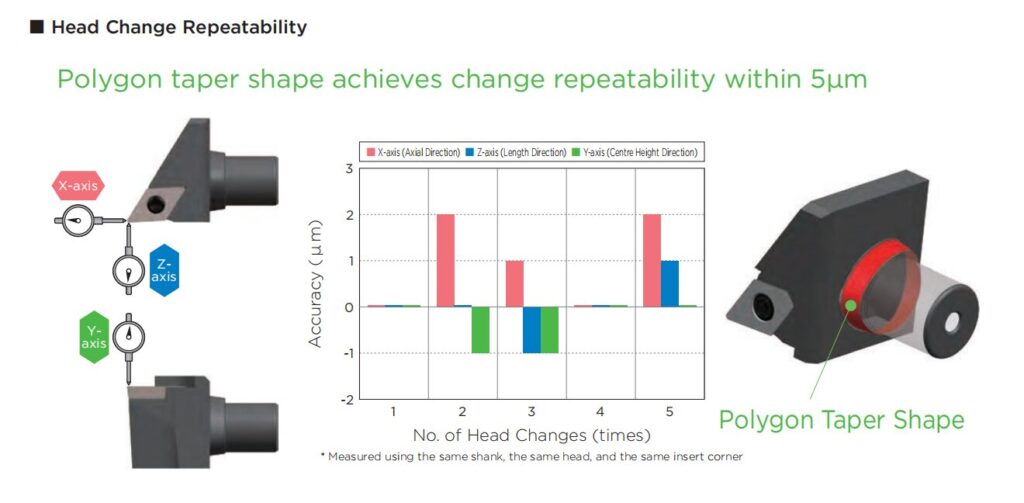

- Excellent head change repeatability High-accuracy polygon taper shape achieves change repeatability within 5μm
- Lineup of 10, 12 and 16mm shank sizes support a wide range of CNC autolathes, etc.
- Supports front turning, back turning, grooving, and cut-off
- Internal coolant supply design, supports coolant supply without hose

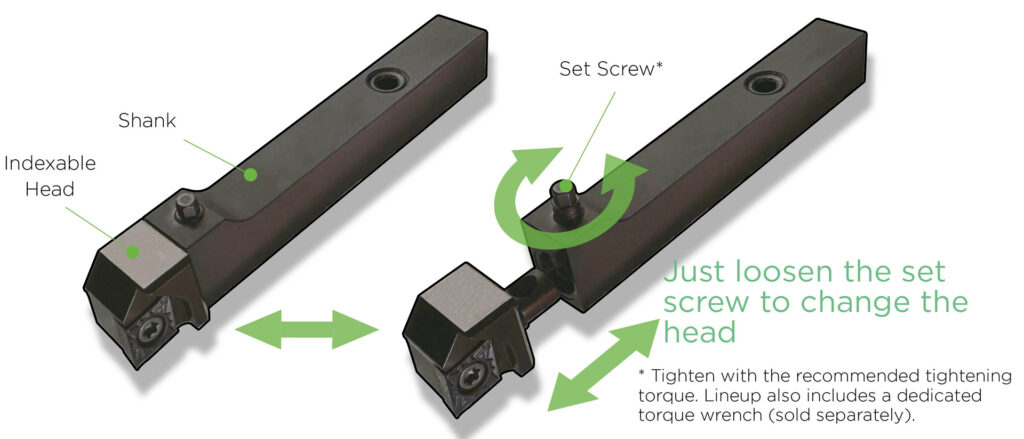

Head Change Structure
- Indexable heads can be selected to suit machining applications

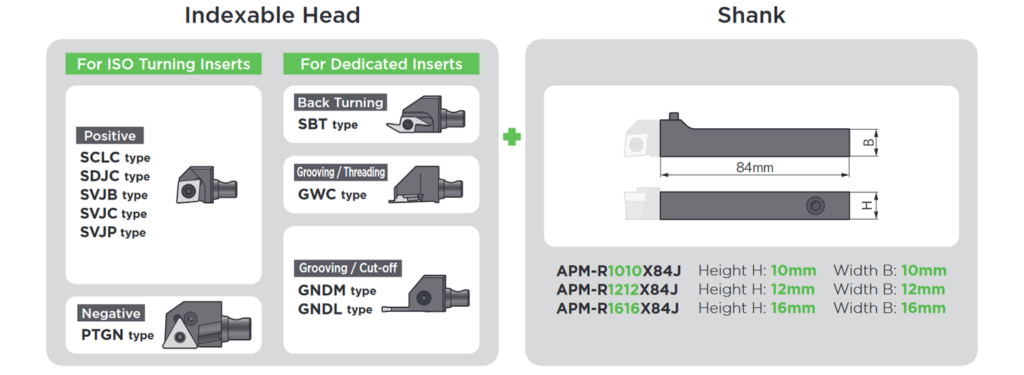

APM series Combination Examples
