Big Daishowa

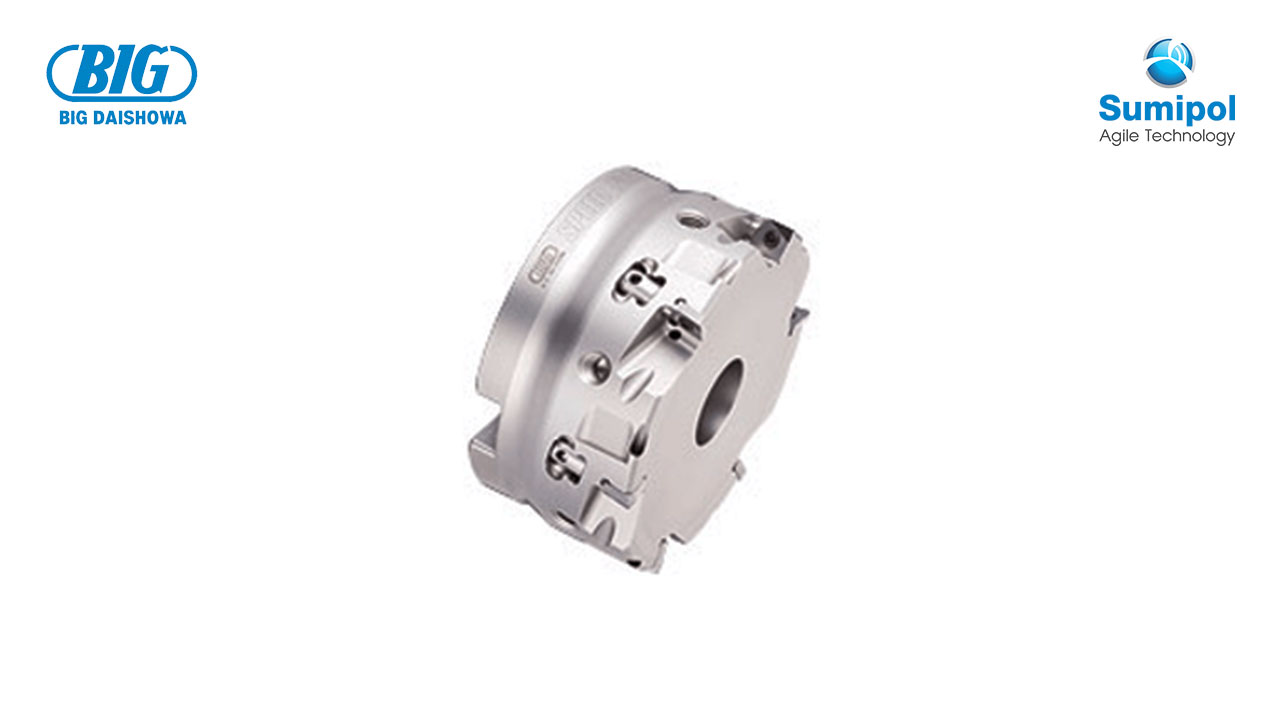

SPEED FINISHER – คัทเตอร์ความเร็วสูงตัดอะลูมิเนียมและเหล็กหล่อ

Cutter for cutting the surface of the workpiece Adjustable insert height

  • Cutter diameter  ∅50, ∅63, ∅80, ∅100, ∅125, ∅160
  • finish at high at speed cutting
  • Aluminum die casting ADC12 Rz=0.55μm Gray cast iron FC250 Rz=0.67μm
SKU: SPEED FINISHER Categories: ,
Speedily adjusts the cutting edge height

  • It has a simple and highly operable mechanism in which the cutting edge height is adjusted after clamping the insert by turning the lifting nut from the side, then directly pushing up the insert with the lifting screw


Coolant is supplied directly to the cutting tool tip.

In combination with the FMH face milling cutter chuck, coolant can be supplied directly to the cutting tool tip. Therefore, it can prevent melting and chip build-up in aluminum milling.










Adjustable in μm increments. Exclusive presetter




Presetter that allows quick adjusment in micron increments With a soft touch function that helps protect Do not damage the tip of the fine cutting tool.Soft, easy to use, able to position the tip of the machine The hand cuts perfectly in a short time. which even measures tools Contactless cannot be done.Please order together with the SPEED FINISHER body.














Combines light weight and high rigidity

The slim body allows increased rigidity and reduced vibration and deflection. Therefore, height difference of the machined surface is minimized. Also, as it is lighter than other cutters, it can be safely used with a small #30 taper machining center.
