Mitutoyo

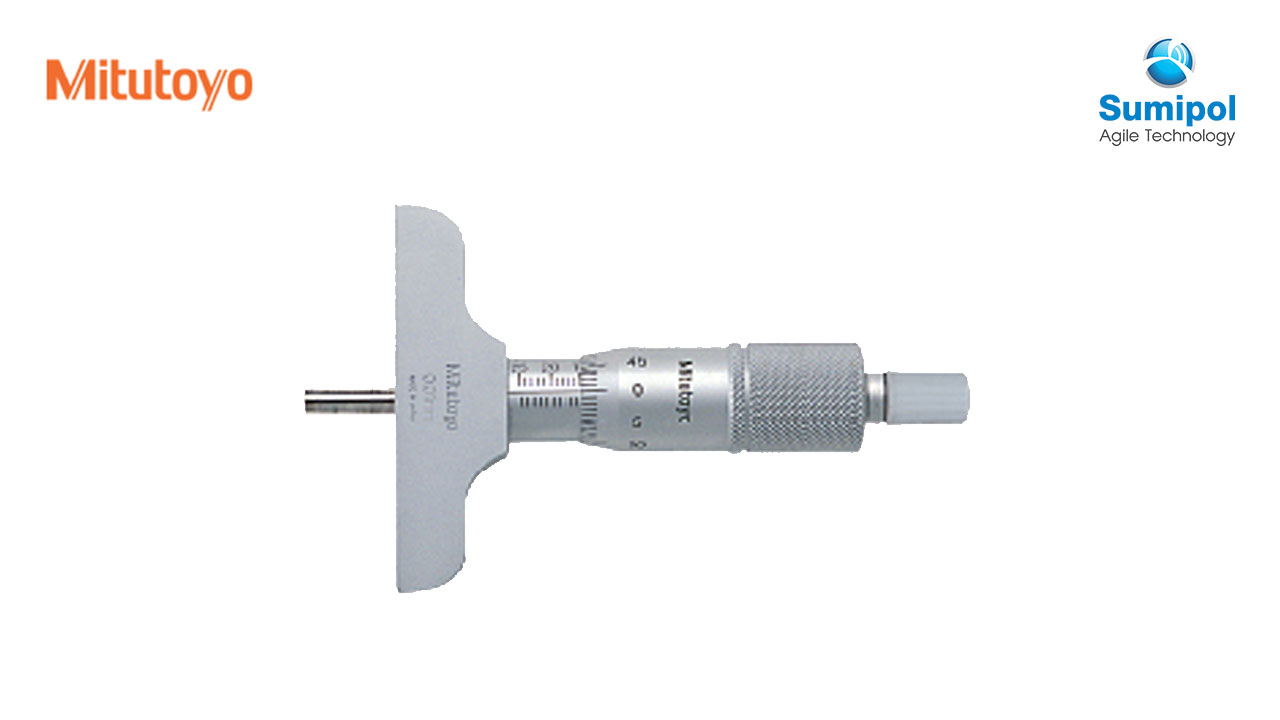

Depth Micrometer Series 128

  • Ø4mm measuring rod.
  • With measuring rod clamp.
  • With carbide-tipped measuring rod model is available.
  • With ratchet stop for constant force.

Technical Data
Accuracy: ±3µm for micrometer head feed
Graduation: 0.01mm or .001¡±
Flatness of reference face: 1.3¥ìm for 63.5mm width base, 2¥ìm for 101.6mm width base
Flatness of measuring rod face: 0.3¥ìm
Parallelism between reference face and measuring rod face:
(4+L/50)¥ìm, L=Max. measuring length (mm)
Measuring rod diameter: 4mm
*with carbide-tipped measuring rod
