Mitutoyo

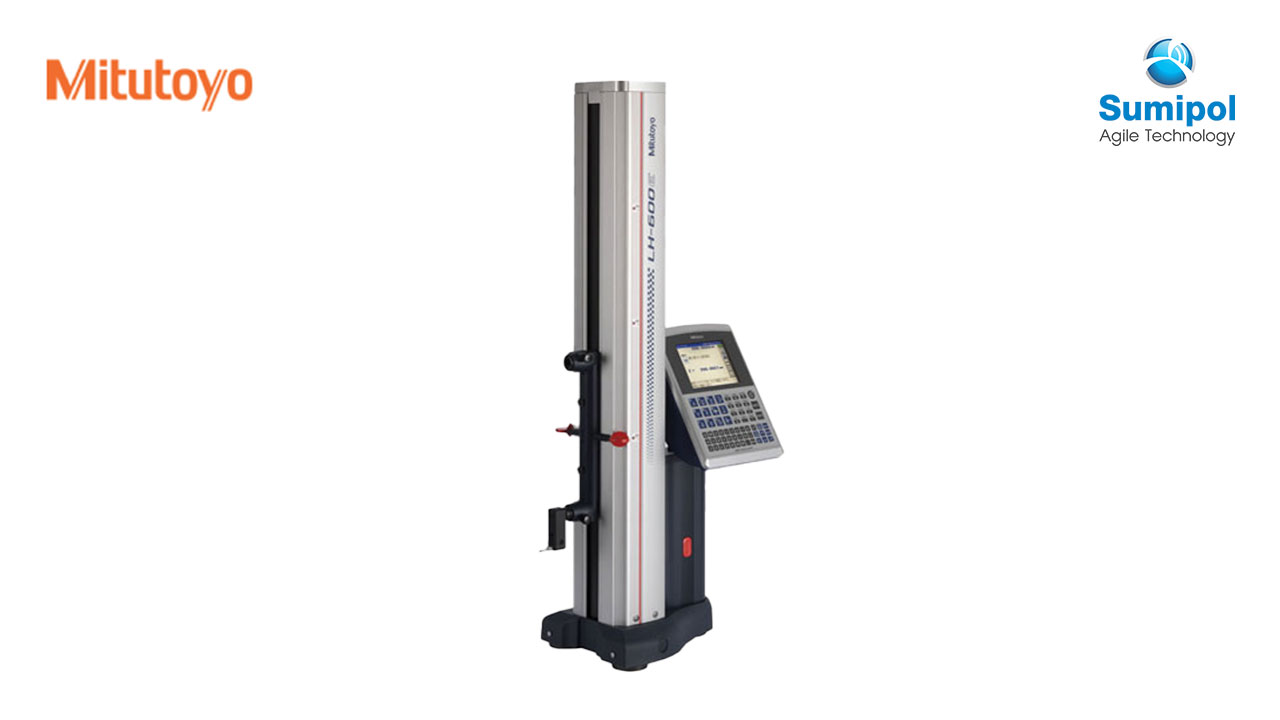

Linear Height LH-600E/EG – Series 518

  • Excellent accuracy of (1.1+0.6L/600)μm with 0.1μm/0.5μm resolution/repeatability.
  • Perpendicularity (frontal) of 5μm and straightness of 4μm are guaranteed.
  • Pneumatic full/semi-floating system allows adjustment of air-cushion height.
  • Basic statistical functions are provided and, additionally, RS-232C / USB data output provides the option of evaluating measurement data externally with SPC software on a PC.
  • One-key operation for running a semi-automatic measurement.
  • Data entry from a Digimatic tool.

Technical Data
Measuring range: 0 – 38” / 0 – 972mm
Slider stroke: 24” / 600mm
Resolution: 0.0001 / 0.001 / 0.01 / 0.1mm or (switchable)
0.0001 / 0.001 / 0.01 / 0.1mm / .000001” / .00001” / .0001” / .001”
Accuracy at 20°C: Refer to the list of specifications.
Floating method: Full / semi-floating with built-in air compressor
Display:TFT LCD (color)
