Fanuc

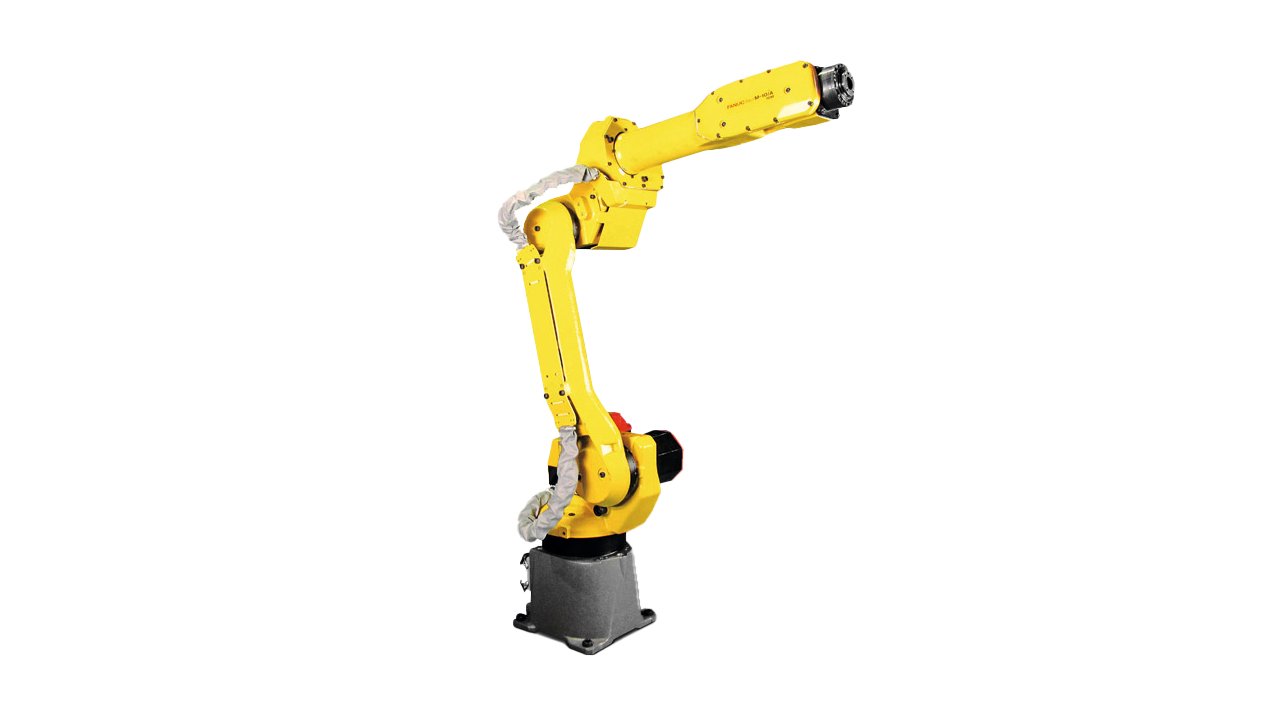

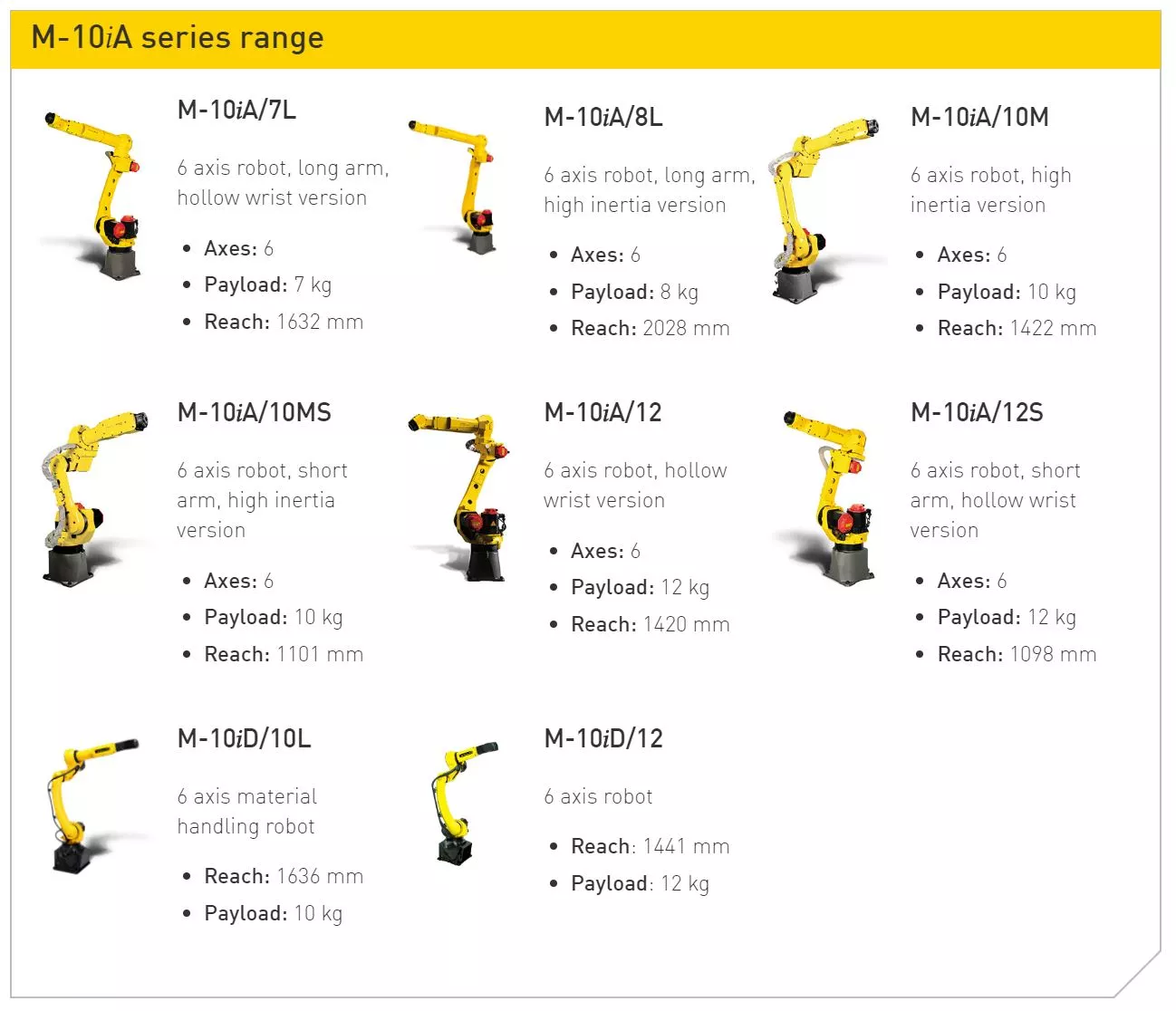

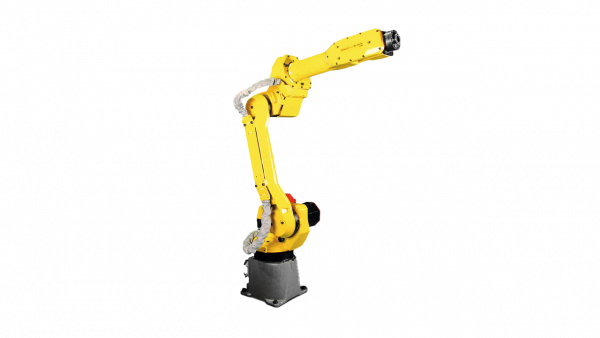

M-10 Series

The fast slimline solution to all your small handling jobs

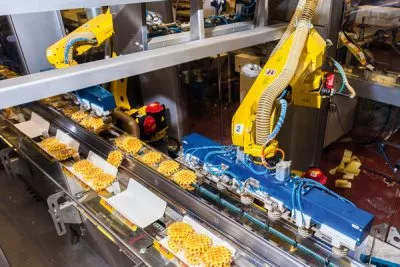

The fastest handling robot in its class, the M-10 series delivers improved throughput and optimised cycle times across a wide range of pick, place and machine tending operations. Weighing just 130 kg, the M-10 boasts a 12 kg payload, very high axis speeds and acceleration resulting in high wrist movements. Slim cable-integrated arm and hollow wrist assembly support make for easy operation even in confined work areas.




The light payload specialist

Superlative axis speeds and acceleration make the FANUC M-10 the pick and place specialist for payloads of up to 12 kg. Sealed bearings and brushless, maintenance-free AC motors provide protection and improve reliability for longer lifetime and minimum downtimes.






Highlights of M-10 industrial robots



Slim wrist design for easy access

Featuring a slim wrist interference radius, the FANUC M-10 is designed for easy integration into small work cells.



A strong wrist for handling

Capable of lifting up to 12 kg, the M-10 series heavy-duty wrists make it deal for loading and unloading operations. Discover the 12 kg payload model



No external cables to catch or wear

Internal cable routing through the J3 arm and J6 wrist extends cable life and prevents the risk of cable interference.



The right wrist for the job

Hollow or in-line wrist for more strength and stability, improved cable protection and easy maintenance. IP67 waterproof wrist and J4 arm suitable for water jet and die cast applications.



More space for equipment

An additional mounting facility on the J3 arm enables close mounting of end effector control equipment.



Integrated services

Integrated air and electrical services consisting of 8 inputs and 8 outputs as standard.

แบบสอบถาม

Product Name : M-10 Series
