ERON

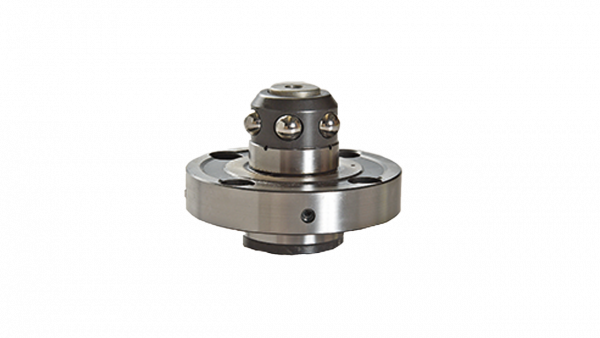

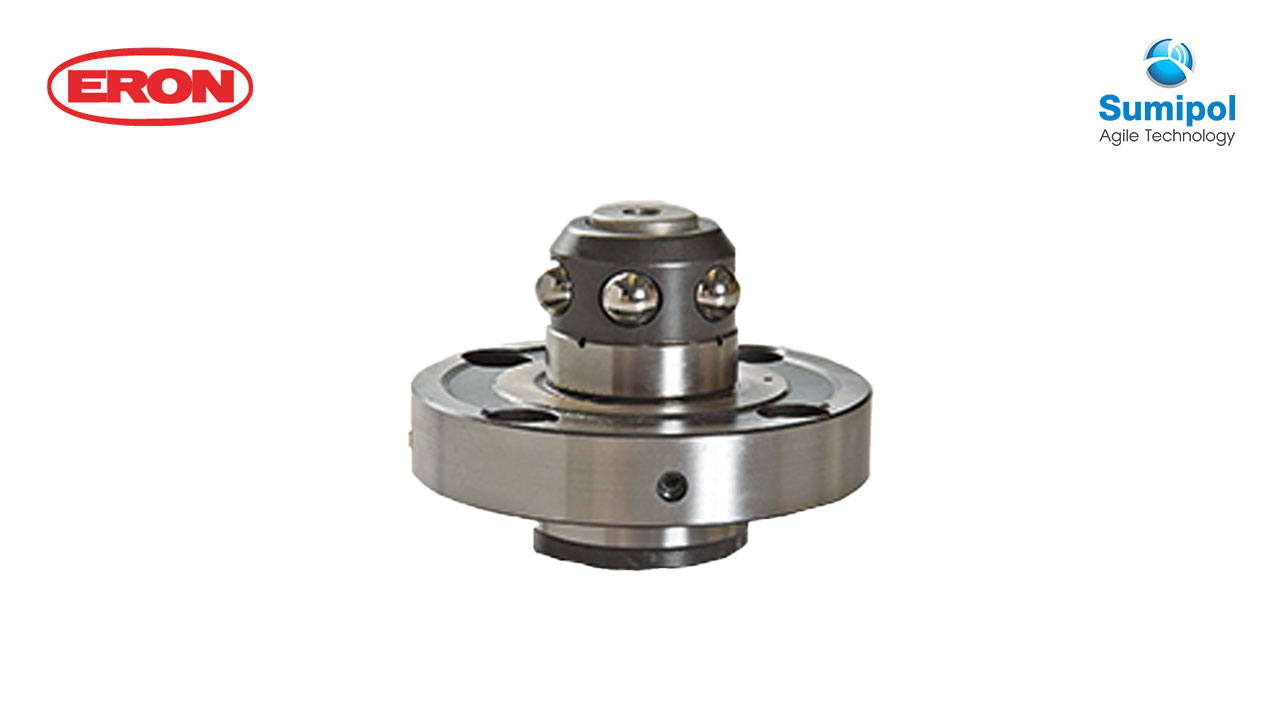

Q-LOCK ELEMENTS PINS (Hydraulic Type, Double Action)

Material: Main body : Stainless steel(SUS440C)

Heat treatment: Main body : Hardened(HRC55)

Feature

  • Air blowing for checking seating.
  • Stronger clamping force for heavy cutting.
  • Both clamp/un-clamp by hydraulic. By switching valve,can be used for auto-jig exchanging system.
หมวดหมู่: ,

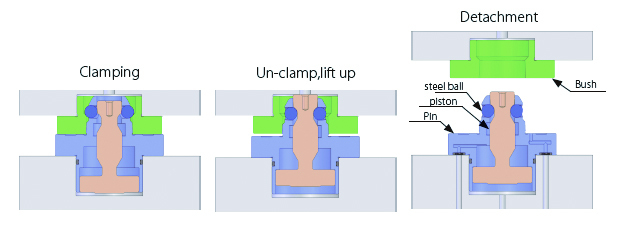

Usage



Mounting Dimensions

No. ＡH7 B C D E+0.30 F G
QLH26D 29 30 28.5 10 15 48 M5
QLH32D 35 36 34.5 10 15 58 M6
QLH40D 42 43 41.5 10 18 72 M6
QLH48D 53 54 52.5 10 21 87 M8

※Dia.pin’s top position and tapped hole are as per drawing, so machine tapped holes and port holes to follow the direction of dia.



Structural drawing



Specifications

Type Hydraulic type, double action
Drive system Clamping Hydraulic
Un-clamp
№ QLH26D*P QLH32D*P QLH40D*P QLH48D*P
Clamping force (kN) at 0.5MPa 3 7 10 16
Lift up force(kN) at 0.5MPa 1.5 2.7 4 6
Clamping stroke(mm) 4.5 5 6 7
Lift-up amount (mm) 1
Cylinder volume(cm3) Clamping side 0.7 1.5 2.6 4.3
Un-clamp side 1.4 2.7 4.8 8.6
Max. working pressure(MPa) 5
Min. working pressure(MPa) 2
Proof pressure(MPa) 7
Recommended air blowing pressure(MPa) 0.5
Fluid Dry air
Ambient temperature (℃) 0～65
Weight(kg) 0.4 0.6 1.0 1.8

SPECIFICATIONS



Type No. Outer Diameter Inner Diameter Overall Diameter Weight (kg)
Locating pin QL03RB 66 32 29.5 0.4
Locating pin QL07RB 90 40 30 0.8
Locating pin QL10RB 106 48 35.5 1.2
Locating pin QL16RB 120 55 41 1.8
Locating pin QL25RB 130 55 43 2.2
Clamp pin QL03CB 66 31.9 29.5 0.4
Clamp pin QL07CB 90 39.8 30 0.8
Clamp pin QL10CB 106 47.8 35.5 1.2
Clamp pin QL16CB 120 54.8 41 1.8
Clamp pin QL25CB 130 54.8 43 2.2
