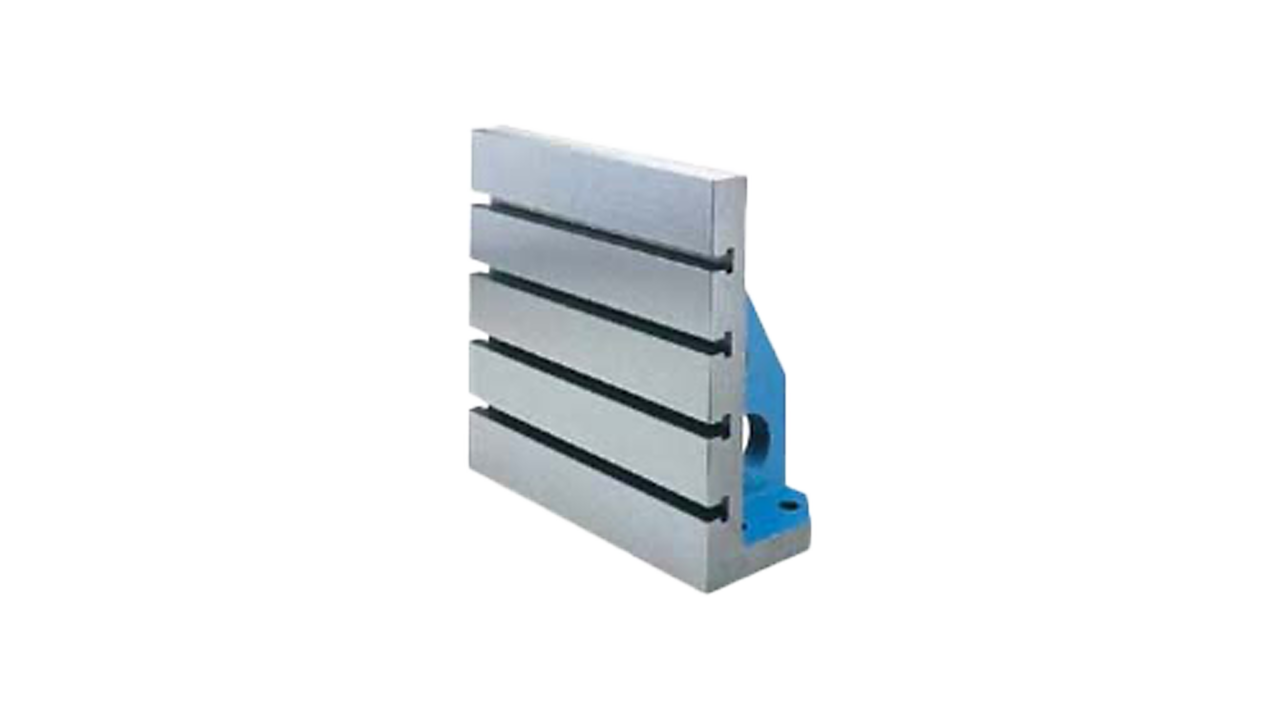

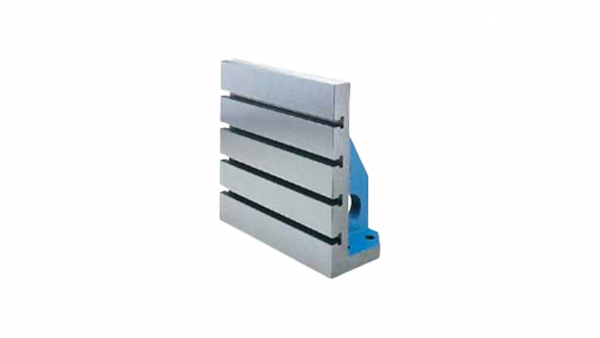

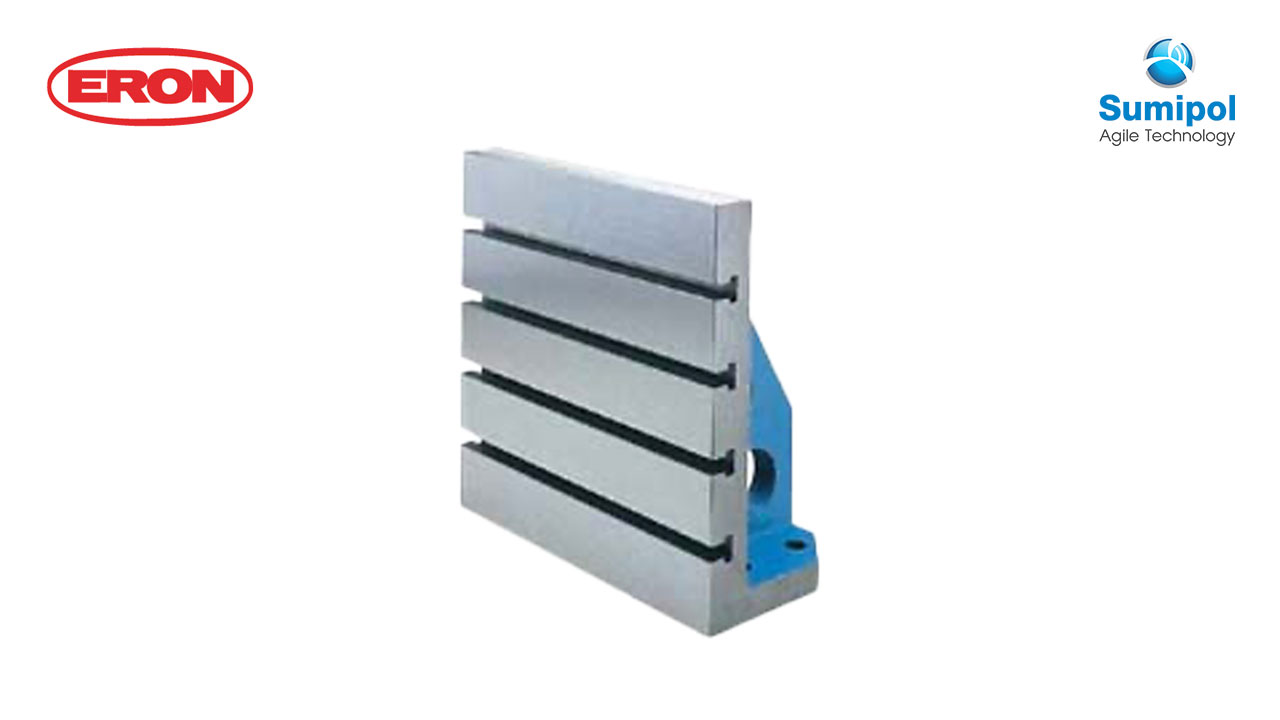

MC T-SLOTTED ANGLE PLATES (T-SLOT TYPE)
Material: FC25
Heat treatment: Annealing
Surface treatment: Painting (Cast Surface)
Feature
- Has mounting holes for the horizontal machining center.
SPECIFICATIONS
| No. | Overall width |
Depth | Overall height |
Mounting Hole Diameter |
Number of Mounting Holes |
Finish | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GTP400 | 360 | 200 | 400 | φ18 | 6 | Ground | 50 |
| GTP500 | 500 | 250 | 500 | φ18 | 6 | Ground | 156 |
| GTP630 | 600 | 300 | 600 | φ18 | 6 | Ground | 219 |
| GTP800 | 800 | 400 | 800 | φ18 | 6 | Machined | 526 |
