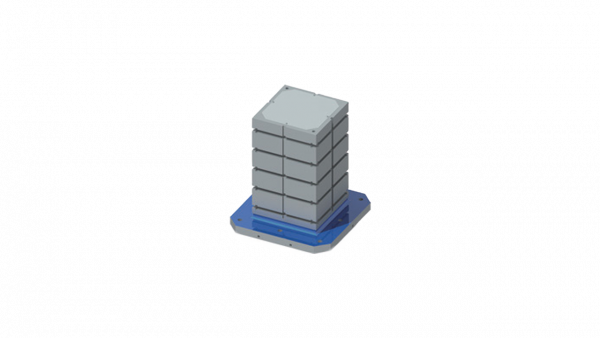

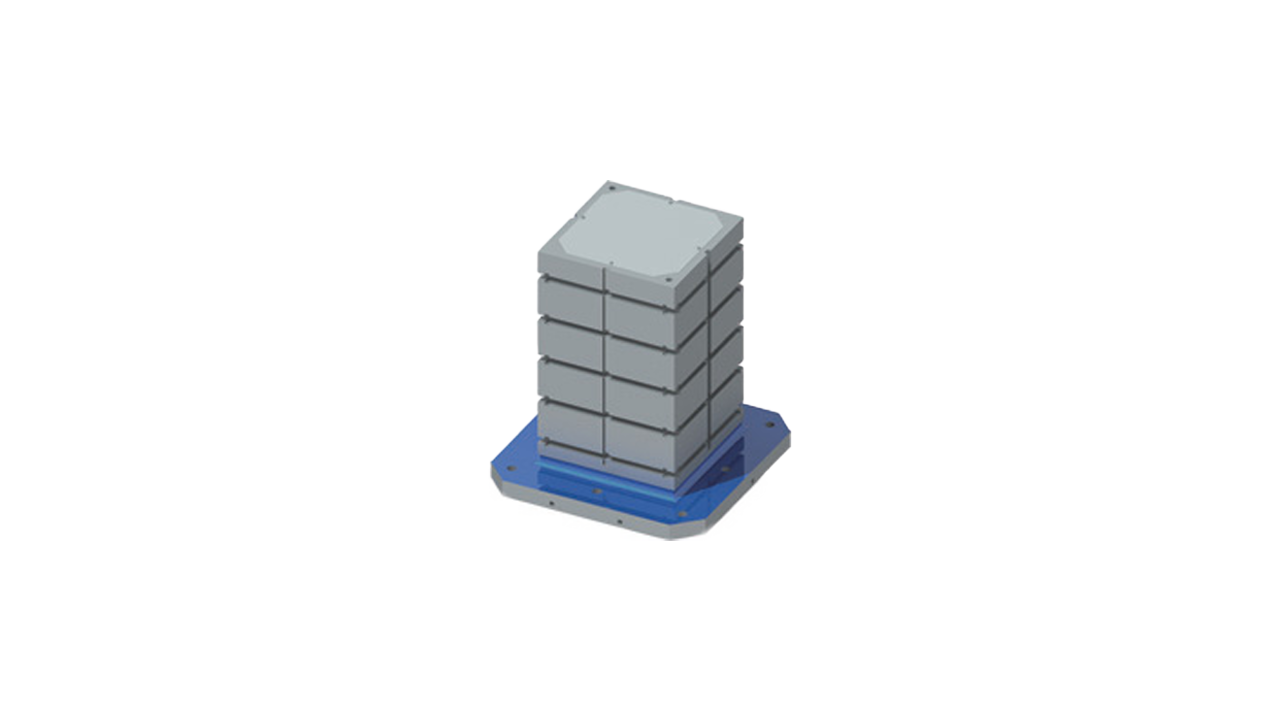

MC TOOLING BLOCKS (4 FACES/STANDARD T-SLOT TYPE)
Material: FC25
Heat treatment: Annealing
Surface treatment: Painting (Cast Surface)
Feature
- Type with T-slots and U-slots in addition to the standard specifications.
- .4-.5mm of self-cut allowance is included on the used surface.
- The same accuracy as the machine you are using is possible from the self-cut.
- Bottom and 2 adjacent edge locator surfaces can be ground finish, and top surface of base plate can be machined finish as options.
【Accessories】Top Plates, Set Screws for Top Plate, Eye Bolts
* Custom-made products to suit your specifications are also available.
SPECIFICATIONS
No. | Base | Overall height | Width of column | Mounting Hole Diameter | Number of Mounting Holes | Weight (kg) |
TGV04-20045 | 400 | 450 | 200.8 | φ18 | 4 | 125 |
TGV04-25050 | 400 | 500 | 250.8 | φ18 | 4 | 160 |
TGV04-20055 | 400 | 550 | 200.8 | φ18 | 4 | 147 |
TGV04-25055 | 400 | 550 | 250.8 | φ18 | 4 | 174 |
TGV04-25060 | 400 | 600 | 250.8 | φ18 | 4 | 184 |
TGV05-25055 | 500 | 550 | 250.8 | φ18 | 4 | 209 |
TGV05-30055 | 500 | 550 | 300.8 | φ18 | 4 | 237 |
TGV05-35055 | 500 | 550 | 350.8 | φ18 | 4 | 262 |
TGV05-30065 | 500 | 350 | 300.8 | φ18 | 4 | 267 |
TGV05-25070 | 500 | 700 | 251 | φ18 | 4 | 244 |
TGV06-30060 | 630 | 600 | 300.8 | φ18 | 8 | 314 |
TGV06-45060 | 630 | 600 | 450.8 | φ18 | 8 | 471 |
TGV06-40070 | 630 | 700 | 401 | φ18 | 8 | 491 |
TGV06-30075 | 630 | 750 | 301 | φ18 | 8 | 364 |
TGV06-45075 | 630 | 750 | 451 | φ18 | 8 | 574 |
TGV08-40070 | 800 | 700 | 401 | φ18 | 8 | 610 |
TGV08-50080 | 800 | 800 | 501 | φ18 | 8 | 794 |
TGV08-55090 | 800 | 900 | 551 | φ18 | 8 | 951 |
TGV10-50085 | 1000 | 850 | 501 | φ22 | 10 | 1156 |
TGV10-60105 | 1000 | 1050 | 601 | φ22 | 10 | 1567 |
Optional Ground Finish and Machined Finish
№ | K | L |
---|---|---|
□400 | 0.01/500 | 0.01/300 |
□500 | 0.01/500 | 0.01/300 |
□630 | 0.01/500 | 0.01/300 |
□800 | 0.01/500 | 0.01/300 |
□1000 | 0.01/500 | 0.01/300 |
