ERON

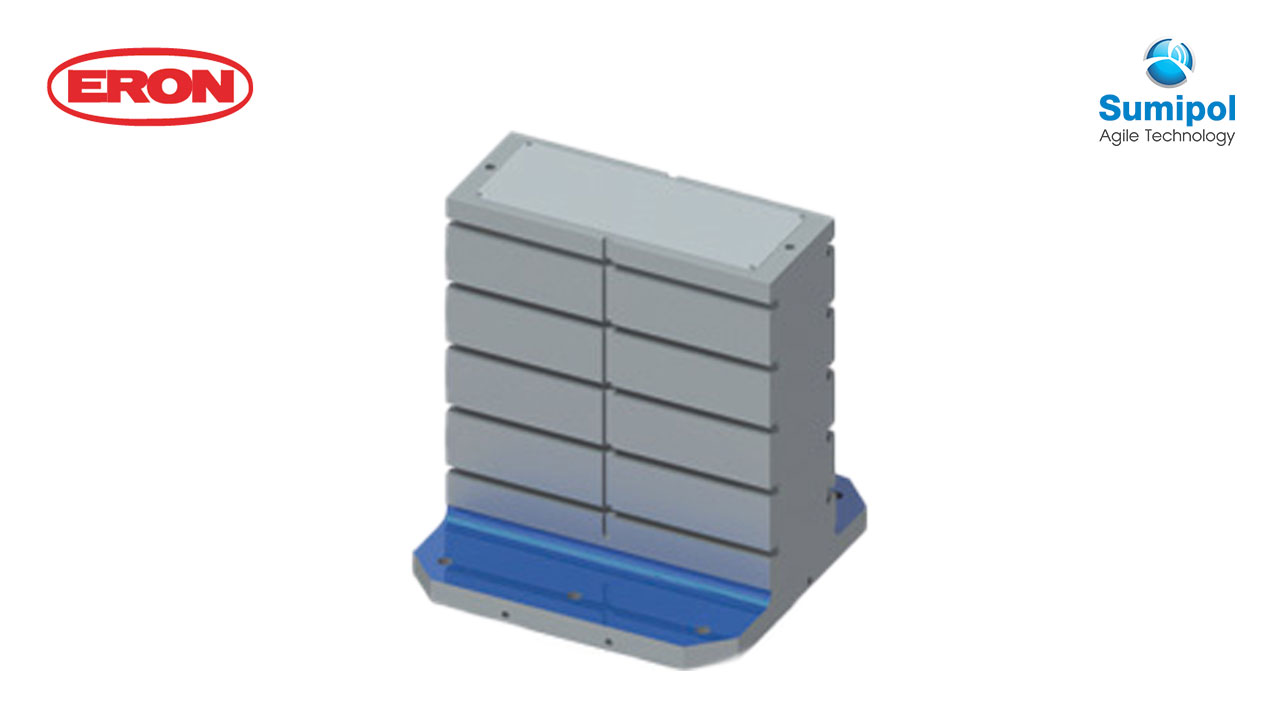

MC TOOLING BLOCKS (2 FACES/STANDARD T-SLOT TYPE)

Material: FC25
Heat treatment: Annealing
Surface treatment: Painting (Cast Surface)

Feature

  • Type with T-slots and U-slots in addition to the standard specifications.
  • .4-.5mm of self-cut allowance is included on the used surface.
  • The same accuracy as the machine you are using is possible from the self-cut.
  • Bottom and 2 adjacent edge locator surfaces can be ground finish, and top surface of base plate can be machined finish as options.

【Accessories】Top Plates, Set Screws for Top Plate, Eye Bolts

* Custom-made products to suit your specifications are also available.

Download Catalogue
หมวดหมู่: ,

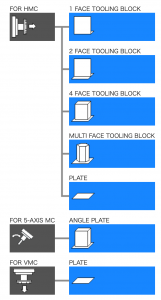

BASE ELEMENTS

SPECIFICATIONS

No. Base Overall height Width of
column		 Mounting Hole
Diameter		 Number of
Mounting
Holes		 Weight (Kg)
TGV04S-15035 400 350 150.8 φ18 4 141
TGV04S-20045 400 450 200.8 φ18 4 189
TGV04S-25050 400 500 250.8 φ18 4 227
TGV04S-15060 400 600 150.8 φ18 4 219
TGV05S-20050 500 500 200.8 φ18 4 265
TGV05S-25055 500 550 250.8 φ18 4 308
TGV05S-22060 500 600 220.8 φ18 4 316
TGV05S-25070 500 700 251 φ18 4 376
TGV06S-20060 630 600 200.8 φ18 6 411
TGV06S-25070 630 700 251 φ18 6 490
TGV06S-30070 630 700 301 φ18 6 518
TGV06S-25080 630 800 251 φ18 6 547
TGV08S-30080 800 800 301 φ18 6 740
TGV08S-40080 800 800 7401 φ18 6 793
TGV08S-50090 800 900 501 φ18 6 951
TGV10S-40070 1000 700 401 φ22 6 1155
TGV10S-30080 1000 800 301 φ22 6 1184



Optional Ground Finish and Machined Finish

№ K L
□400 0.01/500 0.01/300
□500 0.01/500 0.01/300
□630 0.01/500 0.01/300
□800 0.01/500 0.01/300
□1000 0.01/500 0.01/300
