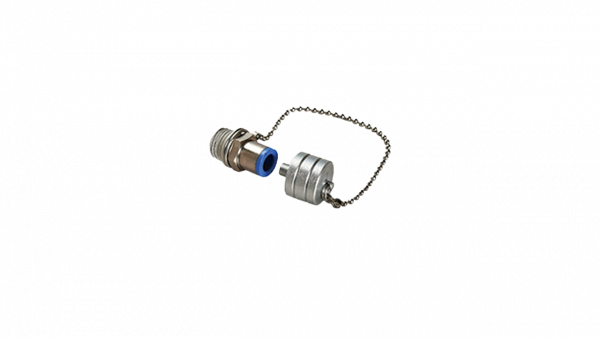

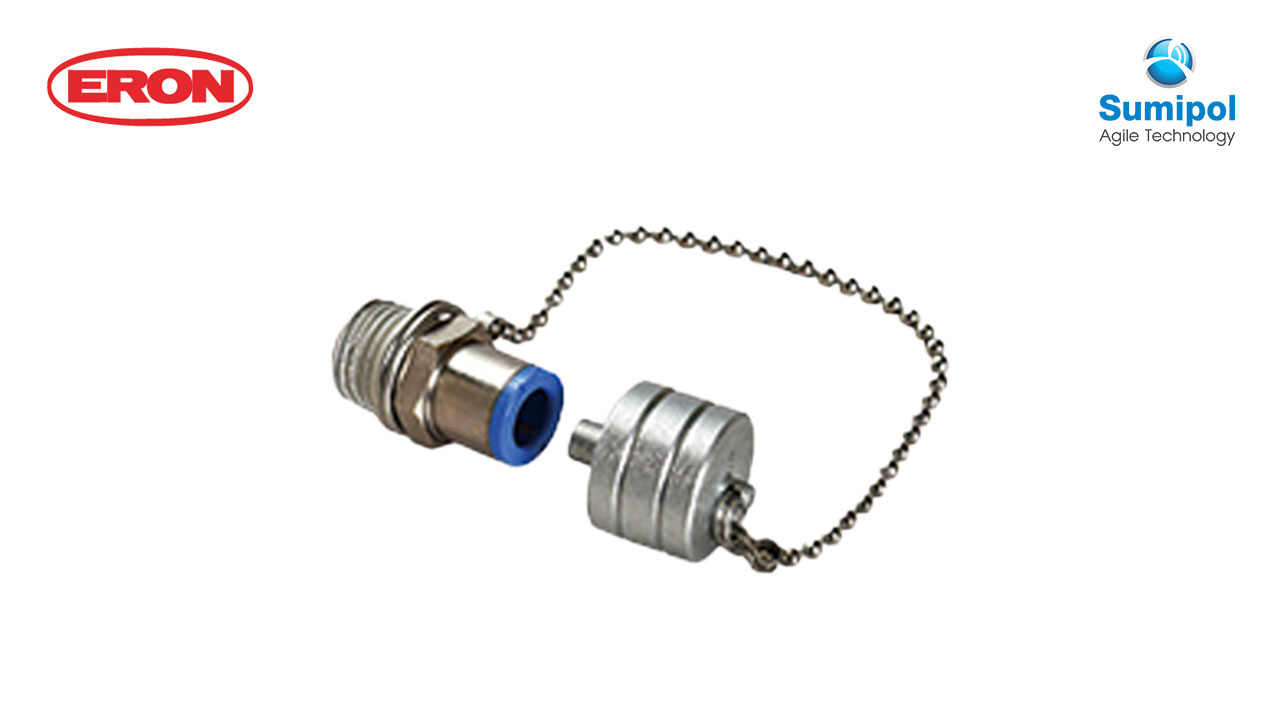

AIR BLOWING GUN VALVES

Material
Cap : Medium carbon steel(S45C)
Connector Cap : C3604(Brass rod)

Feature
Unclamp operation with pneumatic, single action type can be performed by air blowing gun for higher efficiency.(no needconnections/disconnection, or
switching by valve)

[Functions]

  • After air injections by air blowing gun, un-clamping conditions of Q-lock elements can be kept for a while.
  • After inserting cap into valve body, air can be exhausted,and Q-lock elements become clamping conditions.

[Notes]

  • Tip of air blowing gun must be taper type or rubber coating ones.(less leakage compared with metal one, and less damage on resin.)
  • Air tubes can not be used.
  • O.05MPa of pressure loss must be considered.

Usage


Exchanged jigs must be set on
fixed plates.
Cap must be inserted into valve
body for air exhaust which led to
clamping.
Taking cap off, and injecting air
into body, then getting nclamping

Specifications




Max. working pressure (MPa)1
FluidDry, and air after passing fi lter
Ambiente temperature (℃)0~60



Dimensions of mounting process


PressureWeight
(g)
QLA06Gunder 1 MPa40

แบบสอบถาม

Product Name : AIR BLOWING GUN VALVES
