ERON

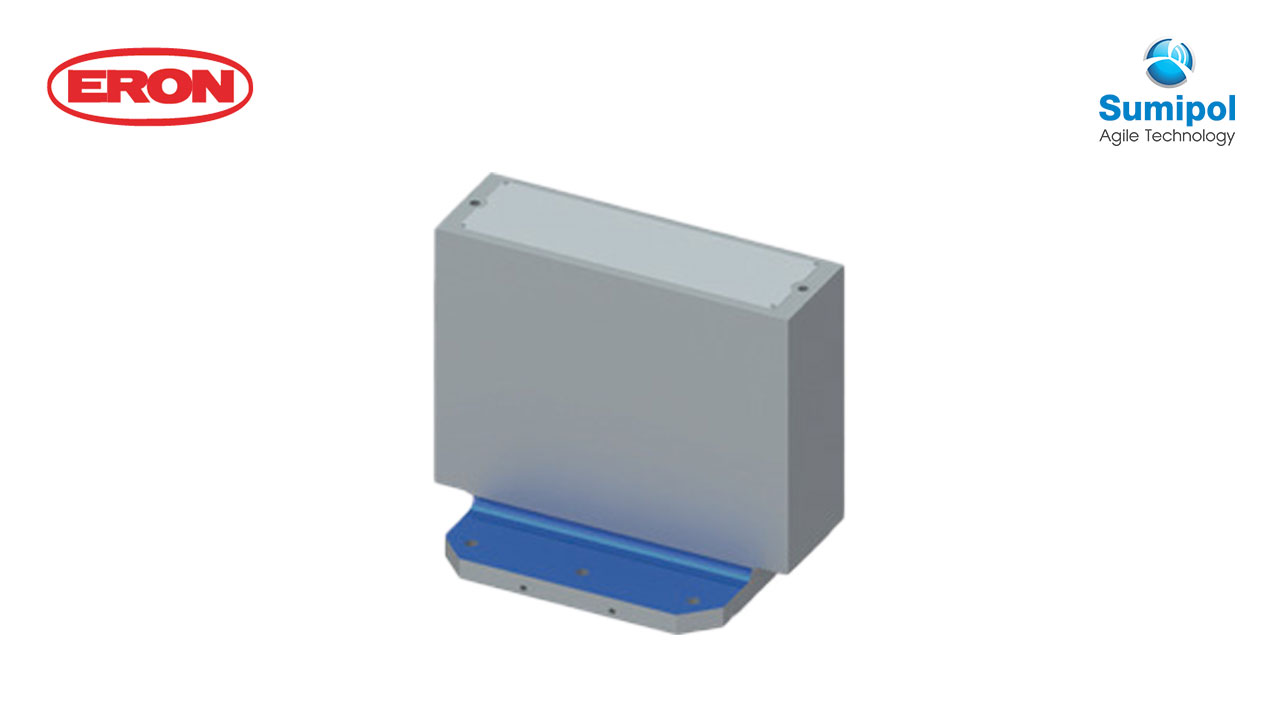

MC TOOLING BLOCKS (2 FACES/OVERHANG TYPE)

Material: FC25
Heat treatment: Annealing
Surface treatment: Painting (Cast Surface)

Feature

  • The used surface, which is larger than the base dimensions, is effective for a large workpiece or multiple workpieces.
  • .4-.5 mm of self-cut allowance is included on the used surface.
  • The same accuracy as the machine you are using is possible from the self-cut.
  • Your preferred machining such as tapping and grooves can be done using the machine you are using.
  • Bottom and 2 adjacent edge locator surfaces can be ground finished, and the top surface of the base plate can be machine finished as options.

【Accessories】Top Plates, Set Screws for Top Plate, Eye Bolts

* Custom-made products to suit your specifications are also available.

Download Catalogue
หมวดหมู่: ,

BASE ELEMENTS

SPECIFICATIONS

No. Base Overall height Width of
column		 Number of
Mounting
Holes		 Weight (Kg)
TOS04S-15050A 400 500 150.8 4 217
TOS04S-15050B 400 500 150.8 4 250
TOS04S-20050A 400 500 200.8 4 237
TOS04S-20050B 400 500 200.8 4 272
TOS04S-25050A 400 500 250.8 4 258
TOS04S-25050B 400 500 250.8 4 229
TOS04S-15060A 400 600 150.8 4 255
TOS04S-15060B 400 600 150.8 4 233
TOS04S-20060A 400 600 200.8 4 281
TOS04S-20060B 400 600 200.8 4 252
TOS04S-25060A 400 600 250.8 4 237
TOS04S-25060B 400 600 250.8 4 271
TOS04S-15070A 400 700 151 4 233
TOS04S-15070B 400 700 151 4 268
TOS04S-20070A 400 700 201 4 253
TOS04S-25070A 400 700 251 4 274
TOS05S-20060A 500 600 200.8 6 389
TOS05S-20060B 500 600 200.8 6 345
TOS05S-25060A 500 600 251 6 322
TOS05S-25060B 500 600 251 6 362
TOS05S-20070A 500 700 201 6 349
TOS05S-20070B 500 700 201 6 393
TOS05S-25070A 500 700 251 6 368
TOS05S-25070B 500 700 251 6 414
TOS05S-20080A 500 800 201 6 392
TOS05S-20080B 500 800 201 6 442
TOS05S-25080A 500 800 251 6 414
TOS05S-25080B 500 800 251 6 466
TOS05S-20090A 500 900 201 6 434
TOS05S-20090B 500 900 201 6 491
TOS05S-25090A 500 900 251 6 460
TOS05S-25090B 500 900 251 6 519
TOS06S-25070A 630 700 251 6 623
TOS06S-25070B 630 700 251 6 682
TOS06S-30070A 630 700 301 6 658
TOS06S-30070B 630 700 301 6 721
TOS06S-35070A 630 700 351 6 692
TOS06S-35070B 630 700 351 6 760
TOS06S-25080A 630 800 251 6 701
TOS06S-25080B 630 800 251 6 768
TOS06S-30080A 630 800 301 6 742
TOS06S-30080B 630 800 301 6 814
TOS06S-35080A 630 800 351 6 782
TOS06S-35080B 630 800 351 6 859
TOS06S-25090A 630 900 251 6 779
TOS06S-25090B 630 900 251 6 855
TOS06S-30090A 630 900 301 6 826
TOS06S-30090B 630 900 301 6 907
TOS06S-35090A 630 900 351 6 873
TOS06S-35090B 630 900 351 6 963
TOS06S-25100A 630 1000 251 6 857
TOS06S-25100B 630 1000 251 6 941
TOS06S-30100A 630 1000 301 6 910
TOS06S-30100B 630 1000 301 6 854
TOS06S-35100A 630 1000 351 6 967
TOS06S-35100B 630 1000 351 6 901
TOS08S-25080A 800 800 251 6 862
TOS08S-25080B 800 800 251 6 953
TOS08S-30080A 800 800 301 6 900
TOS08S-30080B 800 800 301 6 993
TOS08S-35080A 800 800 351 6 937
TOS08S-35080B 800 800 351 6 1033
TOS08S-40080A 800 800 401 6 978
TOS08S-40080B 800 800 401 6 1073
TOS08S-25090A 800 900 251 6 955
TOS08S-25090B 800 900 251 6 1053
TOS08S-30090A 800 900 301 6 999
TOS08S-30090B 800 900 301 6 1099
TOS08S-35090A 800 900 351 6 1042
TOS08S-35090B 800 900 351 6 1145
TOS08S-40090A 800 900 401 6 1086
TOS08S-40090B 800 900 401 6 1192
TOS08S-25100A 800 1000 251 6 1044
TOS08S-25100B 800 1000 251 6 1153
TOS08S-30100A 800 1000 301 6 1094
TOS08S-30100B 800 1000 301 6 1206
TOS08S-35100A 800 1000 351 6 1144
TOS08S-35100B 800 1000 351 6 1258
TOS08S-40100A 800 1000 401 6 1194
TOS08S-40100B 800 1000 401 6 1310
TOS08S-25120A 800 1200 251 6 1222
TOS08S-25120B 800 1200 251 6 1353
TOS08S-30120A 800 1200 301 6 1284
TOS08S-30120B 800 1200 301 6 1418
TOS08S-35120A 800 1200 351 6 1347
TOS08S-35120B 800 1200 351 6 1483
TOS08S-40120A 800 1200 401 6 1409
TOS08S-40120B 800 1200 401 6 1548



Optional Ground Finish and Machined Finish

No. L M
□400 0.01/500 0.01/300
□500(up to height 800) 0.01/500 0.01/300
□500(Height 900) 0.01/500 0.01/300
□630(up to height 800) 0.01/500 0.01/300
□630(height 900 or more) 0.01/500 0.01/300
□800 0.01/500 0.01/300
