ERON

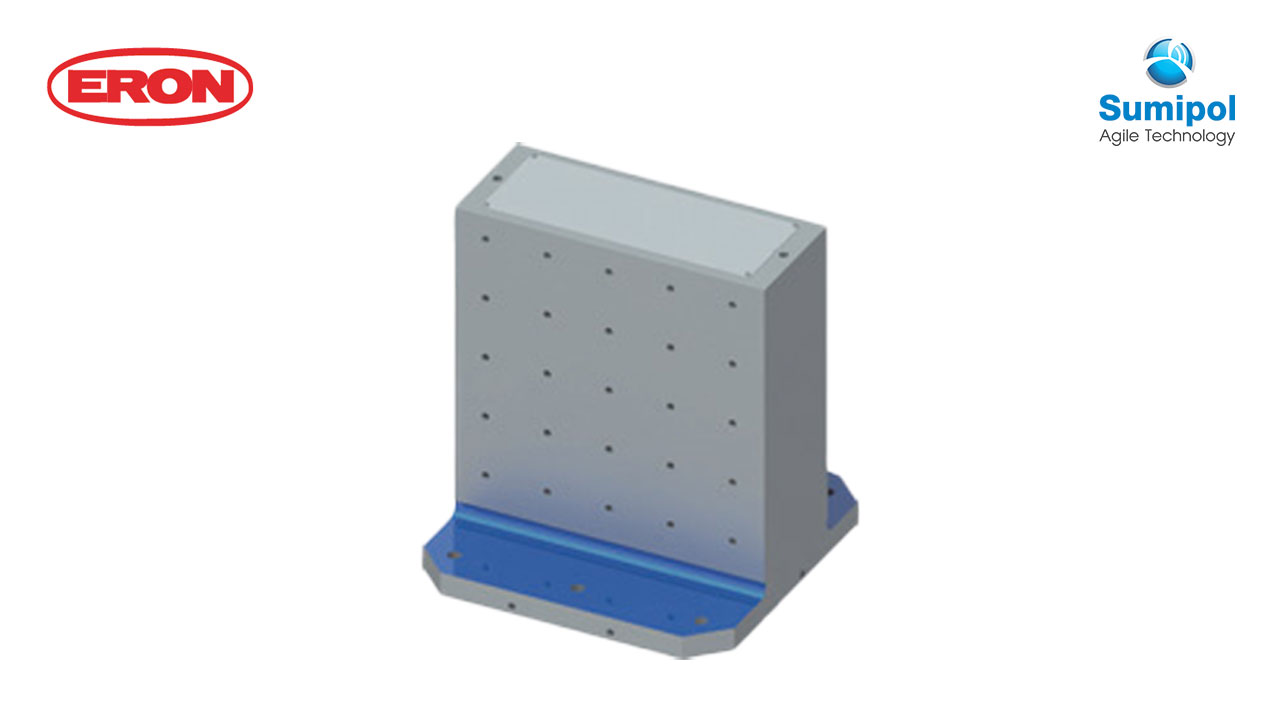

MC TOOLING BLOCKS (2 FACES/STANDARD TAPPED HOLES TYPE)
Material: FC25
Heat treatment: Annealing
Surface treatment: Painting (Cast Surface)
Feature
- Type with tapped holes in addition to the standard specifications.
- .4-.5mm of self-cut allowance is included on the used surface.
- The same accuracy as the machine you are using is possible from the self-cut.
- Bottom and 2 adjacent edge locator surfaces can be ground finish, and top surface of base plate can be machined finish as options.
【Accessories】Top Plates, Set Screws for Top Plate, Eye Bolts
* Custom-made products to suit your specifications are also available
SPECIFICATIONS
No. | Base | Overall height | Width of column |
Number of Mounting Holes |
Weight (kg) |
TPH04S-15035 | 400 | 350 | 150.8 | 4 | 152 |
TPH04S-20045 | 400 | 450 | 200.8 | 4 | 204 |
TPH04S-25050 | 400 | 500 | 250.8 | 4 | 242 |
TPH04S-15060 | 400 | 600 | 150.8 | 4 | 238 |
TPH05S-20050 | 500 | 500 | 200.8 | 4 | 286 |
TPH05S-25055 | 500 | 550 | 250.8 | 4 | 329 |
TPH05S-22060 | 500 | 600 | 220.8 | 4 | 341 |
TPH05S-25070 | 500 | 700 | 251 | 4 | 407 |
TPH06S-20060 | 630 | 600 | 200.8 | 6 | 437 |
TPH06S-25070 | 630 | 700 | 251 | 6 | 524 |
TPH06S-30070 | 630 | 700 | 301 | 6 | 551 |
TPH06S-25080 | 630 | 800 | 251 | 6 | 586 |
TPH08S-30080 | 800 | 800 | 301 | 6 | 783 |
TPH08S-40080 | 800 | 800 | 401 | 6 | 838 |
TPH08S-50090 | 800 | 900 | 501 | 6 | 995 |
Optional Ground Finish and Machined Finish
No. | K | L |
---|---|---|
□400 | 0.01/500 | 0.01/300 |
□500 | 0.01/500 | 0.01/300 |
□630 | 0.01/500 | 0.01/300 |
□800 | 0.01/500 | 0.01/300 |
