ERON

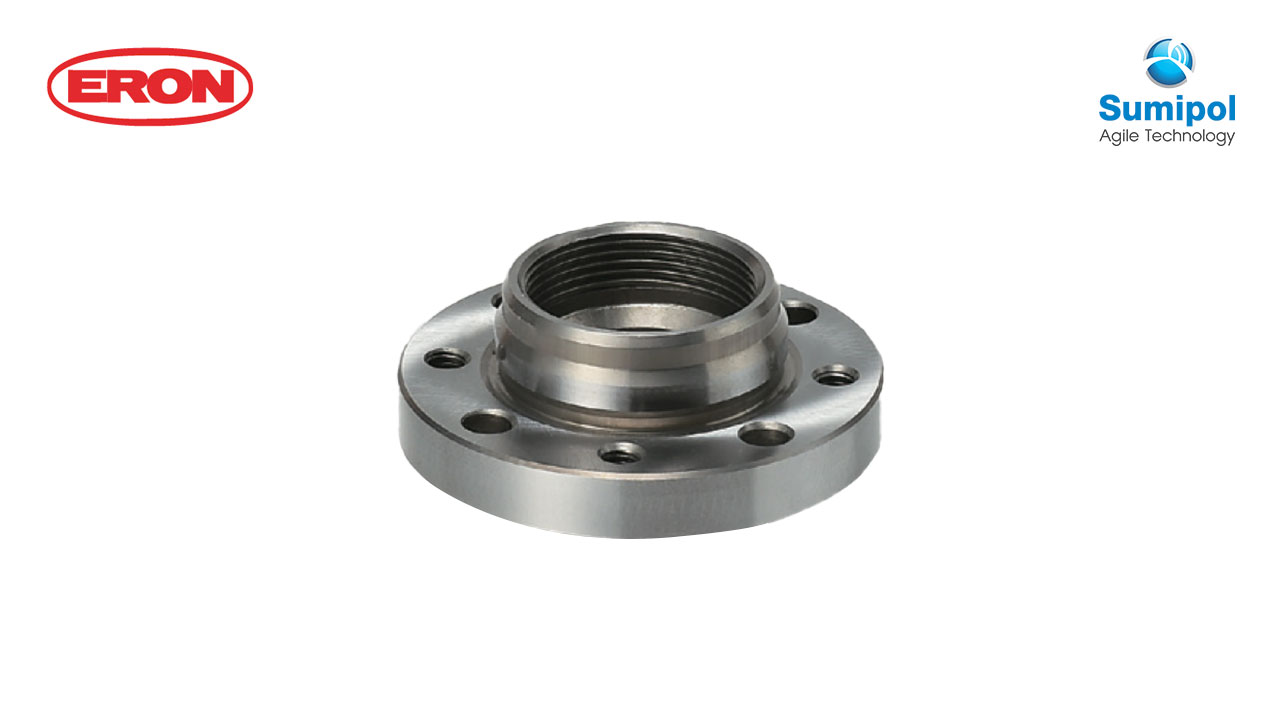

Q-LOCK ELEMENTS BUSHES (Pneumatic, Hydraulic)

Material: Crmo(SCM420)
Heat treatment: Hardened(HRC61)

Feature

  • Locating bushes must be used for locating and dia. pins.Clamping bushes only for clamping pins.
Download Catalogue
หมวดหมู่: ,

Usage

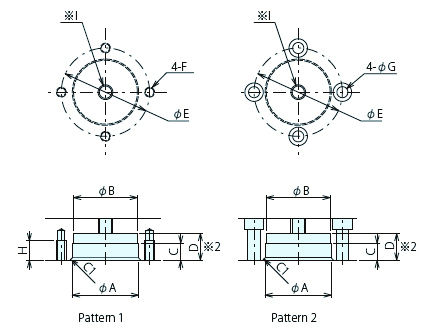

Dimensions of mounting process



№ A F6 B C D ±0.1 E F G H I
QLA19*B 27 26 6 10 36 M4 4.5 8 Rc1/16
QLA26*B 36 35 9 12 46 M5 6 10 Rc1/16
QLA32*B 45 44 11 14 58 M6 7 12 Rc1/8
QLA40*B 58 57 11 16.5 72 M6 7 12 Rc1/4
QLA48*B 70 69 12 19 87 M8 9 16 Rc1/4

SPECIFICATIONS

Type № Outer
Diameter		 Overall
diameter		 Inner
Diameter		 Weight
(g)
Locating bush QLA19RＢ 45 16 19 0.1
Locating bush QLA26RＢ 58 21 26 0.17
Locating bush QLA32RＢ 72 25 32 0.33
Locating bush QLA40RＢ 88 30.5 40 0.7
Locating bush QLA48RＢ 105 36 48 1.2
Clamping bush QLA19CＢ 45 16 18.5 0.1
Clamping bush QLA26CＢ 58 21 25.5 0.17
Clamping bush QLA32CＢ 72 25 31.5 0.33
Clamping bush QLA40CＢ 88 30.5 39.5 0.7
Clamping bush QLA48CＢ 105 36 47.5 1.2
