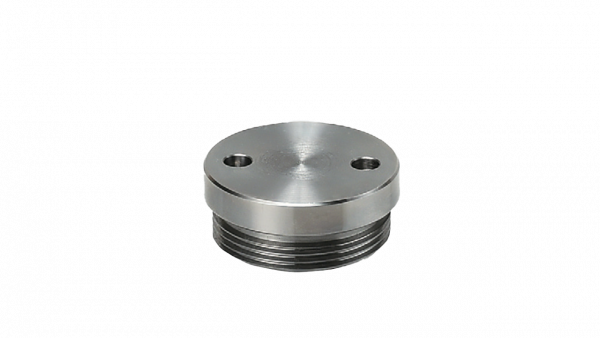

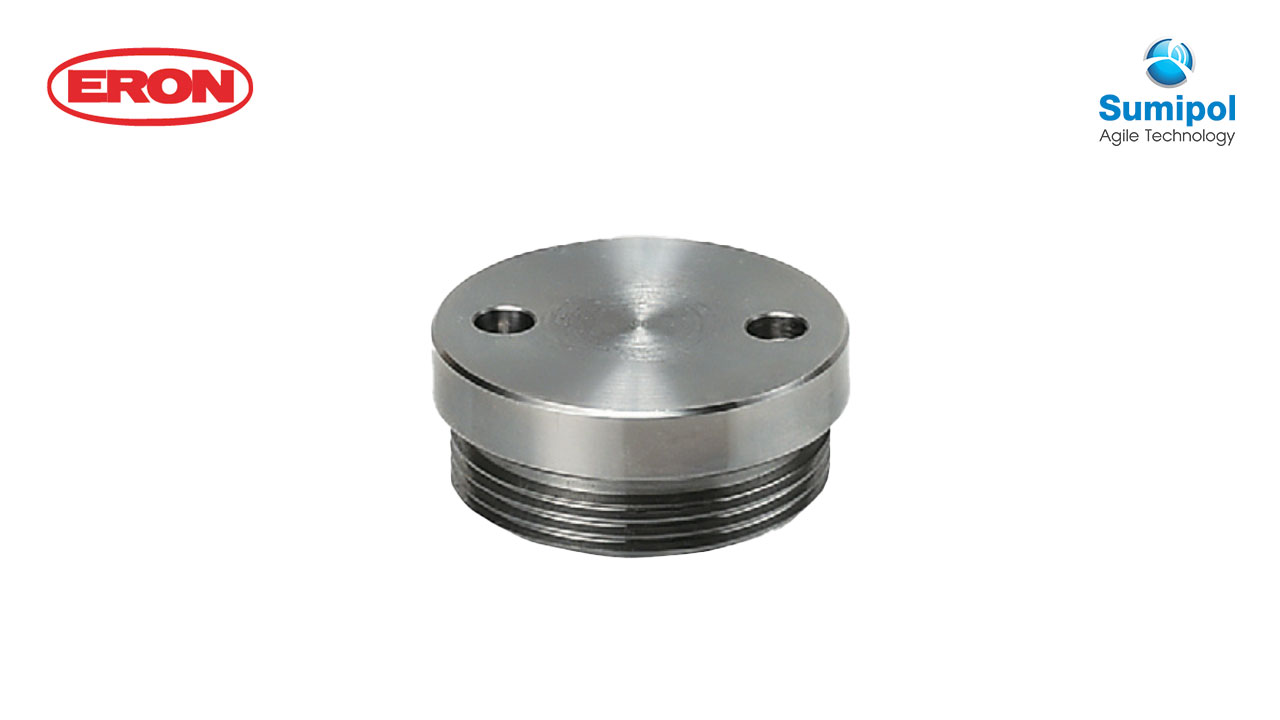

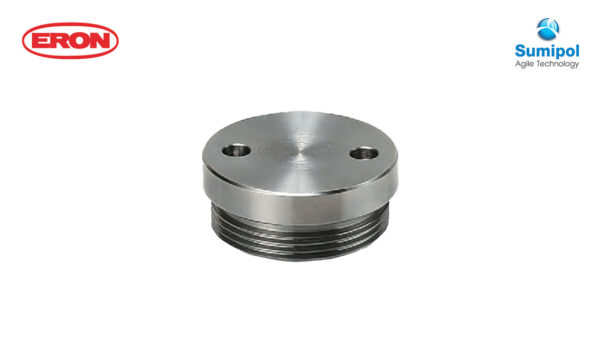

Q-LOCK ELEMENTS BUSH COVER (Pneumatic, Hydraulic)

Material: Medium carbon steel (S45C)

Feature

  • Helpful when jig plate is thinner, and mounting holes for standard bush become through.
Download Catalogue
หมวดหมู่: ,

Usage

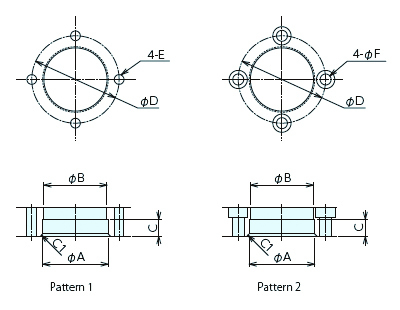

Dimensions of mounting process



№ AF6 B C D E F
QLA19BT 27 26 6 36 M4 4.5
QLA26BT 36 35 8 46 M5 5.5
QLA32BT 45 44 10 58 M6 6.5
QLA40BT 58 57 11 72 M6 7
QLA48BT 70 69 12 87 M8 9



SPECIFICATIONS

№ Inner
Diameter		 Overall
diameter		 Weight
(Kg)
QLA19BT 24 20.5 0.02
QLA26BT 33 25.5 0.03
QLA32BT 42.5 29.5 0.05
QLA40BT 55.5 35 0.1
QLA48BT 67 40.5 0.15
