ERON

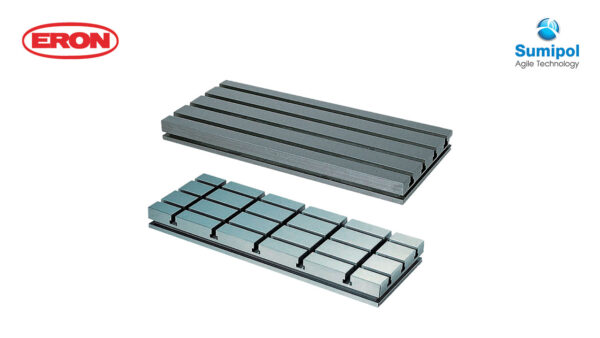

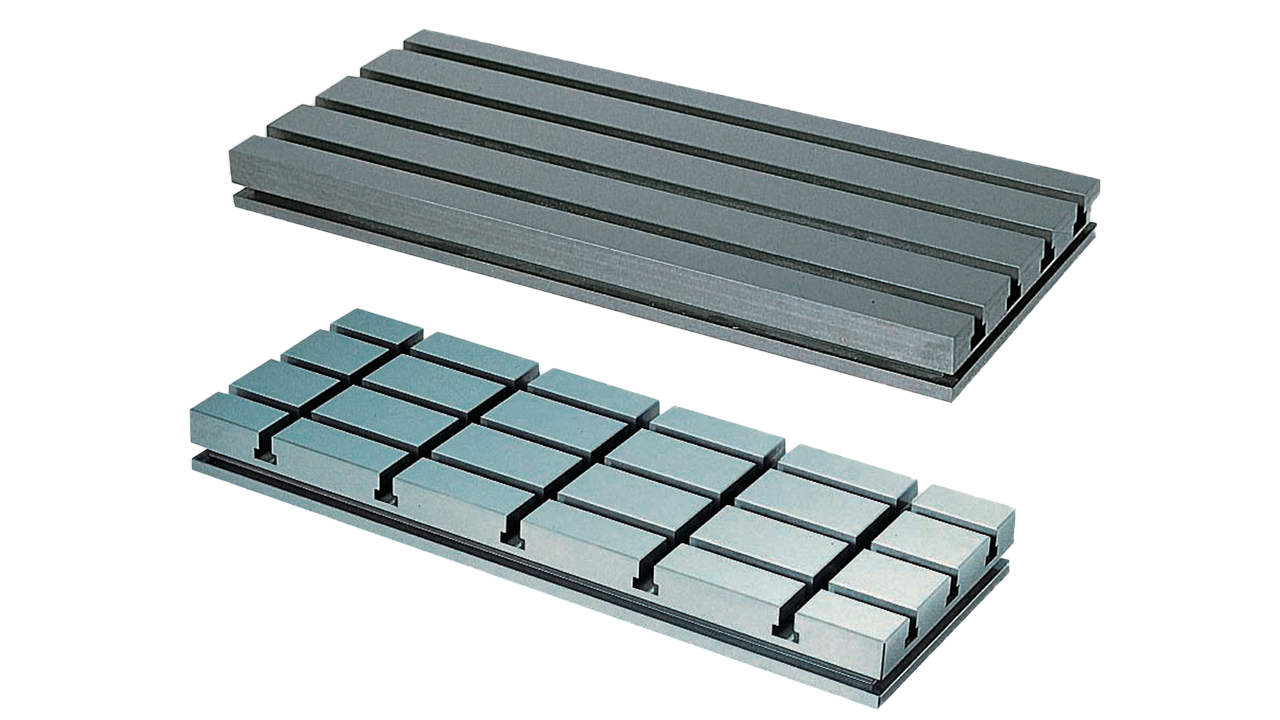

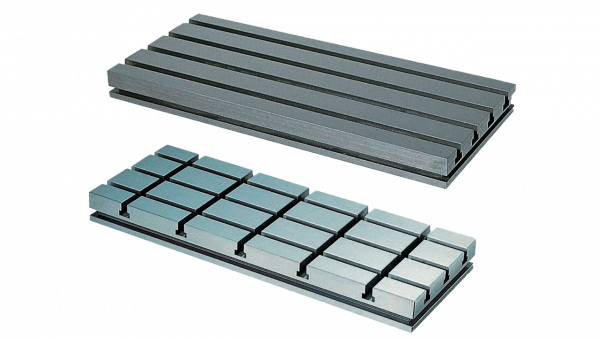

MC MACHINE SUB-PLATES

Material: FC25
Heat treatment: Annealing
Surface treatment: Painting (Cast Surface)

Feature

  • Uses high quality casting with full annealing.
  • Attaches to the machine table using grooves on the outer side face.
  • Machining of mounting holes at the top is also performed to suit the T-slot of the machine table.
  • Custom made products are also available.

BASE ELEMENTS


SPECIFICATIONS


No.Total lengthOverall widthThickNessNumber of T-slotssWeight(kg)
SBP054055040050365
SBP062660026050344
SBP0645600450754112
SBP0830800300753101
SBP0855800550755180
SBP0950900500755185
SBP0960900600905253
SBP10601000600955301
SBP12601200600955360
SBP13551300550955364
SBP15701500700955551



SPECIFICATIONS


No.Total lengthOverall widthThickNessNumber of T-slotssWeight(kg)
SBP0540T550400503×559
SBP0626T600260503×540
SBP0645T600450754×5100
SBP0830T800300753×595
SBP0855T800550755×5165
SBP0950T900500755×5172
SBP0960T900600905×5237
SBP1060T1000600955×5290
SBP1260T1200600955×5344
SBP1355T1300550955×5349
SBP1570T1500700955×5532
