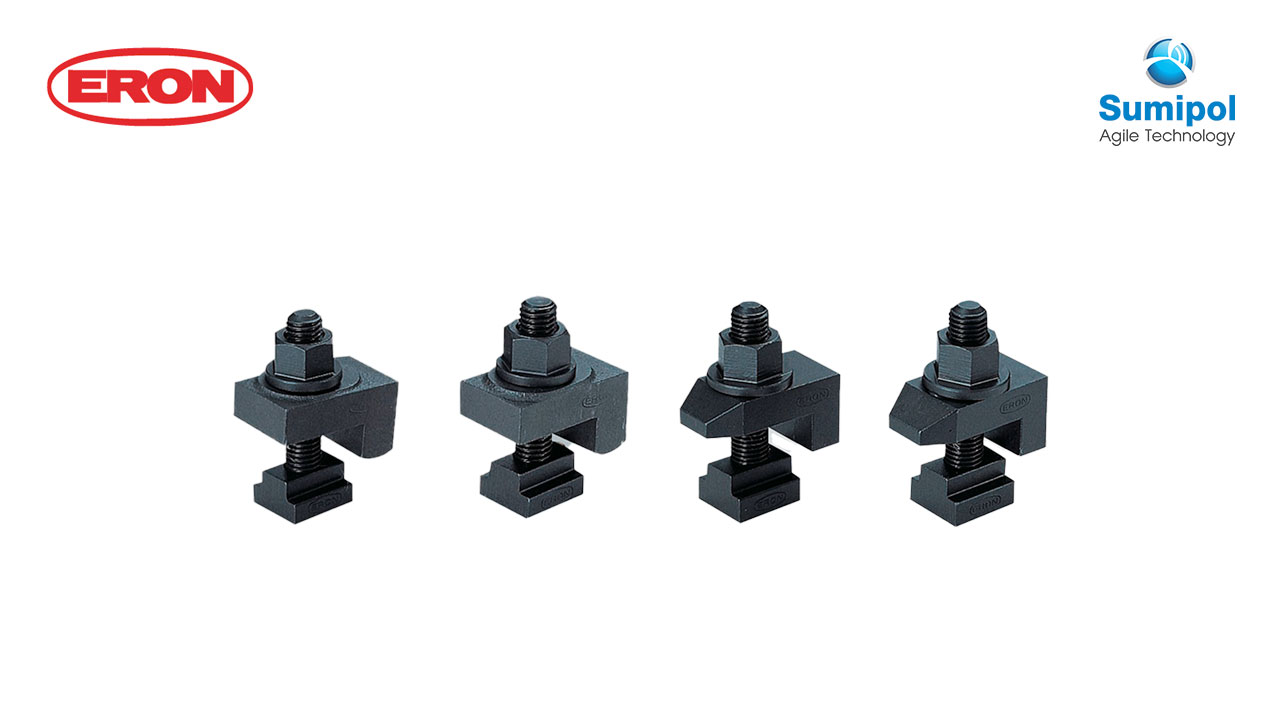

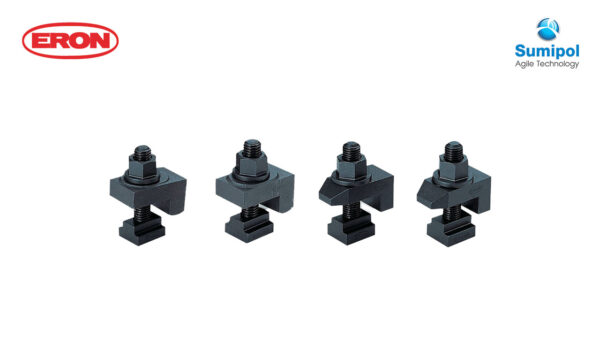

ERON
CLAMPING SETS
Material: S45C
HEAT TREATMENT
Surface treatment: BLACKENED
Feature
- Clamping sets for MC machine sub-plates.
SPECIFICATIONS
| No. | Compatible T-slot Width | Compatible Models |
Leg Clamps | T-Slot Nuts | Stud Bolts | Flanged Nuts |
| BCS14A | 14 | SBP0540 SBP0626(T) | LC12 | TNM1412 | BM01275 | FNM0012 |
| BCS16F | 16 | SBP0830(T) | LC14 | TNM1614 | BM01475 | FNM0014 |
| BCS18B | 18 | SBP0645 SBP0855 SBP0950(T) | LCMC161 | TNM1816 | BM16100 | FNM0016 |
| BCS18D | 18 | SBP0960 SBP1060 SBP1260 SBP1355 SBP1570(T) | LC16 | TNM1816 | BM16100 | FNM0016 |
