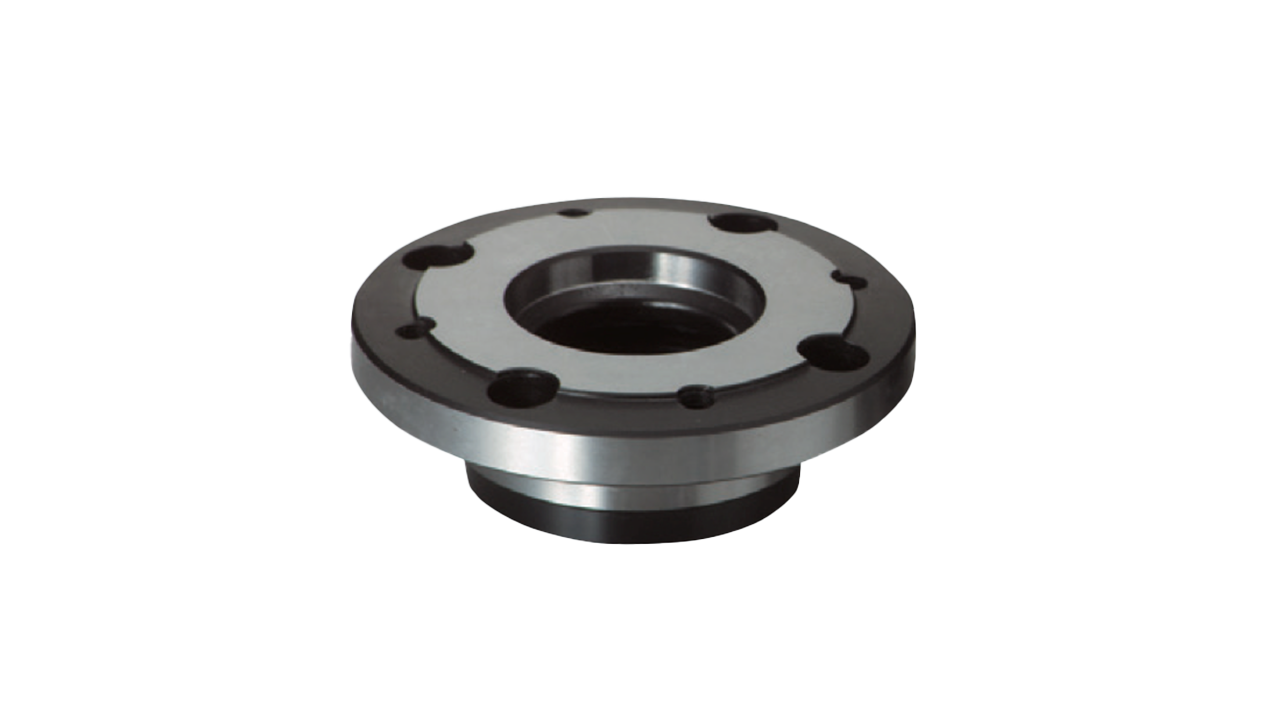

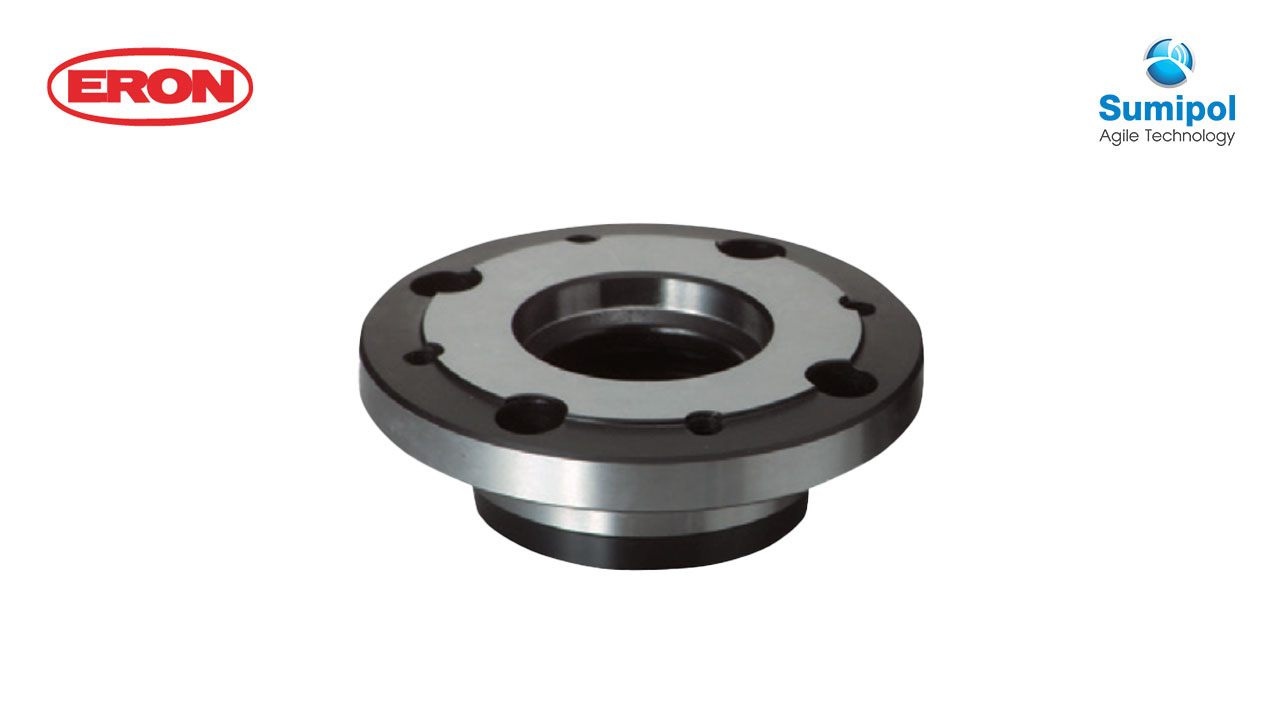

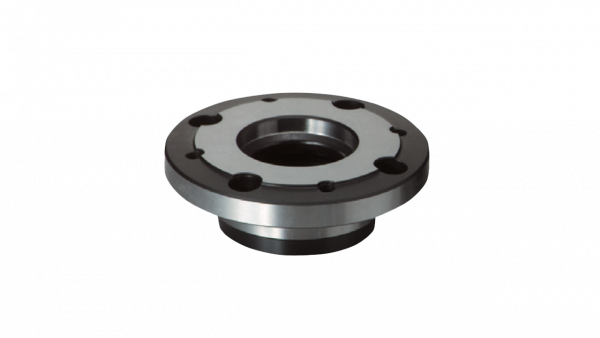

Q-LOCK ELEMENTS/BUSHES (HYDRAULIC TYPE)

Material

  • Main body：SCM42
  • Piston：SCM44
  • Steel balls：SUJ2

Heat treatment

  • Main body：HRC55 Heat treatment
  • Piston：HRC55 heat treatment
  • Steel balls：HRC62 heat treatment

Feature

  • Clamping by spring.
Order
Download Catalogue
หมวดหมู่: ,

Usage

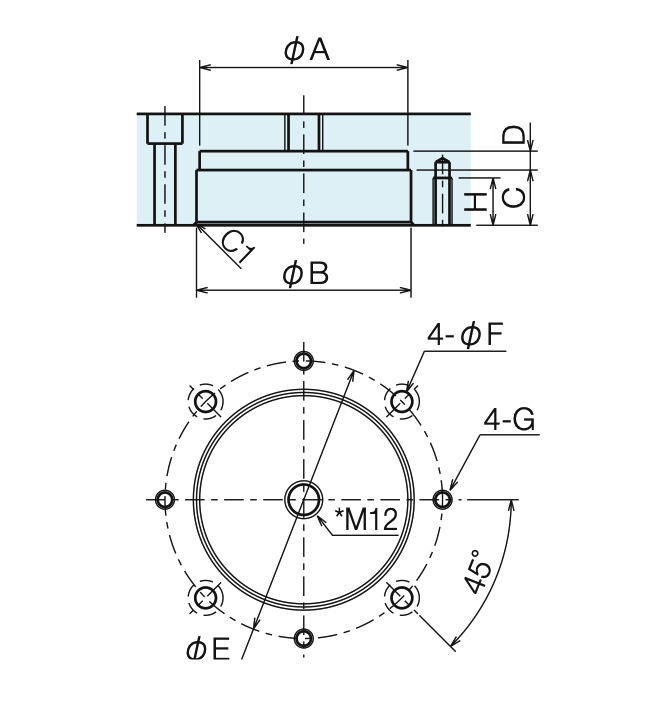

Mounting Dimensions
A B H7 C D E F G H
QL03 44.5 45 14 7 54 5.5 M5 13
QL07 57 58 14.5 6 72 6.6 M6 15
QL10 67 68 17.5 6 88 6.6 M6 15
QL16 81 82 21 7 100 9 M8 15
QL25 81 82 21 7 108 11 M10 20

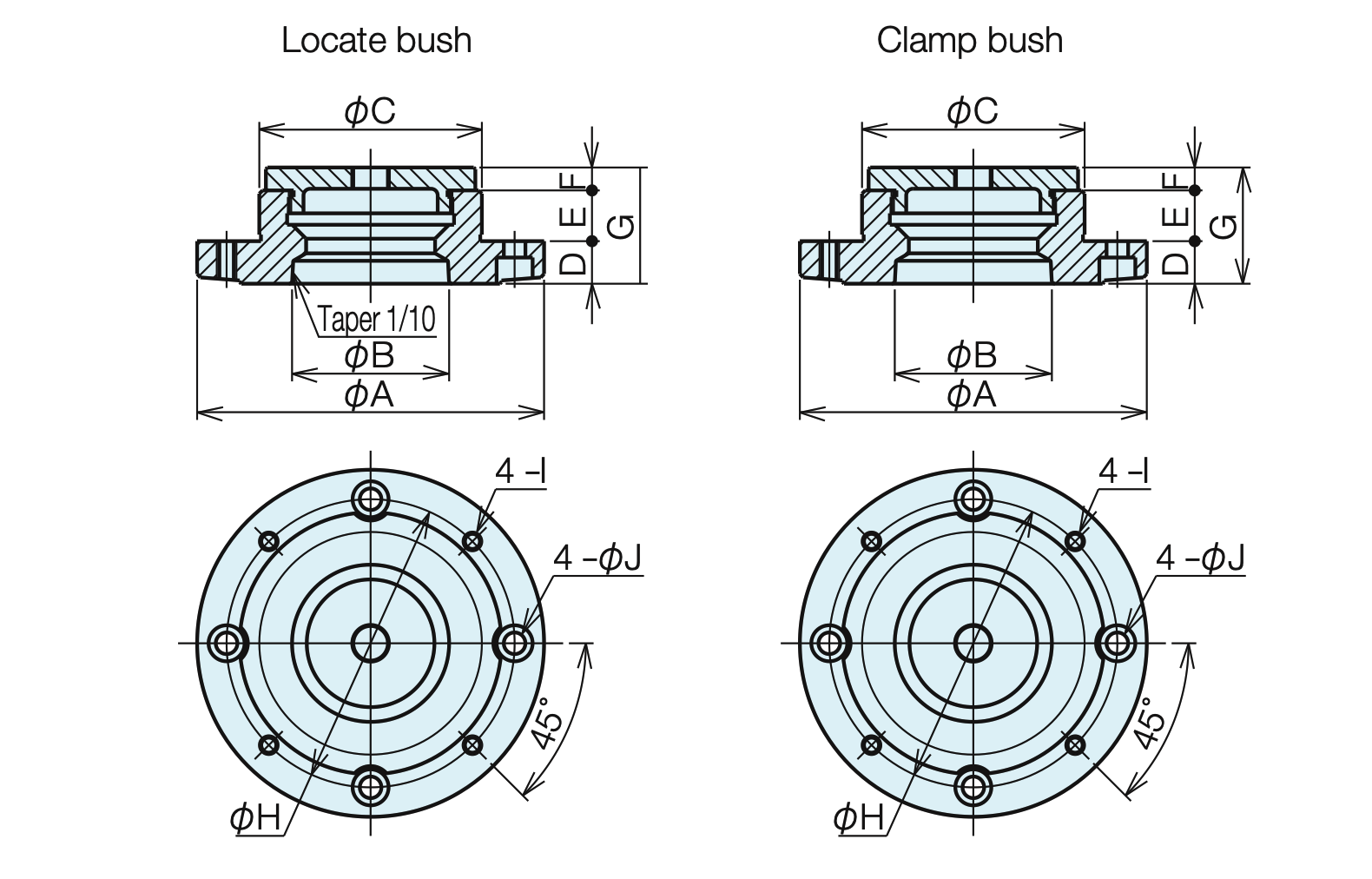

BUSH  SPECIFICATIONS

Type No. Outer Diameter Inner Diameter Overall Diameter Weight (kg)
Locating pin QL03RB 66 32 29.5 0.4
Locating pin QL07RB 90 40 30 0.8
Locating pin QL10RB 106 48 35.5 1.2
Locating pin QL16RB 120 55 41 1.8
Locating pin QL25RB 130 55 43 2.2
Clamp pin QL03CB 66 31.9 29.5 0.4
Clamp pin QL07CB 90 39.8 30 0.8
Clamp pin QL10CB 106 47.8 35.5 1.2
Clamp pin QL16CB 120 54.8 41 1.8
Clamp pin QL25CB 130 54.8 43 2.2
