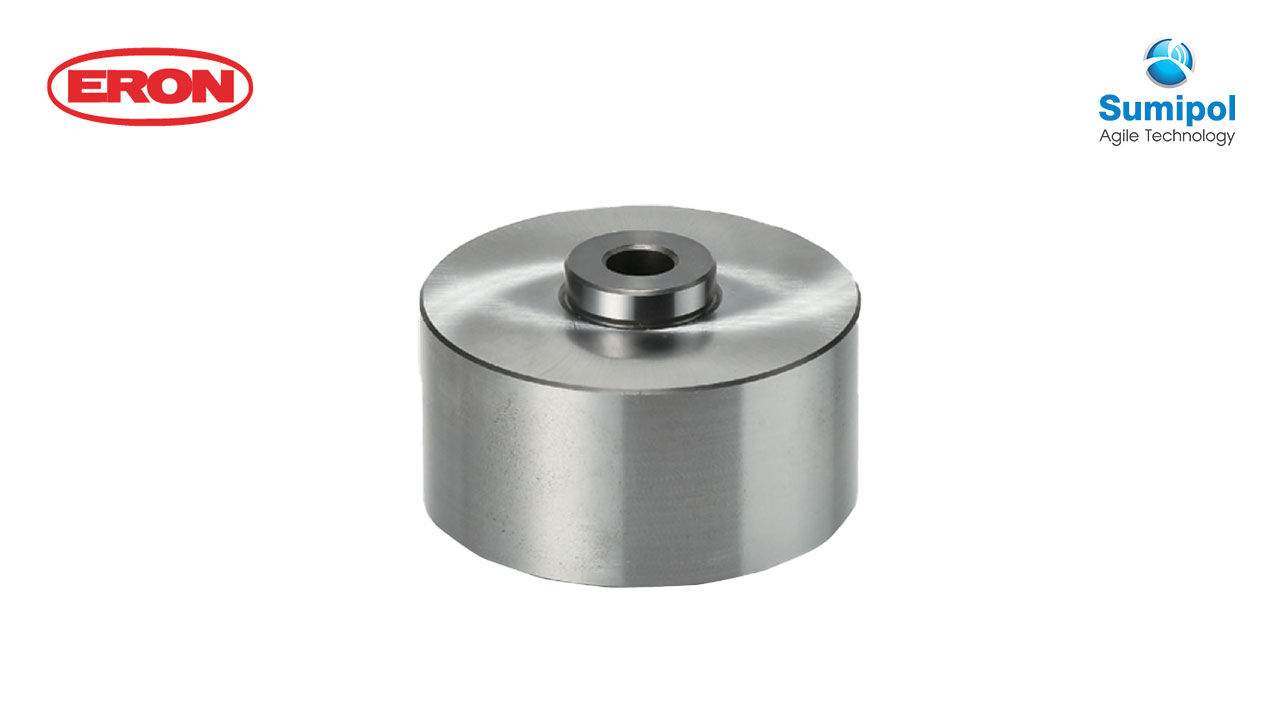

Q-LOCK ELEMENTS BUSHES (Rased Pneumatic, Hydraulic Type)

Material
Crmo(SCM440)

Heat treatment
Hardened(HRC55)

Feature

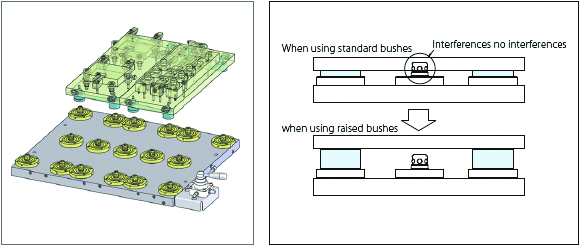

  • In case of multiple use of pneumatic type Q-lock elements, it is helpful to avoid interferences with pins.
  • Less mounting arrangement, so easier to make exchanged jigs.
Download Catalogue
หมวดหมู่: ,

Usage



Different sizes of jigs can be shared, and helpful to change sizes of workpieces, as well as production lot.



Dimensions of mounting process

No. A +0.010 B C
QLA19K 16 6 Ｍ6×depth12
QLA26K 20 6 Ｍ8×depth16
QLA32K 20 6 Ｍ10×depth20
QLA40K 25 6 Ｍ12×depth24
QLA48K 30 6 Ｍ16×depth32
Type № Outer
Diameter		 Inner
Diameter		 Overall
diameter		 Weight
(Kg)
Locating bush QLA19KRB 54 19 28 0.25
Locating bush QLA26KRB 46 26 35 0.6
Locating bush QLA32KRB 72 32 45 1.1
Locating bush QLA40KRB 88 40 55 2.1
Locating bush QLA48KRB 105 48 65 3.5
Clamping bush QLA19KCB 54 19.5 28 0.25
Clamping bush QLA26KCB 46 26.5 35 0.6
Clamping bush QLA32KCB 72 32.5 45 1.1
Clamping bush QLA40KCB 88 40.5 55 2.1
Clamping bush QLA48KCB 105 48.5 65 3.5
