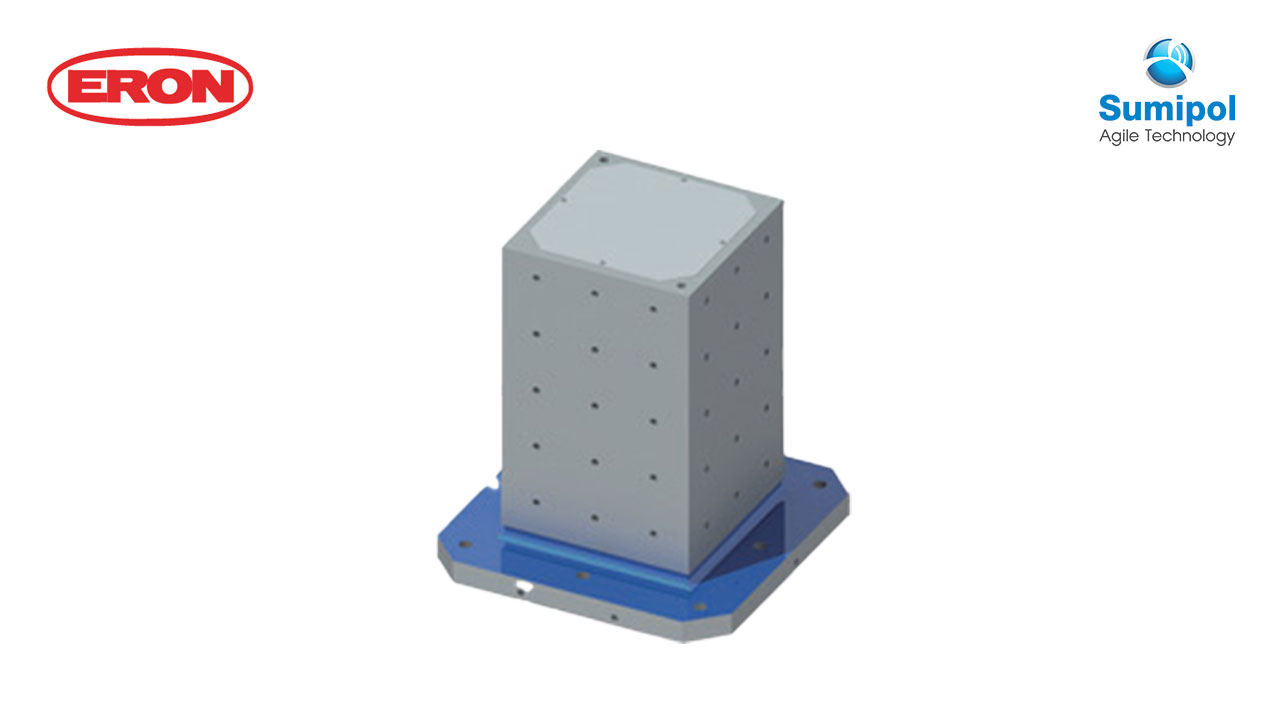

MC TOOLING BLOCKS (4 FACES/STANDARD TAPPED HOLES TYPE)

Material: FC25
Heat treatment: Annealing
Surface treatment: Painting (Cast Surface)

Feature

  • Type with T-slots and U-slots in addition to the standard specifications.
  • .4-.5mm of self-cut allowance is included on the used surface.
  • The same accuracy as the machine you are using is possible from the self-cut.
  • Bottom and 2 adjacent edge locator surfaces can be ground finish, and top surface of base plate can be machined finish as options.

【Accessories】Top Plates, Set Screws for Top Plate, Eye Bolts

* Custom-made products to suit your specifications are also available.

BASE ELEMENTS


SPECIFICATIONS


No.BaseOverall heightWidth of columnWeight (kg)
TPH04-20045400450200.8138
TPH04-25050400500250.8178
TPH04-20055400550200.8160
TPH04-25055400550250.8192
TPH04-25060400600250.8207
TPH05-25055500550250.8228
TPH05-30055500550300.8260
TPH05-35055500550350.8289
TPH05-30065500650300.8296
TPH05-25070500700251272
TPH06-30060630600300.8338
TPH06-45060630600450.8508
TPH06-40070630700401351
TPH06-30075630750301393
TPH06-45075630750451620
TPH08-40070800700401643
TPH08-50080800800501845
TPH08-550908009005511009



Optional Ground Finish and Machined Finish


KL
□4000.01/5000.01/300
□5000.01/5000.01/300
□6300.01/5000.01/300
□8000.01/5000.01/300
