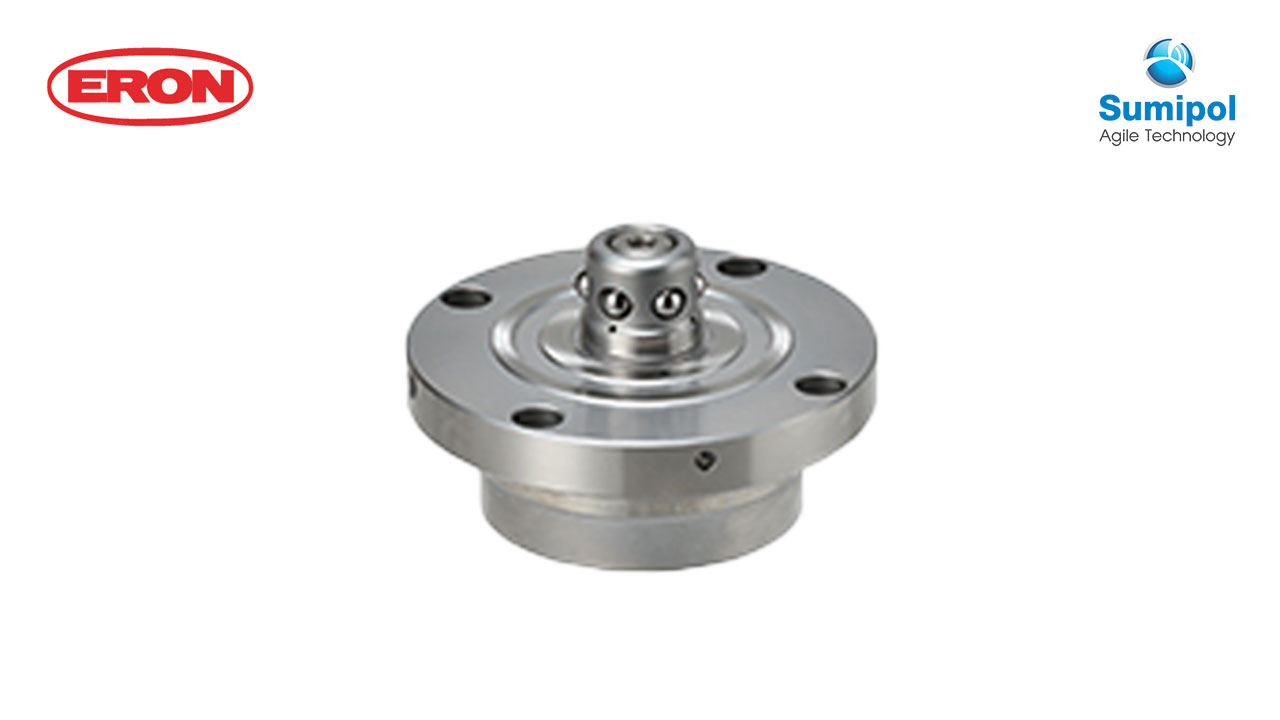

Q-LOCK ELEMENTS PINS (PNEUMATIC TYPE SINGLE ACTION)

Material Main body：SUS44C
Heat treatment Main body： HRC55 heat treatment

Feature

  • With air blow and mounting confirmation
  • Vertical MC for light cutting
  • Since a spring is used for clamping and air is used only for unclamping, pipes can be disconnected while machining.
  • A system can be built easily by using the air pipes within a factory.
หมวดหมู่: ,

SPECIFICATIONS

Type № OUTER DIAMETER PIN DIAMETER Overall diameter Weight(Kg)
LOCATING PIN QLA19SRP1 72 10 44 0.55
LOCATING PIN QLA26SRP1 79 12 53 0.71
LOCATING PIN QLA32SRP1 92 14 59 1.07
DIA. PIN QLA19SDP1 72 10 44 0.55
DIA. PIN QLA26SDP1 79 12 53 0.71
DIA. PIN QLA32SDP1 92 14 59 1.07
CLAMP PIN QLA19SCP1 72 10 44 0.55
CLAMP PIN QLA26SCP1 79 12 53 0.71
CLAMP PIN QLA32SCP1 92 14 59 1.07
